Topic # 190821 13-Jan-2016 19:06
Send private message

So, I have a mate who is based out North Christchurch in what would be classed as rural - North Loburn. His area is being targetted by Scorch Communications which appears a wireless internet provider so prior to making any decision about swapping he's keen to understand if he can look at his current line / setup to see about any improvement.  He's on a spark unlimited broadband plan but is constantly finding his plan to be fairly unuseable with constant page timeouts and very very very slow download speeds. His kids are going mad as their xbox 1 takes days to download a sizeable patch etc. Suffice to say, after about 6 months of accepting it he's keen to do something.  He's logged into his modem and sent me some of the following information.  I can't see anything dreadful re line attenuation ( thought it would be high) or noise but perhaps some of the smarter folks on here can point me ( and him ) towards any resolvable issues. Thanks for your advice

Modem is a Technicolor TG582n

Bandwith Up / Down [kbps]    864 / 7.552

Output Power Up / Down [dBm]    11,9 /  11,37

Line Attenuation Up / Down [dB]   9 / 16.5

SN Margin Up / Down   13 / 12,1



Filter this topic showing only the reply marked as answer Create new topic
5461 posts

Uber Geek
+1 received by user: 240

Trusted
Geekzone
Lifetime subscriber

  Reply # 1470276 13-Jan-2016 19:06
Send private message

Hello... Our robot found some keywords in your post, so here is an automated reply with some important things to note regarding broadband speeds.







If you are posting regarding DSL speeds please check that







- you have reset your modem and router






- your PC (or other PCs in your LAN) is not downloading large files when you are testing



- you are not being throttled by your ISP due to going over the monthly cap






- your tests are always done on an ethernet connection to the router - do not use wireless for testing






- you read this topic and follow the instructions there.







Make sure you provide information for other users to help you. If you have not already done it, please EDIT your post and add this now:







- Your ISP and plan






- Type of connection (ADSL, ADSL2, VDSL)






- Your modem DSL stats (do not worry about posting Speedtest, we need sync rate, attenuation and noise margin)






- Your general location (or street)






- If you are rural or urban






- If you know your connection is to an exchange, cabinet or conklin






- If your connection is to a ULL or wholesale service






- If you have done an isolation test as per the link above







Most of the problems with speed are likely to be related to internal wiring issues. Read this discussion to find out more about this. Your ISP is not intentionally slowing you down today (unless you are on a managed plan). Also if this is the school holidays it's likely you will notice slower than usual speed due to more users online.







A master splitter is required for VDSL2 and in most cases will improve speeds on DSL connections. Regular disconnections can be a monitored alarm or a set top box trying to connect. If there's an alarm connected to your line even if you don't have an alarm contract it may still try to connect so it's worth checking.







I recommend you read these two blog posts:







- Is your premises phone wiring impacting your broadband performance? (very technical)






- Are you receiving a substandard ULL ADSL2+ connection from your ISP?




I am the Geekzone Robot and I am here to help. I am from the Internet. I do not interact. Do not expect other replies from me.



20892 posts

Uber Geek
+1 received by user: 4100

Trusted
Subscriber

  Reply # 1470288 13-Jan-2016 19:12
Send private message

What does the chorus map say he should be getting?

Steve has said all there is on rural craptastic ADSL here - http://www.geekzone.co.nz/sbiddle/8780




Richard rich.ms







Try Wrike: fast, easy, and efficient project collaboration software


297 posts

Ultimate Geek
+1 received by user: 3


  Reply # 1470289 13-Jan-2016 19:14
Send private message

Hi Richard.



Will check and thx for the link. Good read

412 posts

Ultimate Geek
+1 received by user: 100


  Reply # 1470291 13-Jan-2016 19:17
Send private message

snip....
Modem is a Technicolor TG582n

Bandwith Up / Down [kbps]    864 / 7.552

Output Power Up / Down [dBm]    11,9 /  11,37

Line Attenuation Up / Down [dB]   9 / 16.5

SN Margin Up / Down   13 / 12,1




7.552 kbps !!!!!!! there is your problem....

Guessing you mean 7552 kbps or 7.552 mbps




 The views expressed by me are not necessarily those of my employer


26202 posts

Uber Geek
+1 received by user: 5799

Moderator
Trusted
Biddle Corp
Lifetime subscriber

  Reply # 1470296 13-Jan-2016 19:20
Send private message

What does the Chorus coverage map say they should be getting?





297 posts

Ultimate Geek
+1 received by user: 3


  Reply # 1470309 13-Jan-2016 19:34
Send private message

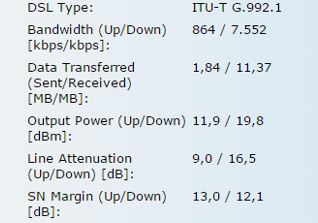

Hi Hyperman. I thought that too but no...See attached screenshot I've snipped some data from

Click to see full size

7409 posts

Uber Geek
+1 received by user: 2370

Subscriber

  Reply # 1470311 13-Jan-2016 19:37
Send private message

pretty sure thats ADSL1



297 posts

Ultimate Geek
+1 received by user: 3


  Reply # 1470312 13-Jan-2016 19:37
Send private message

Chorus map coverage shows broadband great than 5 Mbps

Click to see full size

'That VDSL Cat'
7517 posts

Uber Geek
+1 received by user: 1492

Trusted
Spark
Subscriber

  Reply # 1470370 13-Jan-2016 21:09
One person supports this post
Send private message

Your friend is syncing at G.DMT (G.992.1) thats adsl1 so the speed sounds about right. based off your friends comments, sounds much like a conklin situation.


on the map your looking at LBN/BP shows as providing VDSL, however this conflicts with chorus's non public facing maps.


im having to take a bit ofa guess at your friends location here, but assuming he is above where Bradys road meets loburn terrace, hes fed off LBN/BP Otherwise its LBN/BA - ild double check exactly which cabinet, there is a slight bit of overlap in the overlays just below there for both cabinets.

Looks as though LBN/BP is still in progress of being upgraded, assuming your friend is served off this he should jump to around about a good 14/1 once completed all things being right, just shy of the serving range of VDSL.

As far as i can see LBN/BA is not planned to be upgraded currently.




#include <std_disclaimer>



Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.




297 posts

Ultimate Geek
+1 received by user: 3


  Reply # 1470418 13-Jan-2016 21:59
Send private message

He's pretty close to brady's road and loburn terrace road intersection if that helps to narrow the cabinet down.

Apologies for maybe a daft question but what are LBN/BP and LBN/BA.

I'm guessing from your comments re upgradability of the infrastructure that schorch may well be the only way to go for increased download speed

Thanks again

3526 posts

Uber Geek
+1 received by user: 699


  Reply # 1470427 13-Jan-2016 22:06
One person supports this post
Send private message

The LBN codes are the names of the Chorus cabinets. He will most likely be connected to one or the other.
And yes, it looks like he's on ADSL1 - if so, that's about the peak speed he will get (assuming his cabinet is not being upgraded).

'That VDSL Cat'
7517 posts

Uber Geek
+1 received by user: 1492

Trusted
Spark
Subscriber

  Reply # 1470457 13-Jan-2016 22:43
Send private message

gedc: He's pretty close to brady's road and loburn terrace road intersection if that helps to narrow the cabinet down.

Apologies for maybe a daft question but what are LBN/BP and LBN/BA.

I'm guessing from your comments re upgradability of the infrastructure that schorch may well be the only way to go for increased download speed

Thanks again




Okay, lets look at it this way.

Here is a detailed map, you can see the overlapping section i mentioned drawn on. Which side of the lines does your friend land on?




#include <std_disclaimer>



Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.




297 posts

Ultimate Geek
+1 received by user: 3


  Reply # 1470469 13-Jan-2016 23:13
Send private message

Put a pin in the map on the Brady's Road / Loburn Terrace Road intersection. He's on the corner  of those two roads basically so looks like BP cabinet

'That VDSL Cat'
7517 posts

Uber Geek
+1 received by user: 1492

Trusted
Spark
Subscriber

  Reply # 1470475 13-Jan-2016 23:22
Send private message

gedc: Put a pin in the map on the Brady's Road / Loburn Terrace Road intersection. He's on the corner  of those two roads basically so looks like BP cabinet


right, in that case ild say the maps are slightly off with where "addresses" actually at there.

your friend should be on LBN/BP and should wait for that cabinet to be finished being upgraded, its scheduled currently to be done by about June 2016. Although likely be reasonably faster.


Given the distance assuming shortest run, and the line attenuation, that makes sense too.




#include <std_disclaimer>



Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.




297 posts

Ultimate Geek
+1 received by user: 3


  Reply # 1470479 13-Jan-2016 23:33
Send private message

Sweet. Thanks heaps for that and all the advice. Will let him know to hang on in there for a few more months at least :)
