Forums › Microsoft Windows › Windows Home Server (WHS) system taking nearly half the storage?
lyonrouge

1993 posts

Uber Geek
+1 received by user: 20

Trusted
Lifetime subscriber

#69900 15-Oct-2010 08:55
Send private message

I trial loaded and now reloaded WHS server. I have two drives 80GB and 2TB. In the first trial I had only the 80GB and the system took up 20GB, now with the second drive the system has decided to take 859 GB!?!?

View this topic in a long page with up to 500 replies per page Create new topic
 1 | 2 | 3
Nety
2584 posts

Uber Geek
+1 received by user: 5

Retired Mod
Trusted
Lifetime subscriber

  #392137 15-Oct-2010 10:32
Send private message

Have you logged into the desktop (using RDP) and had a look at what is really being used? Certainly the system will never take up that much room so I think the used space is being reported incorrectly.







Media centre PC - Case Silverstone LC16M with 2 X 80mm AcoustiFan DustPROOF, MOBO Gigabyte MA785GT-UD3H, CPU AMD X2 240 under volted, RAM 4 Gig DDR3 1033, HDD 120Gig System/512Gig data, Tuners 2 X Hauppauge HVR-3000, 1 X HVR-2200, Video Palit GT 220, Sound Realtek 886A HD (onboard), Optical LiteOn DH-401S Blue-ray using TotalMedia Theatre Power Corsair VX Series, 450W ATX PSU OS Windows 7 x64



freitasm
BDFL - Memuneh
80652 posts

Uber Geek
+1 received by user: 41042

Administrator
ID Verified
Trusted
Geekzone
Lifetime subscriber

  #392150 15-Oct-2010 10:50
Send private message

Let the system do its "balancng" for another day. "System" is not only the 20GB storage on the first drive, but also all the duplication information (tombstones, etc) and other management storage.

In my case System is using 61GB.

You only have one large drive and the system drive. In your case I suggest you turn duplication off for all folders. Realistically you can only have up to 40GB duplicated because that's the maximum in common between both your drives. Everything else is really stored in the large drive twice.

It means you have slow performance (double writing everything on the same drive) and no redundancy at all.

Also removing the duplication will probably adjust the "System" usage and after some balancing it will bring it to normal levels.

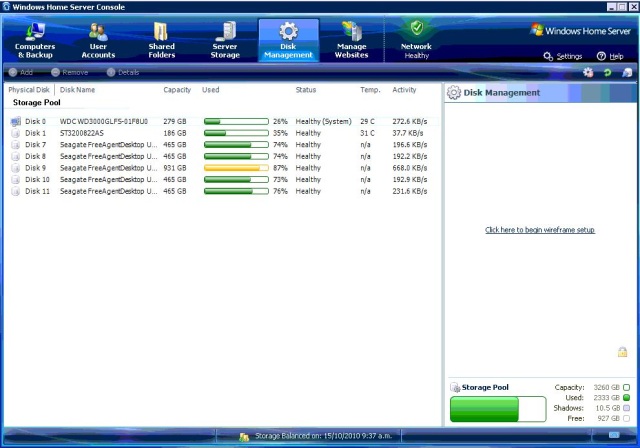

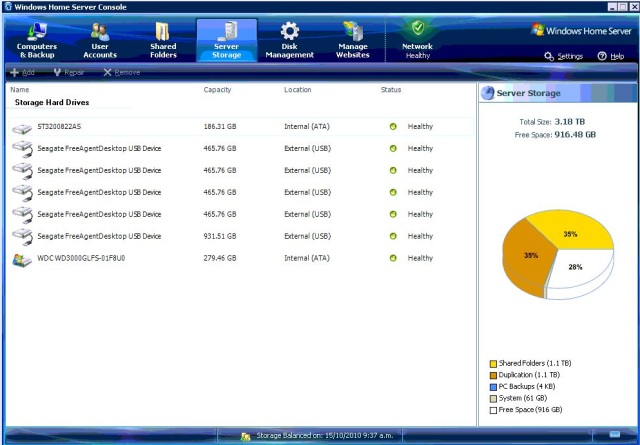

Here are my screenshots:




Referral links: Quic Broadband (free setup code: R587125ERQ6VE) | Samsung | AliExpress | Wise | Sharesies



Support Geekzone by subscribing (browse ads-free), or making a one-off or recurring donation through PressPatron.



lyonrouge

1993 posts

Uber Geek
+1 received by user: 20

Trusted
Lifetime subscriber

  #392164 15-Oct-2010 11:19
Send private message

so if I installed another 2TB it would build an equivalent 1+1 RAID behavior (without striped read I assume)?



freitasm
BDFL - Memuneh
80652 posts

Uber Geek
+1 received by user: 41042

Administrator
ID Verified
Trusted
Geekzone
Lifetime subscriber

  #392165 15-Oct-2010 11:20
Send private message

http://en.wikipedia.org/wiki/RAID_1#RAID_1




Referral links: Quic Broadband (free setup code: R587125ERQ6VE) | Samsung | AliExpress | Wise | Sharesies



Support Geekzone by subscribing (browse ads-free), or making a one-off or recurring donation through PressPatron.



lyonrouge

1993 posts

Uber Geek
+1 received by user: 20

Trusted
Lifetime subscriber

  #392168 15-Oct-2010 11:28
Send private message

so in WHS, do you get the improved read performance by reading from both drives?

freitasm
BDFL - Memuneh
80652 posts

Uber Geek
+1 received by user: 41042

Administrator
ID Verified
Trusted
Geekzone
Lifetime subscriber

  #392169 15-Oct-2010 11:30
Send private message

I wouldn't worry about "improved read performance". Your network is more likely to limit the transfer speeds between PCs anyway.





Referral links: Quic Broadband (free setup code: R587125ERQ6VE) | Samsung | AliExpress | Wise | Sharesies



Support Geekzone by subscribing (browse ads-free), or making a one-off or recurring donation through PressPatron.








Shop now on AliExpress (affiliate link).
lyonrouge

1993 posts

Uber Geek
+1 received by user: 20

Trusted
Lifetime subscriber

  #392172 15-Oct-2010 11:35
Send private message

so very true

lyonrouge

1993 posts

Uber Geek
+1 received by user: 20

Trusted
Lifetime subscriber

  #392273 15-Oct-2010 15:02
Send private message

Duplication is configured at a directory level, which is nice, so I have removed duplication for non-essential and duplication only for essential, family photos, etc. I hope that when the next rebalance occures it will be all good.

Nety
2584 posts

Uber Geek
+1 received by user: 5

Retired Mod
Trusted
Lifetime subscriber

  #392276 15-Oct-2010 15:06
Send private message

lyonrouge: so if I installed another 2TB it would build an equivalent 1+1 RAID behavior (without striped read I assume)?


From Microsoft's FAQ

Does Windows Home Server support RAID?

Windows Home Server offers the benefits of RAID, without the complexity. New hard drives of any size, either internal or external, can be added to Windows Home Server and the amount of available storage grows based on the size of the hard disk. On a system with two or more hard drives, Windows Home Server users can enable "duplication" on a shared folder basis and files are copied or "mirrored" on two separate hard drives. If a single hard drive fails, then a user will not lose any files in any folder that has "duplication" enabled. External hard drives can be added via USB, Firewire, or eSATA, provided the Windows Home Server has the appropriate hardware inputs.







Media centre PC - Case Silverstone LC16M with 2 X 80mm AcoustiFan DustPROOF, MOBO Gigabyte MA785GT-UD3H, CPU AMD X2 240 under volted, RAM 4 Gig DDR3 1033, HDD 120Gig System/512Gig data, Tuners 2 X Hauppauge HVR-3000, 1 X HVR-2200, Video Palit GT 220, Sound Realtek 886A HD (onboard), Optical LiteOn DH-401S Blue-ray using TotalMedia Theatre Power Corsair VX Series, 450W ATX PSU OS Windows 7 x64

TwoSeven
1712 posts

Uber Geek
+1 received by user: 304

Subscriber

  #392374 15-Oct-2010 19:53
Send private message

Out of interest I think it requires 160gb, so it could have used a percentage of the first disk as the OS, another percentage as storage and a bit more for shadow copy which in vail I think is on by default.




Software Engineer
   (the practice of real science, engineering and management)
A.I.  (Automation rebranded)
Gender Neutral
   (a person who believes in equality and who does not believe in/use stereotypes. Examples such as gender, binary, nonbinary, male/female etc.)



 ...they/their/them...

lyonrouge

1993 posts

Uber Geek
+1 received by user: 20

Trusted
Lifetime subscriber

  #392378 15-Oct-2010 20:12
Send private message

WHS (in my limited experience) is fixed to 20GB for system, this can not be changed during installation (I've read a few forums where people have tried after with limited success). WHS writes to the second drive (if you have one) first, before writing to the remainder on the system drive.






Support Geekzone with one-off or recurring donations Donate via PressPatron.
freitasm
BDFL - Memuneh
80652 posts

Uber Geek
+1 received by user: 41042

Administrator
ID Verified
Trusted
Geekzone
Lifetime subscriber

  #392384 15-Oct-2010 20:21
Send private message

Correct. This is valid for Windows Home Server v1 up to Power Pack 3.






Referral links: Quic Broadband (free setup code: R587125ERQ6VE) | Samsung | AliExpress | Wise | Sharesies



Support Geekzone by subscribing (browse ads-free), or making a one-off or recurring donation through PressPatron.



lyonrouge

1993 posts

Uber Geek
+1 received by user: 20

Trusted
Lifetime subscriber

  #392489 16-Oct-2010 09:06
Send private message

Can WHS be multihomed?

freitasm
BDFL - Memuneh
80652 posts

Uber Geek
+1 received by user: 41042

Administrator
ID Verified
Trusted
Geekzone
Lifetime subscriber

  #392490 16-Oct-2010 09:07
Send private message

What do you want to do with that?




Referral links: Quic Broadband (free setup code: R587125ERQ6VE) | Samsung | AliExpress | Wise | Sharesies



Support Geekzone by subscribing (browse ads-free), or making a one-off or recurring donation through PressPatron.



lyonrouge

1993 posts

Uber Geek
+1 received by user: 20

Trusted
Lifetime subscriber

  #392496 16-Oct-2010 09:45
Send private message

instead of having two boxes, I was considering installing ISA on the same box.
