VDSL Performance & Tuning

Forums › New Zealand Broadband › VDSL Performance & Tuning

1 | ... | 117 | 118 | 119 | 120 | 121 | 122 | 123 | 124 | 125 | 126 | 127 | ... | 285

3775 posts

Uber Geek
+1 received by user: 1295

Trusted

#853921 11-Jul-2013 14:45

@jaxta67: Do you have a master filter installed? How many telephone jackpoints are there in your house? What do you have plugged into them? Any alarm, monitored or otherwise?

"I was born not knowing and have had only a little time to change that here and there." | Octopus Energy | Sharesies
- Richard Feynman

jaxta67

26 posts

Geek

#853946 11-Jul-2013 15:24

@sidefx: Hi, at this time there is no master filter installed (although that will be installed next week). I have 2 jackpoints installed. 1)To run the adsl connection 2) to run the phone line. Both lines are fitted with micro filters which I have replaced several times over the past few years. As for any other devices I have none connected to the phone jacks and my alarm has not been operational for the past 3 years, the unit has been removed. Thanks for you're early reply.

SamF

1598 posts

Uber Geek
+1 received by user: 252

Trusted

#853948 11-Jul-2013 15:28

@jaxta67: Welcome to the thread & welcome to GeekZone! Are you able to post a screenshot of your stats? Unfortunately they came through a bit jumbled in your initial post (an annoying habit of the GeekZone posting system!)

jaxta67

26 posts

Geek

#853949 11-Jul-2013 15:31

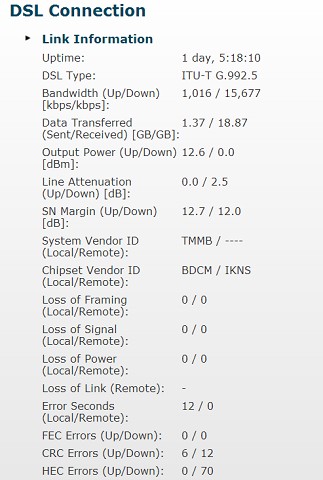

@SamF: Sure. Here a snippet image from the router

SamF

1598 posts

Uber Geek
+1 received by user: 252

Trusted

#853951 11-Jul-2013 15:37

Much better! :)

Wow, yes, your attenuation is very good! For some reason I have found that on a lot of lines, 16mbit seems to be the maximum achievable speed. However, once your VDSL splitter goes in you are still setup for a very good VDSL connection - probably a 17a profile eventually!

HowickDota

427 posts

Ultimate Geek
+1 received by user: 72

#853954 11-Jul-2013 15:41

2.5db attenuation down is quite exceptional, if that reported figure is accurate.

I had the same attenuation on ADSL2+ and was syncing at around 20mbit down, so there may be a wiring issue there, however I think if you're with telecom VDSL they are doing free splitter installs now?

For comparision when I moved to VDSL2 I sycned at 50mbit down on the 8b profile and when I was moved to the 17a profile 6 months later or so (from having a period of very low errors I believe) I attained 63mbit down.

I think you will be quite pleased with your VDSL speeds, although it can be quite an unpredictable beast so we will wait to see.

Geekzone support

Support Geekzone with one-off or recurring donations Donate via PressPatron.

SamF

1598 posts

Uber Geek
+1 received by user: 252

Trusted

#853957 11-Jul-2013 15:44

Snap are also doing free wiring & splitter installs now as well I believe.

HowickDota

427 posts

Ultimate Geek
+1 received by user: 72

#853960 11-Jul-2013 15:50

Yeah it's great to see, I can probably convince a couple of mates to get VDSL now who where initially put off by the monthly and install costs.

jaxta67

26 posts

Geek

#853961 11-Jul-2013 15:50

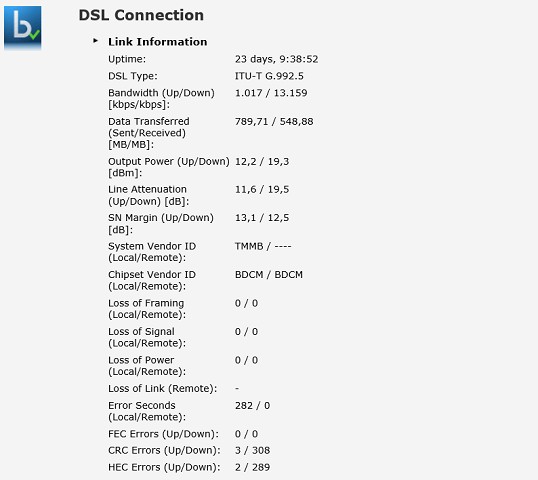

Here is a connection from a friend based in wellington. His attenuation is much higher but in sync speed tests we see that our connection seems very similar. I'm trying to figure out if there is anything interrupting the line. If you can figure out anything more provided this new information it would be much appreciated. Thanks

sidefx

3775 posts

Uber Geek
+1 received by user: 1295

Trusted

#853962 11-Jul-2013 15:52

I would see how you go after the master splitter is installed. 2 jackpoints probably isn't having a huge effect; but if you've also had an alarm in the past that's another unterminated stub and who knows what else. The master splitter should remove all of that so is a good starting point.

EDIT: If you feel like DIYing something in the mean time to test this, post pictures of the inside of your ETP, first jackpoint and where the alarm used to be wired up. Someone here might be able to help you to connect your incoming pair direct to ADSL modem as a test - to see what affect your wiring is having. If you're on Naked DSL.

Otherwise yeah, with chorus splitter installs for VDSL now cheap (or free from snap\etc) that's probably the best option.

"I was born not knowing and have had only a little time to change that here and there." | Octopus Energy | Sharesies
- Richard Feynman

SamF

1598 posts

Uber Geek
+1 received by user: 252

Trusted

#853964 11-Jul-2013 15:56

@sidefx: Agreed.

New World

Shop on-line at New World now for your groceries (affiliate link).

jaxta67

26 posts

Geek

#853967 11-Jul-2013 16:04

EDIT: If you feel like DIYing something in the mean time to test this, post pictures of the inside of your ETP, first jackpoint and where the alarm used to be wired up. Someone here might be able to help you to connect your incoming pair direct to ADSL modem as a test - to see what affect your wiring is having. If you're on Naked DSL.

Otherwise yeah, with chorus splitter installs for VDSL now cheap (or free from snap\etc) that's probably the best option.

I would love to try this, unfortunately I have no experience in this field and I would rather not break something. I'll let the technician know of the old alarm so he can re-configure the wiring accordingly if any still remain. I will also provide any updates on my line and hope it all works out.

Thanks all.

stevehodge

393 posts

Ultimate Geek
+1 received by user: 52

#853985 11-Jul-2013 16:51

jaxta67: Hi all. I'm new to posting to threads and am sorry for any confusion I may cause. I'm struggling to understand why sync speeds of my current adsl2+ connection do not closely reflect what I believe is a good line.
Bandwidth (Up/Down) [kbps/kbps]:1,016 / 15,677

What I don't really understand is my attenuation is very low from what I know this would indicate a very good sync rate of around 20mbps.

I found some stats from when I was on ADSL:
Current throughput    17048 kbit/s (receive direction)    1272 kbit/s (send direction)
Line attenuation          0 dB (receive direction)    0 dB (send direction)
Signal-to-noise ratio    11 dB (receive direction)    12 dB (send direction)

As you can see they're not too different from yours. I had very similar wiring from the sounds of things too. So don't worry to much at this stage, wait and see how it looks with VDSL.

bensmithnz

26 posts

Geek
+1 received by user: 5

Trusted

#854678 12-Jul-2013 23:24

Hey everybody, I just signed up with SNAPs VDSL service. Technician came on Thursday afternoon and installed a master splitter into the house, and moved us to a new port in the cabinet (as existing port wasnt VDSL capable)

From what I can gather there is a bedding in DLM process that takes approximately 10 days.

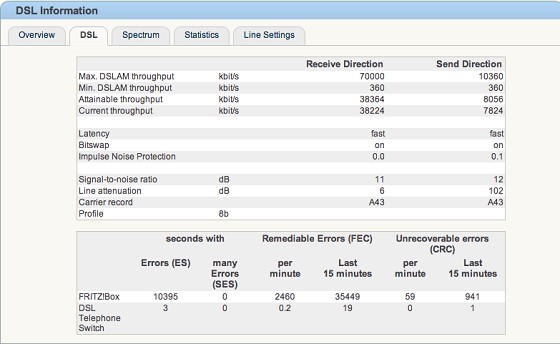

Here we are at 2 days, and I am mildly concerned about the large number of CRC errors that the Fritzbox 7390 is reporting (as below).

I am currently over the road from our cabinet which our house connects to ~100m.

Should I be concerned at 2 days in, or should I just let the DLM work it's magic for the next while?

I havent made any config changes in the router at all, nor have I made any "user" reboots.

What are everybody's thoughts at this point?

SamF

1598 posts

Uber Geek
+1 received by user: 252

Trusted

#854690 12-Jul-2013 23:30

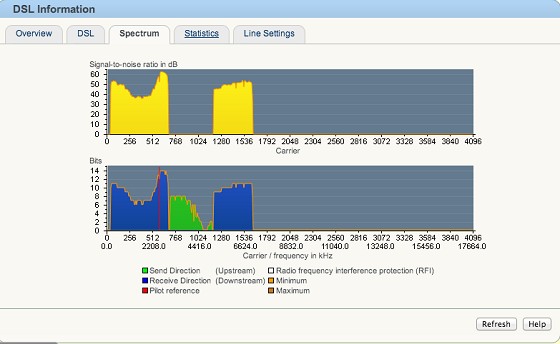

Hmm, that's a bit odd! Something's not quite right there! Your attenuation is good, but your spectrum graph is showing some odd dips.

That said, snap will likely want you to wait the full 10 days to let DLM do it's initial tuning before they will look into it further. It probably won't help with the issues you have, but I think Chorus don't like to do anything until after the first 10 days.
