VDSL Performance & Tuning

Forums › New Zealand Broadband › VDSL Performance & Tuning

1 | ... | 118 | 119 | 120 | 121 | 122 | 123 | 124 | 125 | 126 | 127 | 128 | ... | 285

26 posts

Geek
+1 received by user: 5

Trusted

#854691 12-Jul-2013 23:37

Hey @SamF thanks for the prompt reply.

I thought as much. Given the sync speeds are fairly good and my line attenuation is good it's hard to know if the CRC errors are actually posing as a problem. Internet is definitely fas[er] than my ADSL2 connection.

Guess we'll wait and see wht happens each day. I've been taking screenshots each morning when I wake up to ensure that I can monitor any change.

Ben

SamF

1598 posts

Uber Geek
+1 received by user: 252

Trusted

#854696 12-Jul-2013 23:43

NP :)

Good plan on the screenshots - it will give snap some more ammo to go back to Chorus with.

Interesting you're on DLM-1 (1ms latency) with that error rate, normally a CRCPM (per minute) of 10 is the maximum. Then again, it's early days yet! :)

bensmithnz

26 posts

Geek
+1 received by user: 5

Trusted

#854698 12-Jul-2013 23:56

Hey @SamF

I notice with other screenshots in this thread, the latency line actually has a figure as opposed to "fast". Is that a firmware update that changes that?

I'm reading this thread through from the beginning and am up to page 35 so far... so maybe I'll come across a post that talks about that.

Makes for some light Friday night reading.

stevehodge

393 posts

Ultimate Geek
+1 received by user: 52

#854703 13-Jul-2013 01:06

bensmithnz: Hey @SamF

I notice with other screenshots in this thread, the latency line actually has a figure as opposed to "fast". Is that a firmware update that changes that?

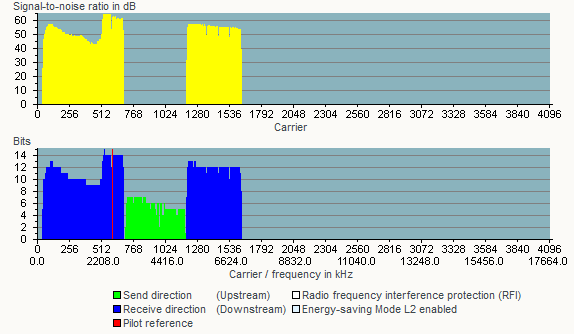

The latest firmware shows "fast". That seems to correspond to 0ms. So it looks like you're on DLM-1. However your sync rate is a little low for DLM-1 with your attenuation and as Sam said your spectrum is not great. Compare yours to my spectrum on the 8b profile - I have very similar attenuation and am also about 100m from the cabinet. I was getting about 45 Mbps:

eXDee

4033 posts

Uber Geek
+1 received by user: 1070

Trusted

#854708 13-Jul-2013 01:31

Port died when the technician was checking the line. He then replaced the port. DLM-1 with low errors for just under a day! and then down to DLM-2. Sigh. Cant be bothered sacrificing 3-10 megabit of speed by upping SNR.

Jexlar

41 posts

Geek
+1 received by user: 5
Inactive user

#854885 13-Jul-2013 11:24

I got a bit unlucky, the weather here is crap and there's been quite a bit of flooding around my house, so after a resync early morning a few days ago I was changed on to DLM-2 and my sync rate was decreased.

Had a 2 second power cut yesterday too, although there wasn't much of a difference after that like everyone else has noticed after a power cut.

Geekzone support

Support Geekzone with one-off or recurring donations Donate via PressPatron.

sidefx

3776 posts

Uber Geek
+1 received by user: 1296

Trusted

#854912 13-Jul-2013 12:15

@Jexlar: Bummer man. What was your CRCPM rate while on DLM1?

Have you thought about increasing the TSNRM a couple of notches? IMO with the limits of international bandwidth dropping a few megabits isn't a big deal for the improved latency of DLM1. Power cuts don't help though :( DLM just seems too sensitive to unexpected outages like that.

"I was born not knowing and have had only a little time to change that here and there." | Octopus Energy | Sharesies
- Richard Feynman

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#854937 13-Jul-2013 14:10

sidefx: @Jexlar: Bummer man. What was your CRCPM rate while on DLM1?

Have you thought about increasing the TSNRM a couple of notches? IMO with the limits of international bandwidth dropping a few megabits isn't a big deal for the improved latency of DLM1. Power cuts don't help though :( DLM just seems too sensitive to unexpected outages like that.

cant say i ever have an issue maxing my line to my dedis in NL (talking 300~330ms here), to be fair though, i can tweak the tcpip stack on both ends..

a month or so back, snap said they did some minor changes and updates, from that point, maxing the line hasnt been hard at all, whatever the changes that were made, seems to work out pretty good..

powercuts, flatmates.. big contributing factors to DLM unfortunately.. its actually pretty impressive to see the difference the weather makes to vdsl..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

sidefx

3776 posts

Uber Geek
+1 received by user: 1296

Trusted

#854961 13-Jul-2013 15:38

Sure but is that single threaded? (EDIT: Ah ok I see that's with TCP tweaks so I guess yes it is single thread)

Day to day I can max line easily from pretty much anywhere in the world with multiple threads. Or I guess with TCP tweaks or UDP, etc. Or local\australia content\cache - was hitting 5.2 MB/s on a steam download last night. Yes whatever their tweak was it was awesome for steam, linux isos, etc.

- but honestly when doing that sort of thing is ~3 Mbps on 30/40+ Mbps going to make much difference?

For me I'd probably take the extra 16ms latency even if I had to drop throughput for it (and I did this in the past - spent ages on TSRNM = 14 to get on DLM1 initially)

"I was born not knowing and have had only a little time to change that here and there." | Octopus Energy | Sharesies
- Richard Feynman

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#854964 13-Jul-2013 15:52

sidefx: Sure but is that single threaded? (EDIT: Ah ok I see that's with TCP tweaks so I guess yes it is single thread)

Day to day I can max line easily from pretty much anywhere in the world with multiple threads. Or I guess with TCP tweaks or UDP, etc. Or local\australia content\cache - was hitting 5.2 MB/s on a steam download last night. Yes whatever their tweak was it was awesome for steam, linux isos, etc.

- but honestly when doing that sort of thing is ~3 Mbps on 30/40+ Mbps going to make much difference?

For me I'd probably take the extra 16ms latency even if I had to drop throughput for it (and I did this in the past - spent ages on TSRNM = 14 to get on DLM1 initially)

yes, single threaded, multiple threads wouldn't be a fair argument at all..

your talking a whole like 350KB/s! thats so much! lul...

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Jexlar

41 posts

Geek
+1 received by user: 5
Inactive user

#854997 13-Jul-2013 17:00

Yeah, max I have had on steam download is 5.2 as well, it's great!

Geekzone

Want to support Geekzone and browse the site without the ads? Subscribe to Geekzone now (monthly, annual and lifetime options).

coffeebaron

6306 posts

Uber Geek
+1 received by user: 3569

Trusted

Lifetime subscriber

#855011 13-Jul-2013 17:52

Bummer, 1.1km. I had hoped for a bit more upstream though. Prequel estimated 16Mbps down and 6Mbps up, which is within the speed guidelines for VDSL. Attenuation showing very high, was originally about 10dB back in DSL1 days, but has crept up over the last year :(

Rural IT and Broadband support.

Broadband troubleshooting and master filter installs.
Starlink installer - one month free: https://www.starlink.com/?referral=RC-32845-88860-71
Wi-Fi and networking
Cel-Fi supply and installer - boost your mobile phone coverage legally

Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com
