#1801831 16-Jun-2017 08:10

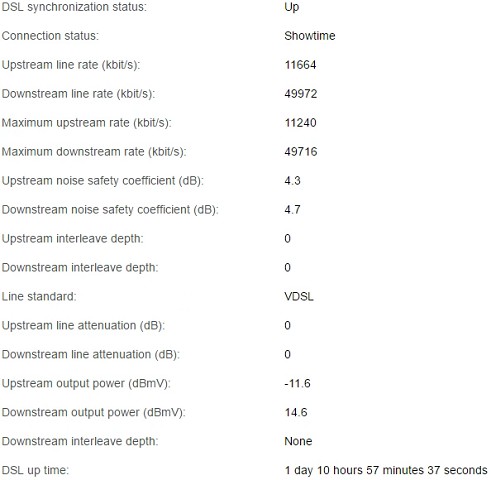

From what I can tell from my modem stats, my connections interleave depth is zero.

Its not a flash connection however.

Totally died about two weeks ago, chorus tech came & had a look & fixed, and its been limping along ever since.

dDDLM has slowly been bringing it back up to life, and now my upload is well over 50% better than before dDDLM, download is getting there.

Big gap between Maximum down rate, and Actual down line rate.

smalltrader

174 posts

Master Geek
+1 received by user: 62

#1801835 16-Jun-2017 08:18

allio:

smalltrader:

I am not quite sure if ddDLM is being cautious resulting in some people stuck in limbo as you have said. Believe it or not. ddDLM has been visiting my line every day this week resulting in 4am re-sync pretty much every morning. It is now making adjustment in increment of 1 Mbps instead of 5 or 10 Mpbs increment. It looks to me like it is trying very hard at fine tuning the line now after it has established the upper and lower performance limit.

Interesting thing is before ddDLM my latency was stuck at 20ms according to SpeedTest since I switched to VDSL in March. In the last few days SpeedTest has reported 13 ms latency which is quite a bit lower. Perhaps there is hope for you ...

I've had a very different experience. I've only had three resyncs in total, with the first two being the first two days after the ddDLM switchover and the last back on page 16 of this thread (23 May). Each has nudged SNR down and interleaving up.

As I still have some CRC errors (an acceptable level) I wonder if ddDLM is simply finished with my line. If so I've traded 45/7 with no latency for 70/18 with quite a lot of latency. I hardly ever game anymore so I can't complain.

As Chorus did not publish the algorithm used by ddDLM, all of us are guessing how it is working. My own observation is ddDLM is trying establish an upper limit and a lower limite on performance and then fine tune within that range. Since ddDLM has gone live on my line around ANZAC weekend, my down stream speed has bounced between 62 and 45 which is quite a wide range. It has now settled around the 55 mark with fine tuning of 1 MBps increment.

ddDLM was making frequent changes at the beginning and then hibernate for 10 days or so and then making active changes again. This week ddDLM has been particularly active on my line with changes in 1 Mbps increment.

My gut feel is ddDLM is not done with your line. It is sitting in the background collecting stats and deciding on the next change.

influx

26 posts

Geek

#1802332 16-Jun-2017 18:39

After ddDLM went active on my line it was 70/30 with DLM-1 for 3 days. After that delay, INP and interleave depth went up and stayed that way. Virtually every resync it made since then has been no change at all, not even SNRM which is staying at 12db. Just had another resync this morning and nothings changed.

I guess it's trying to move back to DLM-1 but keeps failing somewhere, otherwise why would it make pointless resyncs with no changes?

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1802336 16-Jun-2017 18:45

influx:

After ddDLM went active on my line it was 70/30 with DLM-1 for 3 days. After that delay, INP and interleave depth went up and stayed that way. Virtually every resync it made since then has been no change at all, not even SNRM which is staying at 12db. Just had another resync this morning and nothings changed.

I guess it's trying to move back to DLM-1 but keeps failing somewhere, otherwise why would it make pointless resyncs with no changes?

DLM-1 does not exist anymore.

Your snr will stay around 12dB, possibly go even higher. 70/30 is the max for your linecard.

Likely ddDLM is adjusting it's power levels since your line doesn't require much to max out.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

datahawk

256 posts

Ultimate Geek
+1 received by user: 30

Lifetime subscriber

#1802533 17-Jun-2017 11:20

DLM visited a few times last week with only minor changes to sync speed and a slight adjustment of SNR values. Our Interleave depth and ping has also remained static.

However, an interesting event happened last night between 6pm and 11.30pm where our normally rock solid VDSL connection re-synced 7 times during the evening (Draytek DV130 'Xdsl Link Times' climbed from 6 to 13) but the Netgear router log only showed two internet reconnects during the evening.

It appears that there was some issue at the cabinet/exchange end and it seems it was resolved at 11.30pm because the connection is back to stable since then with no reconnects since.

The interesting thing is that the sync speed, even with all the re-links, remained the highest I have had at 74.7 Mbps down and 13.7 up.

Mode:8B State:SHOWTIME TX Block:0 RX Block:0
Corrected Blocks:229 Uncorrected Blocks:15
UP Speed:13755000 Down Speed:74722000 SNR Margin:5 Loop Att.:9

---------------------- ATU-R Info (hw: annex A, f/w: annex A/B/C) -----------
Running Mode : 8B State : SHOWTIME
DS Actual Rate : 74722000 bps              US Actual Rate : 13755000 bps
DS Attainable Rate : 73930008 bps         US Attainable Rate : 13138000 bps
DS Path Mode : Interleave                    US Path Mode : Fast
DS Interleave Depth : 248                   US Interleave Depth : 16
NE Current Attenuation : 9 dB              Cur SNR Margin : 5 dB
DS actual PSD : -12.-8 dB                   US actual PSD : 16. 3 dB
NE CRC Count : 15                               FE CRC Count : 229
NE ES Count : 3                                  FE ES Count : 130
Xdsl Reset Times : 0                            Xdsl Link Times : 13
ITU Version[0] : b5004946                    ITU Version[1] : 544e0000
VDSL Firmware Version : 05-07-09-0F-01-07 [with Vectoring support]
Power Management Mode : DSL_G997_PMS_L0
Test Mode : DISABLE
-------------------------------- ATU-C Info ---------------------------------
Far Current Attenuation : 8 dB Far SNR Margin : 4 dB
CO ITU Version[0] : b5004244 CO ITU Version[1] : 434da3f5
DSLAM CHIPSET VENDOR : < BDCM >

I'm guessing that we are not going to get a 17A profile, even with these stats because it looks like our 9dB Attenuation is just slightly too high for ddDLM to let us have it.

However, we can't really complain because it's giving us +70/+13 Mbps on 8B now instead of 60/10.

Westie6654

2 posts

Wannabe Geek

#1802595 17-Jun-2017 13:53

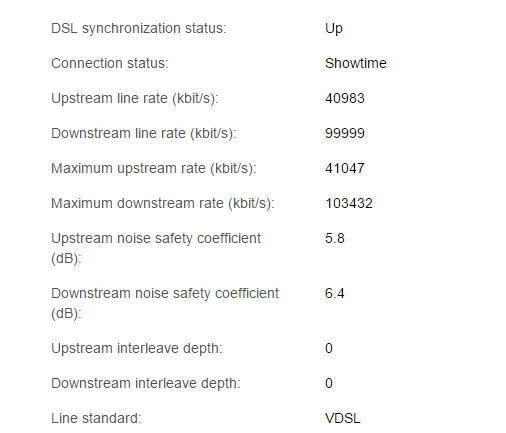

Hi there just wondering about something, here are my stats of my line. The question is have I reached the capabilities of the DSLAM in terms of the download speed.

Samsung

Shop now on Samsung phones, tablets, TVs and more (affiliate link).

Djmixerdomo

255 posts

Ultimate Geek
+1 received by user: 53

#1802621 17-Jun-2017 15:38

Westie6654:

Hi there just wondering about something, here are my stats of my line. The question is have I reached the capabilities of the DSLAM in terms of the download speed.

Yes, the max is 100/50 for your line.

PC: 5800X3D/32GB/RTX3070

Car: Toyota Celica GT-Four ST205

Djmixerdomo

255 posts

Ultimate Geek
+1 received by user: 53

#1802626 17-Jun-2017 15:51

My line re-synced yesterday after 3 weeks of this:

It's now significantly lower:

Don't know why it has done this, my correctable errors were in the single digits over those few weeks and it seemed completely stable. ddDLM is weird :/

PC: 5800X3D/32GB/RTX3070

Car: Toyota Celica GT-Four ST205

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1802646 17-Jun-2017 16:33

Djmixerdomo:

My line re-synced yesterday after 3 weeks of this:

It's now significantly lower:

Don't know why it has done this, my correctable errors were in the single digits over those few weeks and it seemed completely stable. ddDLM is weird :/

Your line has dropped to 8b.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

freakngeek

356 posts

Ultimate Geek
+1 received by user: 123

#1802751 17-Jun-2017 19:47

Just at my sisters in Chch, they have zero Interleave Depth with their HG659b, nothing else special to make it so.

DSL synchronization status: Up

Connection status: Showtime

Upstream line rate (kbit/s): 13653

Downstream line rate (kbit/s): 56932

Maximum upstream rate (kbit/s): 13768

Maximum downstream rate (kbit/s): 56962

Upstream noise safety coefficient (dB): 7.8

Downstream noise safety coefficient (dB): 6.1

Upstream interleave depth: 0

Downstream interleave depth: 0

Line standard: VDSL

Upstream line attenuation (dB): 30.7

Downstream line attenuation (dB): 15.5

Upstream output power (dBmV): 7.7

Downstream output power (dBmV): 14.5

Downstream interleave depth: None

DSL up time: 0 days 19 hours 38 minutes 45 seconds

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1802753 17-Jun-2017 19:50

Yes, It is possible.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Geekzone support

Support Geekzone with one-off or recurring donations Donate via PressPatron.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1803123 18-Jun-2017 22:02

Well power cut happened while i was out today,

Looks like delay on Upstream jumped down to 6ms, INP went up to 0.5.

Depths changed ever so slightly, but nothing of value.

Not sure how many times it was on and off in this time, as my monitoring wasn't running - UPS is sitting in my room on the box replacing my current VM host...

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1803136 18-Jun-2017 22:54

Just noticed a very strange development with my VDSL line.

ddDLM has assigned a target margin of 8dB (Target margin on the DSLAM side)

Seems we have new figures in the field at play...

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

SaltyNZ

8865 posts

Uber Geek
+1 received by user: 9545

Trusted

2degrees

Lifetime subscriber

#1803164 19-Jun-2017 07:25

For some reason I've been switched from 8b to 17a over the weekend. I have no idea why, given I'm nowhere near even the top speed of 8b, although it has perhaps netted me about another 250kbps on the uplink. That small of a variation could just be from resyncing though.

iPad Pro 11" + iPhone 15 Pro Max + 2degrees 4tw!

These comments are my own and do not represent the opinions of 2degrees.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1803170 19-Jun-2017 07:54

Will likely drop back again. I roll over to 17a occasionally too.

I'm surprised downstream manages to stay about the same given changes in power levels

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.
