#1954637 10-Feb-2018 08:18

I am using a Dreytek Vigor130 and when I use the STD firmware I get much better upload speeds, they jumped from about 2000 to the current at about 5000 after a week or so on the STD over the modem4 firmware, I see now they are enabling vectoring on a lot of exchanges so I'd benefit from modem4 firmware but I'm scared to flash back to modem4 incase it slows my upload right back down.

Is there a way to find out if my exchange supports vectoring yet, I'm in Lumsden, Rural southland.

[Mod - Murph - removed stats due to it messing up layout, please screenshot and place in the post]

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1954754 10-Feb-2018 12:47

Your cabinet is not enabled for Vectoring.

Currently Chorus are only running Vectoring in 2 exchange areas.

They also are only running vectoring (gains atleast) on Downstream.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

phrunt

135 posts

Master Geek
+1 received by user: 7

#1954800 10-Feb-2018 13:46

So is it best I just stay on standard firmware and not the vectoring firmware, as I do get better speeds on upload with the std, only problem is if they enable vectoring on my cabinet and i don't know it I may be missing out on any performance increase

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1954802 10-Feb-2018 13:48

phrunt:

So is it best I just stay on standard firmware and not the vectoring firmware, as I do get better speeds on upload with the std, only problem is if they enable vectoring on my cabinet and i don't know it I may be missing out on any performance increase

You may find the speed bump was coincidental.

Different modems will sync differently, Particularly with upstream there is typically a more broad range depending on chipset vs dslam

Different software implementations can adjust this slightly.

IMO, your speed boost, I'd leave it be for now.

When i see more dslams go live (with the actual enabling not just the upgraded card) i'll be sure to let you all know.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

phrunt

135 posts

Master Geek
+1 received by user: 7

#1954837 10-Feb-2018 15:34

Thanks I appreciate that.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1954839 10-Feb-2018 15:36

i still need to get around to running some stats that i was going to post awhile back to vectoring.

Didn't feel it was fair to comment on lines when ddDLM was settling with the changes of Vectoring though.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

AliExpress

Shop now on AliExpress (affiliate link).

phrunt

135 posts

Master Geek
+1 received by user: 7

#1955057 11-Feb-2018 07:54

I fiddled the other day flashing on the gvector firmware to my vigor130 to see if it would make a difference to my line speed, i rebooted the modem a couple of times in the process and then left it 2 days, the speed wasn't better so i flashed back the std firmware, now overnight last night DLM has decided to slow me right down after being at my other speed for a couple of years, is it likely to go back to normal or do i need to contact my isp and get them to do a port reset or anything?

I'm a bit annoyed as I never really had fast speed so now i'm even slower!

Linux

12185 posts

Uber Geek
+1 received by user: 8479

Trusted

Lifetime subscriber

#1955081 11-Feb-2018 08:03

@phrunt Stop turning modem off and on and DLM takes up to 10 days and no don't do a port reset via ISP

Linux

spacedog

496 posts

Ultimate Geek
+1 received by user: 62

#1995041 12-Apr-2018 19:40

Any news on where vectoring is enabled? I'm in the Parnell area and my cabinet is just at the end of my street so I've been getting 70/30 up/down speeds for years. I tried putting the 3.8.2 modem8 firmware on my Vigor 130 and I can see I have an attainable rate listed at 110848, but I'm only getting 70000.

Would that attainable rate suggest I'm on a cabinet that is capable of vectoring?

Downstream Upstream
Actual Rate 70000 Kbps 29979 Kbps
Attainable Rate 110848 Kbps 31528 Kbps
Path Mode Fast Fast
Interleave Depth 1 1
Actual PSD -5.-1 dB 14. 2 dB
Near End Far End
Trellis ON ON
Bitswap OFF OFF
SNR Margin 18 dB 6 dB
Attenuation 11 dB 14 dB
CRC 1 227554
FECS 0 s 1635776919 s
ES 1 s 154794 s
SES 0 s 68 s
LOSS 0 s 42 s
UAS 35 s 29 s
HEC Errors 0 0
RS Corrections 0 0
LOS Failure 0 0
LOF Failure 0 0
LPR Failure 0 0
NCD Failure 0 0
LCD Failure 0 0
NFEC 255 255
RFEC 16 16
LYSMB 8040 18784

Jase2985

13734 posts

Uber Geek
+1 received by user: 6208

ID Verified

Lifetime subscriber

#1995047 12-Apr-2018 19:55

you will be getting UFB so you are NOT getting vectroing

attainable rate means nothing, chorus has a limit of 70/30 on ikanos line cards cant change that.

Vectoring information is here: https://www.geekzone.co.nz/forums.asp?forumid=49&topicid=223915

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1995199 13-Apr-2018 09:29

If your still getting 70/30 then your nor even on the linecards.

You wont be getting vectoring though. due to being a chorus UFB area.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Dell

Shop now for Dell laptops and other devices (affiliate link).

phrunt

135 posts

Master Geek
+1 received by user: 7

#1995213 13-Apr-2018 09:34

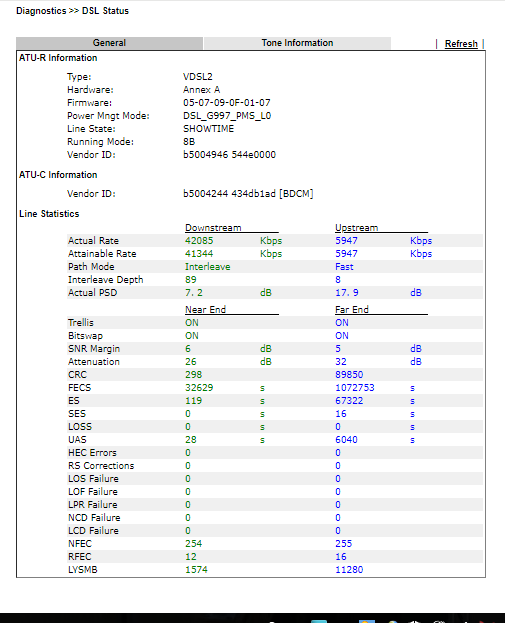

Does this speed seem right to you? my uplink seems slow and my downlink is slower than it used to be, I think there has been a change of card which caused my speed changes?

freakngeek

356 posts

Ultimate Geek
+1 received by user: 123

#1995223 13-Apr-2018 09:46

spacedog:

Any news on where vectoring is enabled? I'm in the Parnell area and my cabinet is just at the end of my street so I've been getting 70/30 up/down speeds for years. I tried putting the 3.8.2 modem8 firmware on my Vigor 130 and I can see I have an attainable rate listed at 110848, but I'm only getting 70000.

Would that attainable rate suggest I'm on a cabinet that is capable of vectoring?

Use Modem 4 Firmware to me more stable and meant for NZ
Should hopefully lower your upstream error rate

phrunt

135 posts

Master Geek
+1 received by user: 7

#1995227 13-Apr-2018 09:51

Dreytek now say modem 8 firmware is for NZ.

freakngeek

356 posts

Ultimate Geek
+1 received by user: 123

#1995228 13-Apr-2018 09:52

phrunt:

Does this speed seem right to you? my uplink seems slow and my downlink is slower than it used to be, I think there has been a change of card which caused my speed changes?

Looks about right when I had similar Downstream rate.

Leave for a few days as you're on 8b profile, ddDLM should bring this to 17b is all is well with your line.
You running STD Firmware version ? as quite a few stats are missing if yes update to Modem 4, then that page should fill
Modem 4 is also Vectoring capable and STD is not.
