Topic # 189030 14-Dec-2015 19:02
Send private message

Hi There,

So we have are in the middle of renovating our house (1950s).. and as we go we are installing network points wherever there is a power point. Our first room that we have been able to put them in is completed and the electrician has been and completed their work.

This room has 3 network points with cat6 cable going back to a PP-MINI12-C5E patch panel, which is then patched to a DLINK DGS-1100-08 Switch. All fairly standard.

So i plugged our macbook pro into one of the wall ports, and dont get a link. I tested the cable i was using from macbook to wall directly with the switch and it works, i tested the patch panel cable directly and it works. But from wall to patch panel does not work (i also tested a cross over cable from patch panel to switch, with no luck).

So i spoke to the electrician and they said they tested the link with their testing tool, and said they would come back and test again if we so wanted - but thats pretty much all they can do.

Could it be some sort of incompatibility between the switch and the patch panel? (the electrician mentioned that they have seen this before).

Is their anything obviously dumb that i have missed?

PS ive tested that they labeled the ports wrong :)

Thanks!

Filter this topic showing only the reply marked as answer View this topic in a long page with up to 500 replies per page Create new topic
 1 | 2 | 3
1543 posts

Uber Geek
+1 received by user: 381


  Reply # 1450315 14-Dec-2015 20:04
Send private message

Ask what standard they wired in ie a or b, and check what standard your patch leads are using.



170 posts

Master Geek
+1 received by user: 5


  Reply # 1450329 14-Dec-2015 20:37
Send private message

Ok thanks - so it's either A or B? No other options?

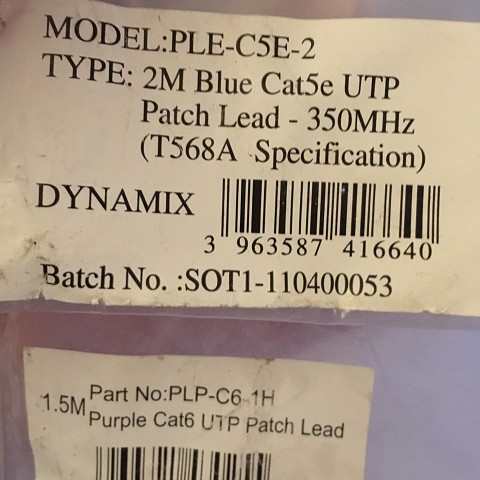

These are a couple of the patch leads I'm using (pic)




7674 posts

Uber Geek
+1 received by user: 2527

Subscriber

  Reply # 1450330 14-Dec-2015 20:43
Send private message

Yes 568A or 568B or something completely wrong

see image

7674 posts

Uber Geek
+1 received by user: 2527

Subscriber

  Reply # 1450332 14-Dec-2015 20:44
Send private message

the patch leads will be fine as you have proved, it will probably be the inwall wiring thats the issue



170 posts

Master Geek
+1 received by user: 5


  Reply # 1450338 14-Dec-2015 21:06
Send private message

Right! It looks like this is all up the whop!


494 posts

Ultimate Geek
+1 received by user: 114

Subscriber

  Reply # 1450361 14-Dec-2015 21:26
Send private message

That wiring looks ok to me. You can use a T568B cable and a T568A cable between the switch and the computer.
It's when you use both on the same cable you have issues.

Do you have a router on the network? The switch will be unable to provide DHCP so the mac will be trying to find a DHCP server. It should  give you a self assigned IP address eventually.




Geoff E



170 posts

Master Geek
+1 received by user: 5


  Reply # 1450381 14-Dec-2015 21:31
Send private message

Ok thanks heaps for all the replies!

Switch is plugged into a orcon genius UFB 'white' modem, all other devices (TV, synology, airport express, linksys voip phone, hikvision cameras) work fine.

So you are saying I can use either A or B spec cables, but not both? Eg A between laptop and wall plug, then B between patch panel and switch?

494 posts

Ultimate Geek
+1 received by user: 114

Subscriber

  Reply # 1450384 14-Dec-2015 21:36
One person supports this post
Send private message

Yes. Its when you put A on one end of the cable and B on the other end of the same cable.




Geoff E

494 posts

Ultimate Geek
+1 received by user: 114

Subscriber

  Reply # 1450399 14-Dec-2015 22:12
Send private message

Hold on missed a step. So yes you can have any mix of cables. However I think your mixing up the spec with the cable.
The T568A and T568B spec are what order the individual wires within the cable go into the RJ45 Plug or socket.

The CAT rating refers to the cable. You can mix these cables however you will be limited by the lowest number.
The T568 refers to the termination on the end of the cable. This needs to be the same on both ends of the cable. So for example you could have (A plug A Plug)(B Plug B Plug)(A Plug A Plug) or (B Plug B Plug)(A plug A Plug)(A Plug A Plug) etc

Its when you have for example you have (A plug A Plug)(B plug A Plug)(A plug A Plug) that you will have issues

The cable through the wall should be using T568A on both ends according to your photo. On the back of the wall plate the wires should terminate into the socket. This should also be T568A. If it is T568B then they have wired it wrong. However you will need to unscrew the wall plate to see.

If they have a tester it would be rather obvious if they did mix the T568 spec as the LED's on the slave side will be blinking all over the place rather than in order.

My guess would be that they did not actually test it and there is a few dud connections or a nail through the wire.




Geoff E

21234 posts

Uber Geek
+1 received by user: 4271

Trusted
Subscriber

  Reply # 1450403 14-Dec-2015 22:18
Send private message

Even if you do use A and B mixed and make a crossover cable, it should still get link on anything but really old 100 megabit gear.




Richard rich.ms



170 posts

Master Geek
+1 received by user: 5


  Reply # 1450412 14-Dec-2015 22:38
Send private message

Thanks guys (awesome geocom).

I tested with a crossover cable as well... Which is why I think something is screwed.

I'm now well informed and know enough to get them to check this.

Thanks again

416 posts

Ultimate Geek
+1 received by user: 94

Subscriber

  Reply # 1450417 14-Dec-2015 22:53
2 people support this post
Send private message

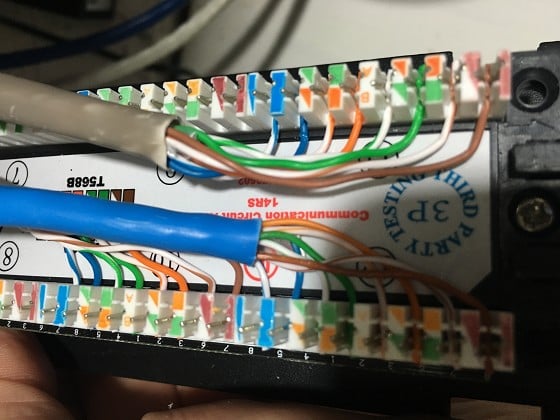

greminn: Right! It looks like this is all up the whop!



Did you try all 3 network points in the room?
The top cable here appears to be B while the bottom 2 are A, so if you only tried 1 point you might have chosen the odd one.





Speedtest

Hmm, what to write...
984 posts

Ultimate Geek
+1 received by user: 492

Trusted
Lifetime subscriber

  Reply # 1450543 15-Dec-2015 08:57
Send private message

Amosnz:
greminn: Right! It looks like this is all up the whop!



Did you try all 3 network points in the room?
The top cable here appears to be B while the bottom 2 are A, so if you only tried 1 point you might have chosen the odd one.


Yep I've made that mistake with that particular panel as well. The difference is I actually tested it (not just said I did) and so found it. Having said that...easy to screw up and just as easy to fix




Matthew




170 posts

Master Geek
+1 received by user: 5


  Reply # 1450544 15-Dec-2015 09:00
Send private message

Amosnz: Did you try all 3 network points in the room?
The top cable here appears to be B while the bottom 2 are A, so if you only tried 1 point you might have chosen the odd one.



Yep - tried every combination :) i will pull off the face plate and take a look. I expect its just mixed up A/B.



170 posts

Master Geek
+1 received by user: 5


  Reply # 1450545 15-Dec-2015 09:02
Send private message

BTW my 8 port switch is going to run out of ports i think.. might need a 48 port :) maybe with a couple of 10gig uplink ports... future proof it!
