# 198635 17-Jul-2016 11:14
6 people support this post
Send private message

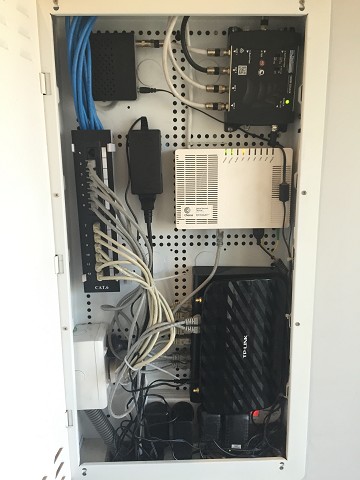

I bought an old villa in Wellington and decided to smartwire with Cat6 during the reno.  The network box has Freeview, HDHomerun, ONT 12 port patch panel, 16 port switch and a router.  I have run out of room but would love to have crammed in a nas box or security system.



StartHalfwayFinished


Create new topic
192 posts

Master Geek


  # 1593849 17-Jul-2016 12:06
Send private message

Nice - Im just about to venture into the same thing with an old villa.



Just out of interest - If all the adapters are 240V to 12V, have you thought about using a single and more robust transformer?



What else did you do around the house?








245 posts

Master Geek

Trusted

  # 1593884 17-Jul-2016 12:50
Send private message

Thanks for the feedback - i'm not sure how a transformer would be of benefit though.  Would it save space in the cabinet or make it safer?



I ran 2 x ethernet to every bedroom and 4x behind my TV in the living room.  I also used the Cat6 cabling to install a Unifi WIFI AP which is ceiling mounted and I cannot recommend highly enough.  It gives us excellent strength throughout the property.



If I could start again I would probably pay more attention to where I place the ethernet jacks, i.e. half way up the wall for wall mounted TVs.  But it's been fun!












192 posts

Master Geek


  # 1593945 17-Jul-2016 14:32
Send private message

Cool - Having no dwangs makes running cables heaps easier.


521 posts

Ultimate Geek

Lifetime subscriber

  # 1595117 19-Jul-2016 15:56
Send private message

Looks really good. Have you found that the 12 port patch panel is enough? I have the same one, and think I probably could have done with 2 or 3 times the ports... Unfortunately I have a smaller cabinet and don't really have the space for it. Thinking I might need to install an second cabinet somewhere else in the house.


Go Hawks!
945 posts

Ultimate Geek

Trusted
Subscriber

  # 1595130 19-Jul-2016 16:34
Send private message

pedrogarcia:

Thanks for the feedback - i'm not sure how a transformer would be of benefit though.  Would it save space in the cabinet or make it safer?






It should help save some space - one unit instead of the four. In theory a single transformer could be more efficient - it may have less heat than having four transformers jammed together.

From memory, some transformers will output different voltages, although you could always use a DC-DC converter.

The biggest thing would be to ensure that you have enough amperage to cover all units you wish to power.

I would also only wire in your own equipment - leave the ONT with it's own supply. (Simple insurance, anything goes wrong with the ONT and your power supply is the most likely thiing to be blamed ;-))

Cheers!

Hmm, what to write...
1021 posts

Uber Geek

Trusted
Subscriber

  # 1595197 19-Jul-2016 18:33
Send private message

Nice Carpet...bet that fancy new Rhino strand nylon stuff doesn't last as long as that





Matthew


22519 posts

Uber Geek

Trusted
Subscriber

  # 1595220 19-Jul-2016 19:02
Send private message

If you run out of space in one of them, chuck another panel in beside it and move all the coax clutter to that one.





Richard rich.ms







4932 posts

Uber Geek

Trusted

  # 1595233 19-Jul-2016 19:26
Send private message

Looks good. Which room in your house do you have your cabinet mounted in?




245 posts

Master Geek

Trusted

  # 1595444 20-Jul-2016 09:06
Send private message

froob:



Looks really good. Have you found that the 12 port patch panel is enough? I have the same one, and think I probably could have done with 2 or 3 times the ports... Unfortunately I have a smaller cabinet and don't really have the space for it. Thinking I might need to install an second cabinet somewhere else in the house.









I have completely filled it up, should have gone with a 24 port.  And the cabinet is definitely too small.  All good lessons for next time.




245 posts

Master Geek

Trusted

  # 1595452 20-Jul-2016 09:08
Send private message

DarthKermit:



Looks good. Which room in your house do you have your cabinet mounted in?

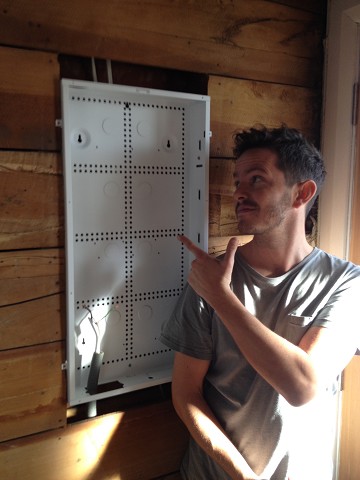

I put it by the front door opposite the switchboard.  Would have preferred a cupboard to hide it away in but until I build an extension I don't have one :(




245 posts

Master Geek

Trusted

  # 1595458 20-Jul-2016 09:20
Send private message

mdooher:



Nice Carpet...bet that fancy new Rhino strand nylon stuff doesn't last as long as that





All the hassle of a 1905 villa with all the horror of 1960's interior decorating :/


1945 posts

Uber Geek

Trusted
Subscriber

  # 1595467 20-Jul-2016 09:24
Send private message

pedrogarcia:



froob:



Looks really good. Have you found that the 12 port patch panel is enough? I have the same one, and think I probably could have done with 2 or 3 times the ports... Unfortunately I have a smaller cabinet and don't really have the space for it. Thinking I might need to install an second cabinet somewhere else in the house.









I have completely filled it up, should have gone with a 24 port.  And the cabinet is definitely too small.  All good lessons for next time.









This was my suspicion as well - for what I wanted would have required a much bigger cabinet and it just became too obtrusive. So rather than bring everything into one location I chose to focused on trunk ports around the main rooms coming into the office, and putting most things up high and out of the way...





________



Antonios K
