Pls help with setting up HG659.

Forums › LAN (ethernet/Wifi/routers/Bluetooth) › Pls help with setting up HG659.

kiwifidget

"Cookie"
3425 posts

Uber Geek

Lifetime subscriber

#201941 10-Sep-2016 21:52

Now to be fair, I've done most of it but there is just 1 thing I'm struggling with.

I have a WHS2011 box that runs 2 websites.

When I was on ADSL using a TP-Link TD-W8970, I could access the 2 websites using their external address but from within the LAN. It was a handy way of me being able to check that the connectivity was OK.

Since going to fibre, I now have a HG659, and I have set up all the same port forwarding rules as I had before.

Now I cannot access the websites from within the LAN. It works using their internal address and I am mostly sure that they can be accessed from outside the LAN.

What other setting do I need to adjust to be able to access my websites via their external address but from behind my router?

Delete cookies?! Are you insane?!

solutionz

589 posts

Ultimate Geek
Inactive user

#1627199 10-Sep-2016 22:45

Unfortunately I don't believe the HG659 supports "hairpin NAT" hence you wont be able to access your internally hosted server using your WAN IP / via public DNS.

You can however add a static DNS entry to your PC's hosts file to direct your server's public domain to it's local IP.

192.168.1.10 www.myserver.co.nz #My server local IP and domain

Ref: http://www.howtogeek.com/howto/27350/beginner-geek-how-to-edit-your-hosts-file/

sbiddle

30853 posts

Uber Geek

Retired Mod

Trusted

Biddle Corp

Lifetime subscriber

#1627206 10-Sep-2016 23:26

Most routers don't support hairpin NAT.

kiwifidget

"Cookie"
3425 posts

Uber Geek

Lifetime subscriber

#1627238 11-Sep-2016 06:48

Thanks for that.

Does that mean I am going to have to leave the house to do my checking now?

Delete cookies?! Are you insane?!

froob

692 posts

Ultimate Geek

Lifetime subscriber

#1627243 11-Sep-2016 07:40

Although I know the conclusion of your other thread was that the HG659 is not a bad router, it may be that you actually want something that is a bit more configurable.

Guide: Installing Network Cabling in New Zealand Homes

solutionz

589 posts

Ultimate Geek
Inactive user

#1627249 11-Sep-2016 08:16

kiwifidget:

Thanks for that.

Does that mean I am going to have to leave the house to do my checking now?

If you modify the hosts file you can continue to do your checking locally using your public domain; you'll still be able to see if your server is working, just won't get an idea external latency, routing issues etc.

However to actually perform tests from the perspective of a public user you could either;

- access through a VPN or web proxy on your PC

- use a reverse proxy service such as CloudFlare (which has many other advantages).

- use a server monitoring service for uptime logging

- use 3G on your mobile device

- use a router that supports hairpin NAT (aka Nat loopback ).

kiwifidget

"Cookie"
3425 posts

Uber Geek

Lifetime subscriber

#1627252 11-Sep-2016 08:25

froob: Although I know the conclusion of your other thread was that the HG659 is not a bad router, it may be that you actually want something that is a bit more configurable.

This may well turn out to be the case. My TP-Link router cant to do the voip thing, and it seems like the HG659 might not be WHS2011 friendly.

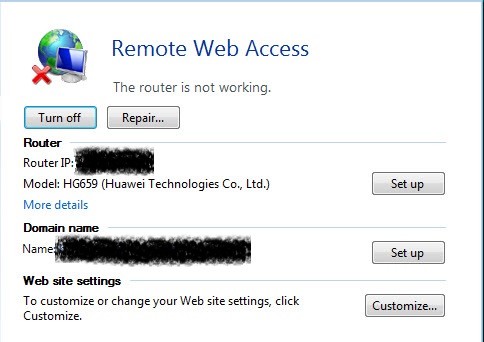

I have manually forwarded port 443 but the error persists, even though it does seem to function from the WAN.

I have enabled upnp but this also may be a factor.

If the HG659 turns out to be not quite the right fit for me I will look into alternatives.

Delete cookies?! Are you insane?!

solutionz

589 posts

Ultimate Geek
Inactive user

#1627254 11-Sep-2016 08:36

kiwifidget:

I have manually forwarded port 443 but the error persists, even though it does seem to function from the WAN.

That's simply a result of no hairpin as your server can't see itself using its public domain / IP. If you've verified you can access it wan side then simply ignore that message otherwise if it's causing issues (i.e. won't allow you to proceed with a setup) you can probably trick it by adding a entry on your server hosts file directing your public domain to localhost:

127.0.0.1 mydomain.com

Sharesies

Trade NZ and US shares and funds with Sharesies (affiliate link).

kiwifidget

"Cookie"
3425 posts

Uber Geek

Lifetime subscriber

#1627287 11-Sep-2016 10:08

OK. So just for checking every now and then or if I think there is a problem, I could unplug the LAN connection from the HG659 and plug it into the TP-Link.

The TP-Link is currently setup for ADSL with pppoe. To set it up for fibre, other than using the WAN port instead of the ADSL is there anything else I would need to do?

Delete cookies?! Are you insane?!

froob

692 posts

Ultimate Geek

Lifetime subscriber

#1627289 11-Sep-2016 10:13

Vodafone right? WAN needs to be set to DHCP and VLAN10.

Guide: Installing Network Cabling in New Zealand Homes

kiwifidget

"Cookie"
3425 posts

Uber Geek

Lifetime subscriber

#1627290 11-Sep-2016 10:15

froob: Vodafone right? WAN needs to be set to DHCP and VLAN10.

Yeah, Vodafone. Thanks, I'll try that tomorrow.

I'm only allowed to do network maintenance during business hours, ie while Himself is at work!

Delete cookies?! Are you insane?!

solutionz

589 posts

Ultimate Geek
Inactive user

#1627295 11-Sep-2016 10:28

kiwifidget:

OK. So just for checking every now and then or if I think there is a problem, I could unplug the LAN connection from the HG659 and plug it into the TP-Link.

The TP-Link is currently setup for ADSL with pppoe. To set it up for fibre, other than using the WAN port instead of the ADSL is there anything else I would need to do?

You're back at square one with this thread as your TP-Link doesn't appear to support WAN VLAN tagging to work with Vodafone UFB: http://www.geekzone.co.nz/forums.asp?ForumId=40&TopicId=201778

You want hairpin which your TP-Link supports and VOIP ATA which your HG659 has...

There is a way to do this specifically on Vodafone+Chorus; I'll PM you the details.

kiwifidget

"Cookie"
3425 posts

Uber Geek

Lifetime subscriber

#1627333 11-Sep-2016 10:57

solutionz:

kiwifidget:

OK. So just for checking every now and then or if I think there is a problem, I could unplug the LAN connection from the HG659 and plug it into the TP-Link.

The TP-Link is currently setup for ADSL with pppoe. To set it up for fibre, other than using the WAN port instead of the ADSL is there anything else I would need to do?

You're back at square one with this thread as your TP-Link doesn't appear to support WAN VLAN tagging to work with Vodafone UFB: http://www.geekzone.co.nz/forums.asp?ForumId=40&TopicId=201778

You want hairpin which your TP-Link supports and VOIP ATA which your HG659 has...

There is a way to do this specifically on Vodafone+Chorus; I'll PM you the details.

Oh yes, I wish this damn cold wasn't making my head so woolly. Thank you for details that would be most appreciated.
