Hi all -

I know my way around networks etc and have put all this kit in myself. Even moved the ONT to a different location without Chorus. However want I'm about to ask may be stupid, so I apologise in advance but I genuinely don't know if you can do this or not.

I'm wondering whether the modem / router can sit further back in a network or whether it has to be "directly" connected to the ONT? Diagrams below of what I currently have setup vs. what I'm wondering. If it matters some further information:

Modem is a Fritz Box 7590 and ONT is plugged into the WAN port and is serving out DHCP
WAPs are PoE, hence the PoE switch but have passthrough ethernet. So that's why these another switch attached to one
Switches are unmanaged

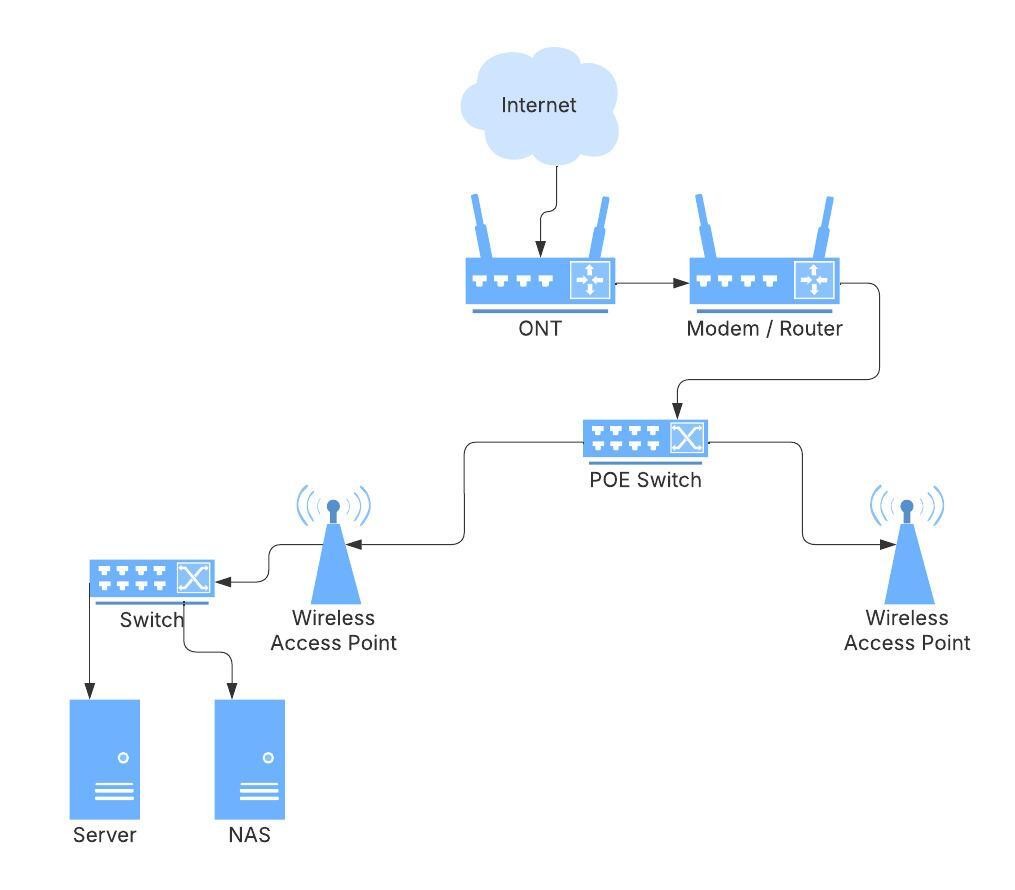

Current setup:

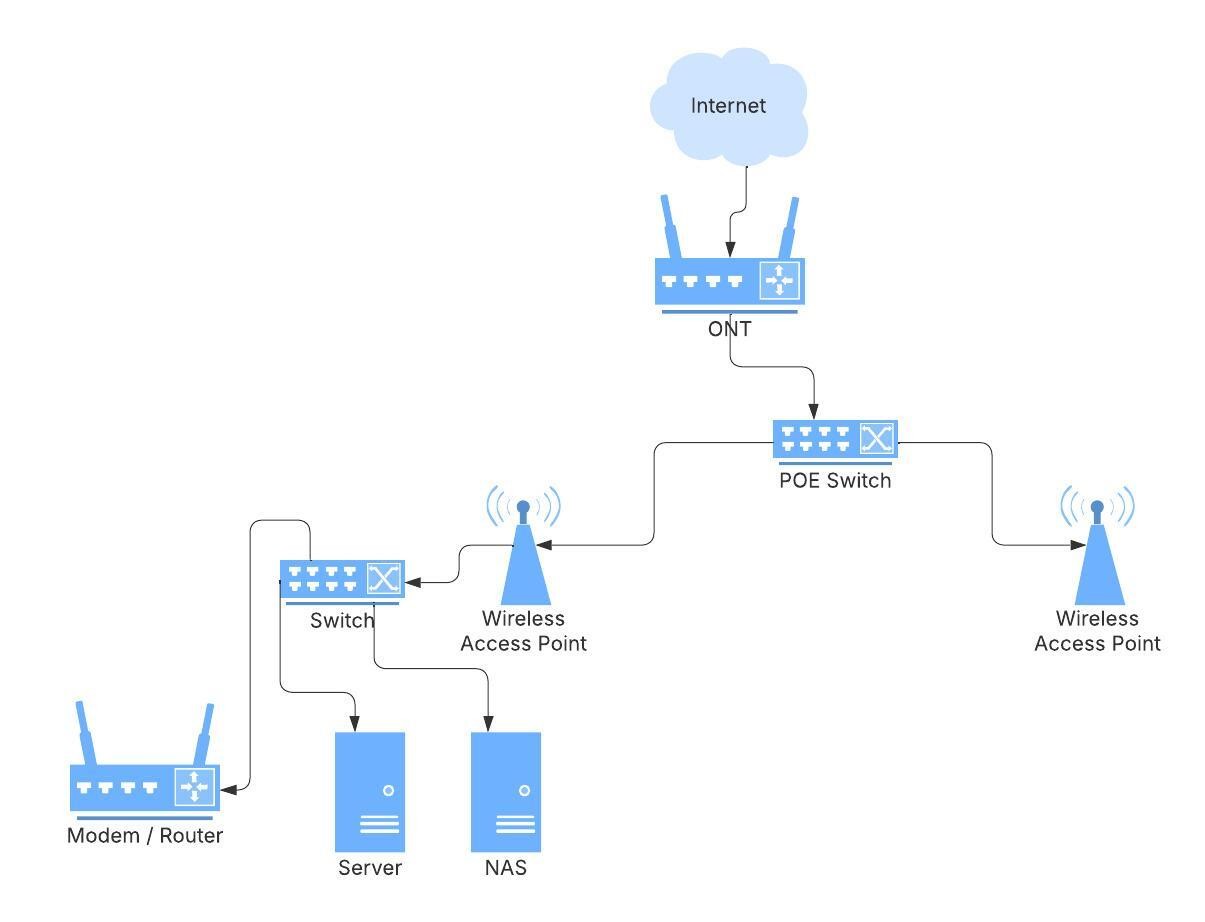

Future setup:

coffeebaron

6304 posts

Uber Geek
+1 received by user: 3566

Trusted

Lifetime subscriber

#3355711 20-Mar-2025 18:28

Rural IT and Broadband support.

Broadband troubleshooting and master filter installs.
Starlink installer - one month free: https://www.starlink.com/?referral=RC-32845-88860-71
Wi-Fi and networking
Cel-Fi supply and installer - boost your mobile phone coverage legally

Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com

JStew

58 posts

Master Geek
+1 received by user: 44

ID Verified

#3355712 20-Mar-2025 18:35

coffeebaron:

No

Short and simple. Thanks!

nzkc

1634 posts

Uber Geek
+1 received by user: 1041

#3355714 20-Mar-2025 18:37

I cant even see a reason to do this to be honest.

SomeoneSomewhere

1882 posts

Uber Geek
+1 received by user: 1086

Lifetime subscriber

#3355722 20-Mar-2025 19:22

Could technically be done with managed switches, VLANs, and no passthrough WAPs. Strongly not recommended because of misconfiguration risks and lower performance.

JStew

58 posts

Master Geek
+1 received by user: 44

ID Verified

#3355725 20-Mar-2025 19:59

nzkc:

I cant even see a reason to do this to be honest.

Same reason I needed to move the ONT. There is bugger all space in the plastic data cabinet in the garage. Can barely fit the modem let alone the modem, ONT and PoE switch. ONT is now in the loft above the garage but worried about the temperates that peak in there and don’t want to put any other kit up there.

Sounddude

I fix stuff!
1935 posts

Uber Geek
+1 received by user: 640

Trusted

2degrees

Lifetime subscriber

#3355726 20-Mar-2025 20:01

There are MAC address limits on your Bistream2 account. So having the switch connected to the ONT would mean the LFC would see all your mac addresses.

This could mean that the MAC for your router could drop out of the CHorus network, causing an outage.

You could get around this by using a managed switch, and putting the router uplink on its own VLAN, but those type of switches are more than a basic POE switch.

Geekzone

Want to support Geekzone and browse the site without the ads? Subscribe to Geekzone now (monthly, annual and lifetime options).

JStew

58 posts

Master Geek
+1 received by user: 44

ID Verified

#3355728 20-Mar-2025 20:15

Sounddude:

There are MAC address limits on your Bistream2 account. So having the switch connected to the ONT would mean the LFC would see all your mac addresses.

This could mean that the MAC for your router could drop out of the CHorus network, causing an outage.

You could get around this by using a managed switch, and putting the router uplink on its own VLAN, but those type of switches are more than a basic POE switch.

Cheers. Way more trouble than it is worth, will just leave it as is.

Mehrts

1112 posts

Uber Geek
+1 received by user: 984

Trusted

#3355736 20-Mar-2025 20:41

You say your cabinet is tight for space? Then Why not run an ethernet cable to a better location and then have the router etc going from that point?

froob

698 posts

Ultimate Geek
+1 received by user: 233

Lifetime subscriber

#3355766 20-Mar-2025 22:36

If you already have an outlet with two ethernet plugs somewhere else, you could move your router there, and leave just the PoE switch in the data cabinet. There's a diagram showing what I mean in this thread: https://www.geekzone.co.nz/forums.asp?forumid=66&topicid=318571&page_no=1#3337547

Guide: Installing Network Cabling in New Zealand Homes

nzkc

1634 posts

Uber Geek
+1 received by user: 1041

#3355827 21-Mar-2025 08:45

JStew:

Same reason I needed to move the ONT. There is bugger all space in the plastic data cabinet in the garage. Can barely fit the modem let alone the modem, ONT and PoE switch

Just stick it all on a shelf above the cabinet instead. Its the garage. It doesn't have to look amazing. Even so, you still can do a tidy good looking job with a tiny amount of effort.

nztim

4012 posts

Uber Geek
+1 received by user: 2710

ID Verified

Trusted

TEAMnetwork

Subscriber

#3355831 21-Mar-2025 09:03

Sounddude:

There are MAC address limits on your Bistream2 account. So having the switch connected to the ONT would mean the LFC would see all your mac addresses.

^^^^^^^^^^ This is the best answer on this thread

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

Quic Broadband

Move to New Zealand's best fibre broadband service (affiliate link). Free setup code: R587125ERQ6VE. Note that to use Quic Broadband you must be comfortable with configuring your own router.

Lias

5655 posts

Uber Geek
+1 received by user: 3978

ID Verified

Trusted

Lifetime subscriber

#3357335 25-Mar-2025 18:11

nzkc:

I cant even see a reason to do this to be honest.

The WAP's not so much, but single ONT -> Managed Switch -> Dual firewalls in Active/Passive HA is one possible reason.

I'm a geek, a gamer, a dad, a Quic user, and an IT Professional. I have a full rack home lab, size 15 feet, an epic beard and Asperger's. I'm a bit of a Cypherpunk, who believes information wants to be free and the Net interprets censorship as damage and routes around it. If you use my Quic signup you can also use the code R570394EKGIZ8 for free setup. Opinions are my own and not the views of my employer.

r0bbie

259 posts

Ultimate Geek
+1 received by user: 24

#3357341 25-Mar-2025 19:17

JStew:

nzkc:

I cant even see a reason to do this to be honest.

Same reason I needed to move the ONT. There is bugger all space in the plastic data cabinet in the garage. Can barely fit the modem let alone the modem, ONT and PoE switch. ONT is now in the loft above the garage but worried about the temperates that peak in there and don’t want to put any other kit up there.

Is there a patch panel in the plastic data cabinet?
