chimera

431 posts

Ultimate Geek


#196653 8-Jun-2016 07:29
Send private message

I've been looking at automating some roller blinds so researching this online. Found rollertrol seem to be reasonable and a little cheaper than somfy.

I emailed rollertrol they replied as follows. I'm preferring option 2 at the moment, any recommendations on a good zwave brand for NZ RF frequencies that is well priced and flexible? Needs to work with OpenHAB. Also links and price to said product?


You could go three different ways.

- Find a relay module that has 3 relays and works with OpenHab, and use it to trigger our group controller:

http://rollertrol.com/store/en/all/203-dc-motor-relay-control.html

- Find a z-wave relay module (NZ frequency, ours only work in North America) that works with OpenHab and use with our group controller

- Use the RPI as per our article (not OpenHab, it's OpenHomeNet):

http://rollertrol.com/raspberry-pi-shade-blind-motor-control-part1

We often ship to New Zealand by Canada Post expedited parcel (with insurance and tracking), and we enjoy doing business with our Commonwealth friends.The cost is $US 89 regardless of how many units you purchase. This covers the minimum shipment cost, and it takes 7 to 10 days.

If you would like to place an order, please let me know what you need and I will prepare a Paypal invoice that you can pay online with your credit card (no need to login) or your Paypal account. You can see a full range of our products in our online store (see menu): http://RollerTrol.com









View this topic in a long page with up to 500 replies per page Create new topic
 1 | 2 | 3
Disrespective
1852 posts

Uber Geek


  #1567698 8-Jun-2016 09:21
Send private message

The rollertol link indicates that it could be zigbee or bluetooth too, so that might open up more options for you if you can't find a z-wave solution.



I've not done it myself but have read a few posts in the Openhab community about controlling 433MHz devices via openhab using either HTTP or MQTT so that might be a preferrable option to adding z-wave relays into the mix.






SumnerBoy
1735 posts

Uber Geek

Subscriber

  #1567712 8-Jun-2016 09:40
Send private message

You could look into using a little ESP8266 node (Wemos maybe?) with 3xrelays for controlling their relay trigger module. Looks to be a pretty cost effective option. Just wish I could get power to my blinds!








chimera

431 posts

Ultimate Geek


  #1567719 8-Jun-2016 09:49
Send private message

SumnerBoy:



You could look into using a little ESP8266 node (Wemos maybe?) with 3xrelays for controlling their relay trigger module. Looks to be a pretty cost effective option. Just wish I could get power to my blinds!





Excuse my ignorance but how does that work?  Am I right in saying that the 12V blind motor goes to the relay, the relay is controlled by an ESP8266 (Wifi), OpenHAB sends (arguably via MQTT) signals to the ESP which triggers the relay to open/close the blinds??














SumnerBoy
1735 posts

Uber Geek

Subscriber

  #1567720 8-Jun-2016 09:53
Send private message

From my (albeit brief) look at their stuff, it looks like their relay trigger module is just a device which sends signals to their motor controllers via RF. You control which signals by signalling the 3 inputs via some external relays. Whether those relays are controlled by a Z-Wave device or RPi GPIOs or Arduino + relays seems up to you. I could well be wrong, but this seems like quite a good/open design and would be trivial to integrate with something like a Wemos.



How you trigger those relays using openHAB would be up to you, but yes, MQTT would seem the logical choice. Using something like Homie (for ESP) makes this even more trivial!


filboz
24 posts

Geek


  #1567727 8-Jun-2016 10:00
Send private message

I have a Vera3 ( as opposed to OpenHAB ) but just bought some TZ08 Z-wave controllers ( from Active Automation in AK ) and got the motors locally ( $130+GST each, they were 230V Acmeda ones ), they are working well....



You only need to make sure that you by the 4cm tubes on the blinds (which I got from KiwiBlinds in Wellington), it was pretty simple to remove the ends with the chain and replace with the motors.










SumnerBoy
1735 posts

Uber Geek

Subscriber

  #1567736 8-Jun-2016 10:11
Send private message

@filboz - where did you source your Acmeda motors from? Did you retrofit to existing roller blinds, or get them installed along with new blinds?


chimera

431 posts

Ultimate Geek


  #1567743 8-Jun-2016 10:28
Send private message

SumnerBoy:



From my (albeit brief) look at their stuff, it looks like their relay trigger module is just a device which sends signals to their motor controllers via RF. You control which signals by signalling the 3 inputs via some external relays. Whether those relays are controlled by a Z-Wave device or RPi GPIOs or Arduino + relays seems up to you. I could well be wrong, but this seems like quite a good/open design and would be trivial to integrate with something like a Wemos.



How you trigger those relays using openHAB would be up to you, but yes, MQTT would seem the logical choice. Using something like Homie (for ESP) makes this even more trivial!





Ah right I see.  So the "relay trigger module" is effectively just a "physical to RF" (via relay control) UP/DOWN/STOP device.  So that transmitter module is further controlled via a relay from pretty much any system you want (which supports turning on/off a relay) whether that be ZWave, Zigbee, RPi etc.  That does make it quite a nice open design.  I didn't like being tied down to a solution that had proprietary signalling like RTS from Somfy.  The only downside I can see with this particular module is it appears to be a "group" transmitter, so designed to operate all blinds connected via it in one go, rather than individually? Perhaps not that big of a deal anyhow.  I like the idea of custom building an ESP8266 with external relays, cheaper and something to do on a rainy day.  I've asked some more questions via email to the sales guy primarily about the group vs individual control.




















filboz
24 posts

Geek


  #1567744 8-Jun-2016 10:28
Send private message

I got the motors from a local guy in Wellington (PM me for his details), the blinds came from KiwiBlinds (Johnsonville, Wellington) they didn't know I was automating them.... Just make sure they come on the right tube....



On a sidenote, also I tried some DHS Controllers (from OZ, DHS-ZW-TMC-01) but they have stopped working with my Vera3, haven't had a chance to figure out why... they have a percentage up/down value, they ones I have now just open/close or go up/down manually.


Blanch
253 posts

Ultimate Geek


  #1567865 8-Jun-2016 12:17
Send private message

I'm going home tonight to measure my blind tubes ;)


filboz
24 posts

Geek


  #1567878 8-Jun-2016 12:34
Send private message

Blanch:



I'm going home tonight to measure my blind tubes ;)

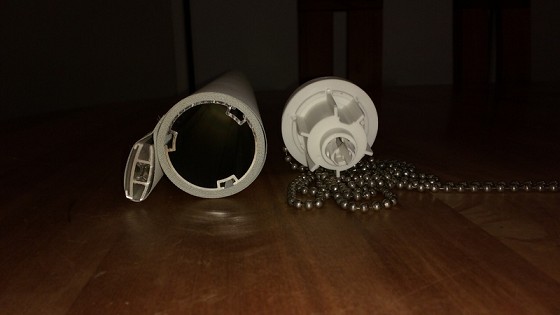

I just took a photo of my ones .... Click to see full size they have a diameter of 4cm (inside), you'll also need the ridges ....


chimera

431 posts

Ultimate Geek


  #1567888 8-Jun-2016 12:46
Send private message

filboz:



Blanch:



I'm going home tonight to measure my blind tubes ;)









I just took a photo of my ones they have a diameter of 4cm (inside), you'll also need the ridges ....

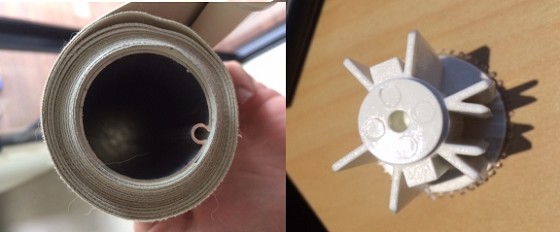

Here's an image of mine, inside diameter also 40mm (possibly 38mm)
















Blanch
253 posts

Ultimate Geek


  #1567892 8-Jun-2016 12:53
Send private message
filboz
24 posts

Geek


  #1567898 8-Jun-2016 13:02
Send private message

chimera:







Here's an image of mine, inside diameter also 40mm (possibly 38mm)









Ok here is a blind from another room and I think it measures 38mm (ish), the motor (Acmeda S45) won't fit in this one, but there might be some that do...



Click to see full size


Blanch
253 posts

Ultimate Geek


  #1568296 8-Jun-2016 21:36
Send private message











And my tubes are different again, but it is 40mm.


SumnerBoy
1735 posts

Uber Geek

Subscriber

  #1568297 8-Jun-2016 21:38
Send private message

Who made those Blanch? They look very similar to mine which are from Window Treatments in ChCh.
