[Snap] Changes in sync speed over time, does this seem normal?

Forums › 2degrees (including Slingshot, Orcon, Flip, Stuff Fibre, MyRepublic, 2talk and Vocus) › [Snap] Changes in sync speed over time, does this seem normal?

samsam

167 posts

Master Geek

#127054 28-Jul-2013 18:10

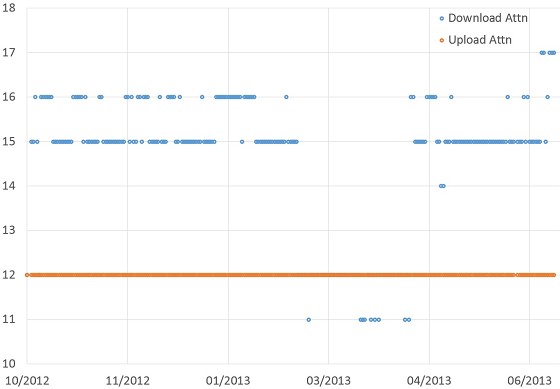

I've been getting my fritz box to email me with its setting daily, recently got a chance to look at the number. I haven't changed any of the setting since the initial set-up but there is a distinct change in sync speed 3 months ago with a 9mbit drop in sync speed. Is this normal? I've attached a figure of the plot (note there are two separate axis upload on the right)

No master splitter but only one line is connected directly to the FritzBox.
VDSL connection, in wellington CBD (near te papa).

PeterReader

6018 posts

Uber Geek

Trusted

Geekzone

Lifetime subscriber

#867480 28-Jul-2013 18:10

Hello... Our robot found some keywords in your post, so here is an automated reply with some important things to note regarding broadband speeds.

If you are posting regarding DSL speeds please check that

- you have reset your modem and router

- your PC (or other PCs in your LAN) is not downloading large files when you are testing

- you are not being throttled by your ISP due to going over the monthly cap

- your tests are always done on an ethernet connection to the router - do not use wireless for testing

- you read this topic and follow the instructions there.

Make sure you provide information for other users to help you. If you have not already done it, please EDIT your post and add this now:

- Your ISP and plan

- Type of connection (ADSL, ADSL2, VDSL)

- Your modem DSL stats (do not worry about posting Speedtest, we need sync rate, attenuation and noise margin)

- Your general location (or street)

- If you are rural or urban

- If you know your connection is to an exchange, cabinet or conklin

- If your connection is to a ULL or wholesale service

- If you have done an isolation test as per the link above

Most of the problems with speed are likely to be related to internal wiring issues. Read this discussion to find out more about this. Your ISP is not intentionally slowing you down today (unless you are on a managed plan). Also if this is the school holidays it's likely you will notice slower than usual speed due to more users online.

A master splitter is required for VDSL2 and in most cases will improve speeds on DSL connections. Regular disconnections can be a monitored alarm or a set top box trying to connect. If there's an alarm connected to your line even if you don't have an alarm contract it may still try to connect so it's worth checking.

I recommend you read these two blog posts:

- Is your premises phone wiring impacting your broadband performance? (very technical)

- Are you receiving a substandard ULL ADSL2+ connection from your ISP?

I am the Geekzone Robot and I am here to help. I am from the Internet. I do not interact. Do not expect other replies from me.

These links are referral codes: Sharesies | Mighty Ape

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#867522 28-Jul-2013 20:11

for vdsl, the rates dont look so pretty.. almost able to bet this is simply DLM doing its thing.

as peter reader asked, line stats?

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

samsam

167 posts

Master Geek

#867650 29-Jul-2013 08:57

the S/N is 16 (sometimes 15). Line attenuation 15-16 but drops down to 11 for a few months.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#867662 29-Jul-2013 09:53

from 16 to 11, is a decent change in attention.. something doesnt seem right there...

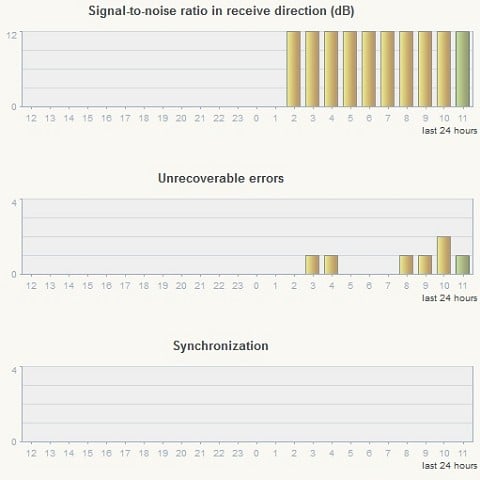

take a screenshot of your dsl stats, and the graphed pages?

more so interested in what your line is currently looking like rather the weird things its done over time currently.. your attention, with thoses speeds just doesnt sound right.

rather excessive resyncs there too...

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

sidefx

3711 posts

Uber Geek

Trusted

#867665 29-Jul-2013 09:58

samsam:
No master splitter but only one line is connected directly to the FritzBox.

Can you just confirm what you mean by this? Are there any other jackpoints in the house (even if they have nothing plugged into them?)

"I was born not knowing and have had only a little time to change that here and there." | Octopus Energy | Sharesies
- Richard Feynman

samsam

167 posts

Master Geek

#867674 29-Jul-2013 10:05

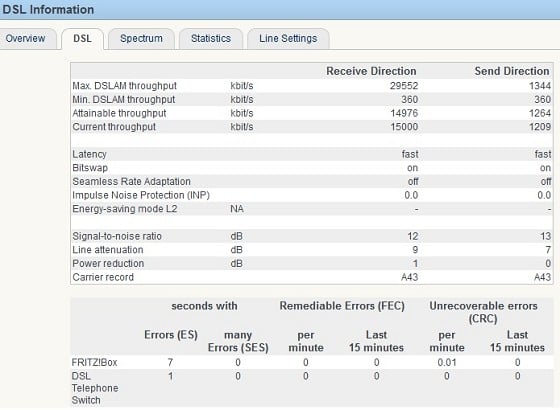

Right now I am on an ADSL2+ connection, I wanted to see if there was much different in speed. I've attached my stats for ADSL. I have put through an order to change back to VDSL, so can post an update in a few days hopefully

There are a bunch of other jack-points. When the Chorus tech came to set it up, he disconnected these from the splitter (Live in an apartment building so it was located in a cupboard, and was just a case of pulling out the other wires). So the line comes in, and then connects to the splitter, which only has the one jack point still connected .

How do you know there was lots of resyncs? the data I collected was just from the daily email the fritzbox sends

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#867681 29-Jul-2013 10:21

assumption on the resyncs is made simply by your sync speed changes. a resync would occur for a change like that.

your line doesnt look too bad there, unfortunately, while on adsl2, its a bit harder to see what the issue exactly is.

how about your spectrum? (once again, limited by the lack of a vdsl profile here..)

at 9db on adsl2, ild expect about a 11~12db on vdsl.. which should still get pretty good speeds, and almost certainly the full upstream.. your connection only ever seemed to get near 1/4 of that..

your error rates look fine, there, but once again, adsl, cant even begin to pull an assumption from that.

your adsl speeds seem a little low for 9db however... what are your performance settings on? dragged back to stability by any chance?

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

samsam

167 posts

Master Geek

#867699 29-Jul-2013 10:38

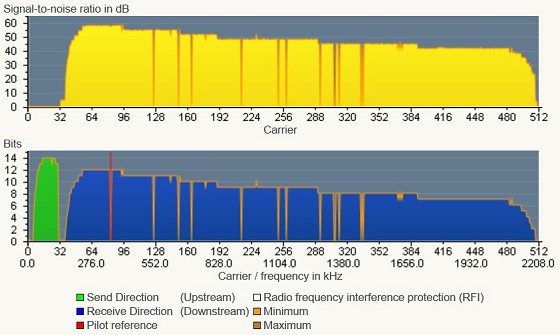

Settings are on Maximum Performance. I've attached a picture of the spectrum. I did think it was a bit low, do you think a master splitter would help performance?

The ADSL sync speed is the same on the FRITZbox and also a netcomm modem that I have.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#867702 29-Jul-2013 10:47

no, if you do indeed have a single connection, a filter wont really do anything.. no point in filtering nothing right?

used to looking at vdsl spectrum, yours looks huge compared to one..

fair few dips there, your bits seem to taper off real fast if that trend carries throughout, theres not much of the vdsl spectrum to be had there..

get your connection changed over, then we can have a proper look at the rates.. could be the quality of the copper in the apartment possibly..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

samsam

167 posts

Master Geek

#867703 29-Jul-2013 10:49

okay, thanks. Ill post some updated pictures when it gets changed over.

Cheers
