UFB, managed switch and the NETGEAR R7000

Forums › Slingshot and CallPlus › UFB, managed switch and the NETGEAR R7000

b4dc0mp4ny

3 posts

Wannabe Geek

Topic # 150568 27-Jul-2014 00:21

So I've done a little reading here and there on the forum and other sites, put two and two together and inherited a few things. I have a Planet FGSW-2620PVM managed switch, a NETGEAR R7000, and Slingshot fibre running over their atrocious Tripleplay150 to the ONT. I'm not a super network engineer but I am smart enough and can follow directions. Just looking at the ingredients in my recipe can anyone tell me if I can do away with the ISP's offering and get the R7000 to run the show, maybe using a Linksys PAP2T-NA for VOIP phone services or should I just suck it up till something consumer comes along with VLAN taggable?

And yes, I'm not a typical 'end-point user', I have lots of internet hungry toys and gaming consoles always on and the tripleplay drops its nuts on a daily/weekly basis (third faulty one I've had from my ISP).

PeterReader

5459 posts

Uber Geek
+1 received by user: 240

Trusted

Geekzone

Lifetime subscriber

Reply # 1096415 27-Jul-2014 00:21

Hello... Our robot found some keywords in your post, so here is an automated reply with some important things to note regarding broadband speeds.

If you are posting regarding DSL speeds please check that

- you have reset your modem and router

- your PC (or other PCs in your LAN) is not downloading large files when you are testing

- you are not being throttled by your ISP due to going over the monthly cap

- your tests are always done on an ethernet connection to the router - do not use wireless for testing

- you read this topic and follow the instructions there.

Make sure you provide information for other users to help you. If you have not already done it, please EDIT your post and add this now:

- Your ISP and plan

- Type of connection (ADSL, ADSL2, VDSL)

- Your modem DSL stats (do not worry about posting Speedtest, we need sync rate, attenuation and noise margin)

- Your general location (or street)

- If you are rural or urban

- If you know your connection is to an exchange, cabinet or conklin

- If your connection is to a ULL or wholesale service

- If you have done an isolation test as per the link above

Most of the problems with speed are likely to be related to internal wiring issues. Read this discussion to find out more about this. Your ISP is not intentionally slowing you down today (unless you are on a managed plan). Also if this is the school holidays it's likely you will notice slower than usual speed due to more users online.

A master splitter is required for VDSL2 and in most cases will improve speeds on DSL connections. Regular disconnections can be a monitored alarm or a set top box trying to connect. If there's an alarm connected to your line even if you don't have an alarm contract it may still try to connect so it's worth checking.

I recommend you read these two blog posts:

- Is your premises phone wiring impacting your broadband performance? (very technical)

- Are you receiving a substandard ULL ADSL2+ connection from your ISP?

I am the Geekzone Robot and I am here to help. I am from the Internet. I do not interact. Do not expect other replies from me.

sbiddle

26196 posts

Uber Geek
+1 received by user: 5796

Moderator

Trusted

Biddle Corp

Lifetime subscriber

Reply # 1096495 27-Jul-2014 09:51

I'm not entirely sure what you mean by "something consumer" but there are lots of routers out there that support VLAN tagging.

Try Wrike: fast, easy, and efficient project collaboration software

b4dc0mp4ny

3 posts

Wannabe Geek

Reply # 1096682 27-Jul-2014 17:26

Cool so... with what I do have is it possible and how?

sbiddle

26196 posts

Uber Geek
+1 received by user: 5796

Moderator

Trusted

Biddle Corp

Lifetime subscriber

Reply # 1096687 27-Jul-2014 17:46

If your switch support VLANs it's easily done, you just need to configure VLAN10 on one of the ports. I can't offer any advice on doing it as I've never touched a Planet switch.

b4dc0mp4ny

3 posts

Wannabe Geek

Reply # 1097395 28-Jul-2014 19:52

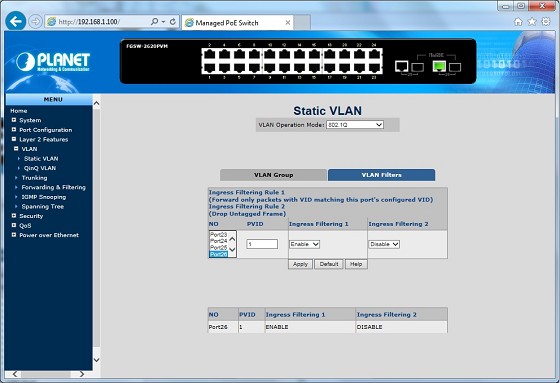

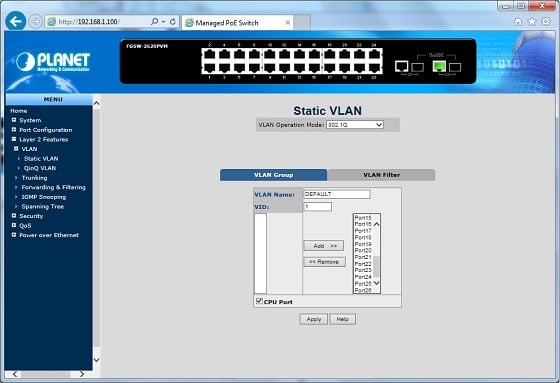

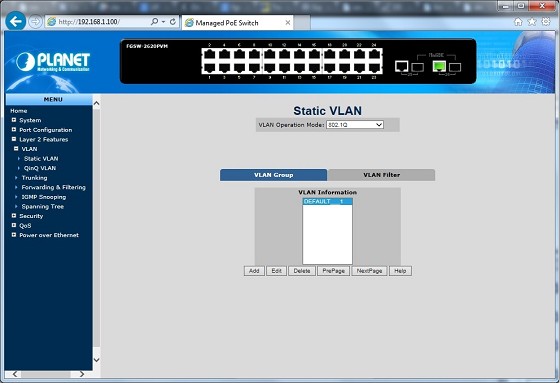

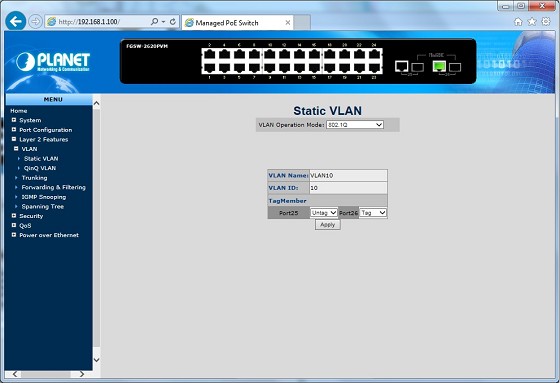

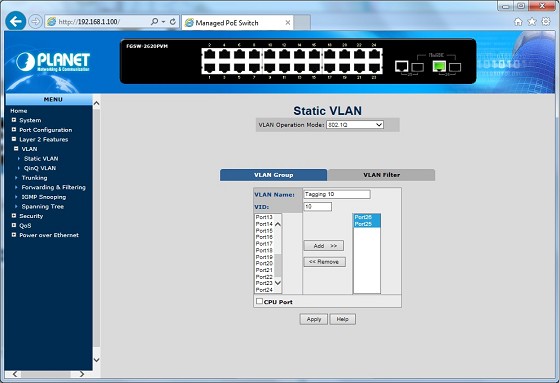

Thought a few snaps of the config page might help. Here's a pic by pic of me adding a vlan 10 tagging group config so the R7000 WAN port is connected to switch port 25 and the ONT port is connected to port 26

I tried that and then connected LAN1 on the R7000 to Port 24 on the switch. the R7000 didn't like that and still showed up as unconnected to the internet. What did I do wrong? Also haven't touched trunking, wasn't sure if I needed to.
