Heat Pump - Quality of Installation

Forums › Home Workshop DIY › Heat Pump - Quality of Installation

quebec

852 posts

Ultimate Geek

#320121 8-Jul-2025 19:03

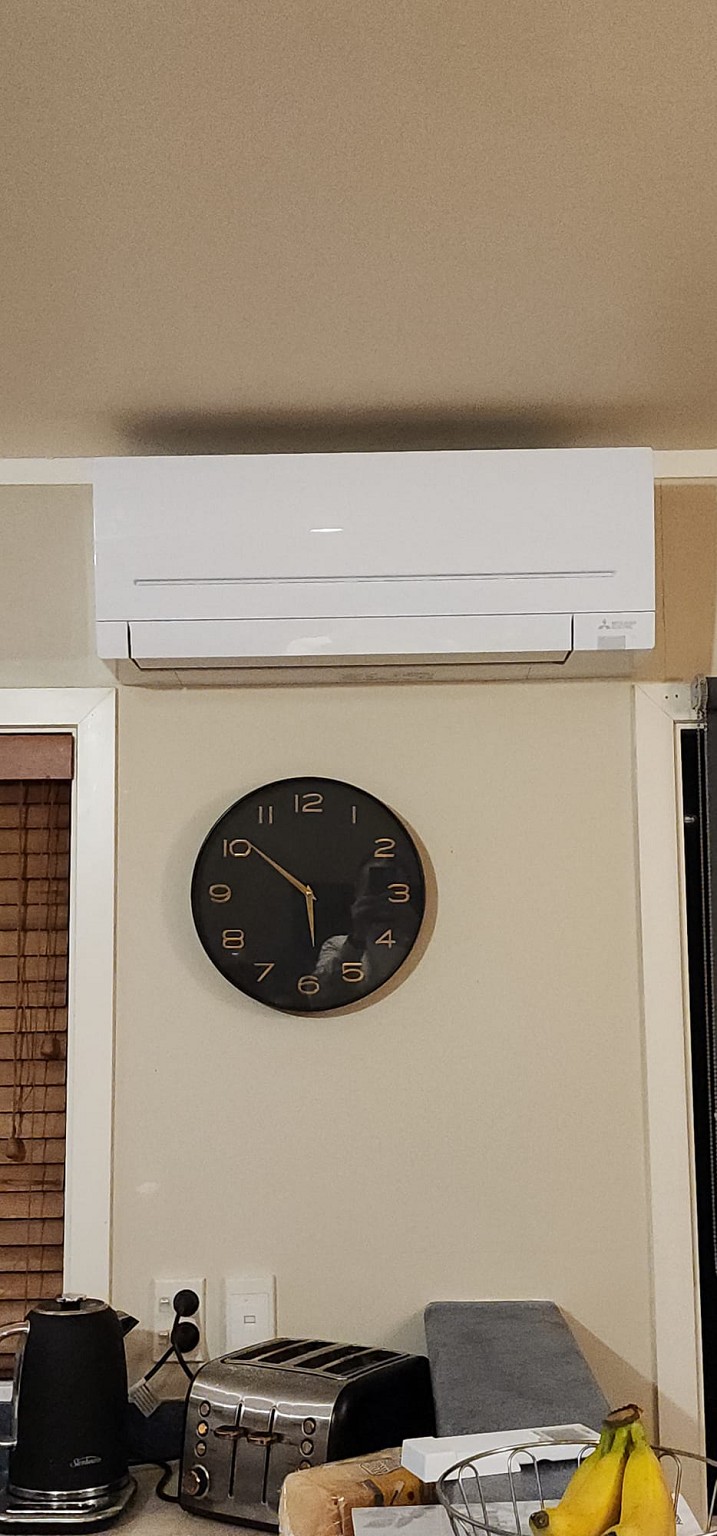

So just got heat pump installed by Design Air, amazing Google Reviews hence I picked them over someone else, plus they were giving 5 year workmanship warranty too, although couple of days before install they told me that I need to have it serviced by them every year for $150.00 which I didn't agree to, never mentioned this at the time of quote. Also, COC was completely wrong with most things not filled and no signature and date. This has now been fixed, thanks to gregmcc

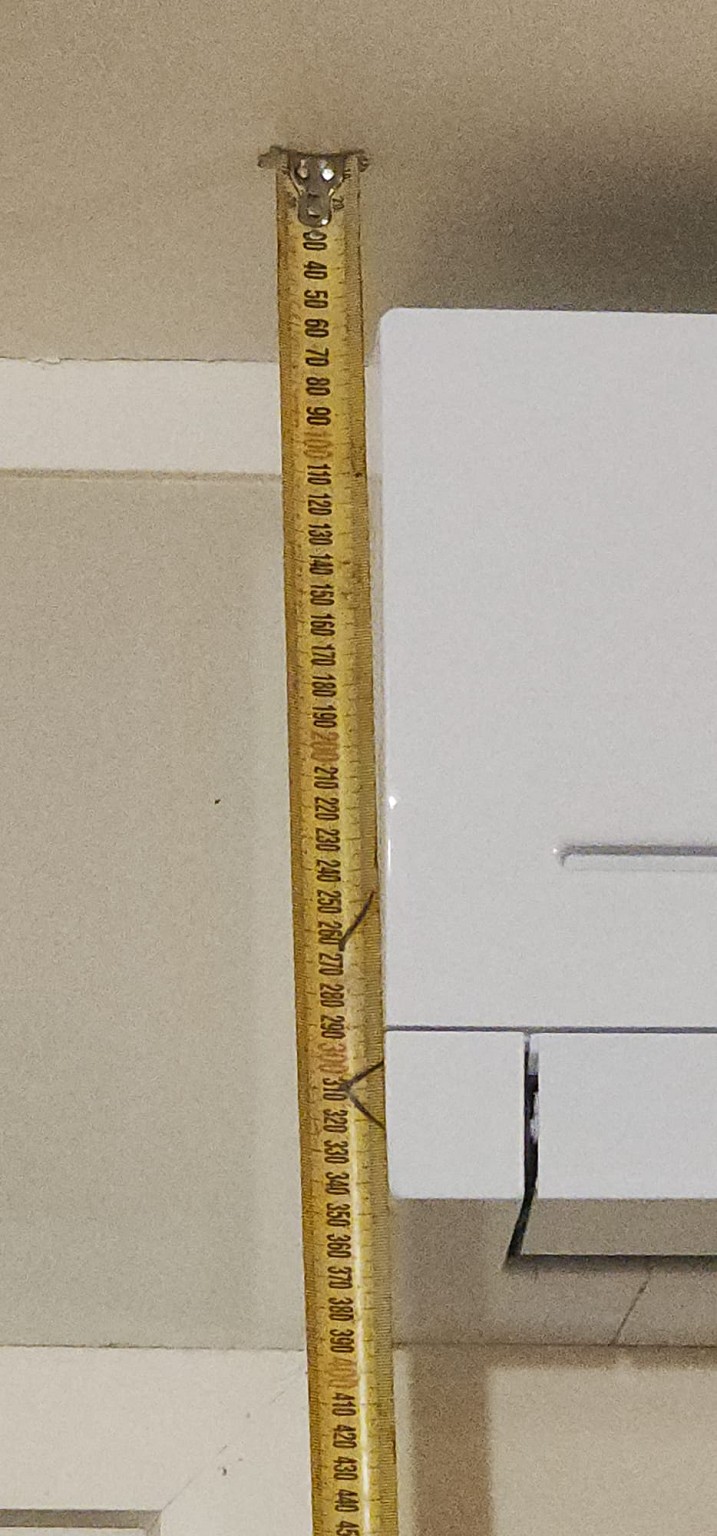

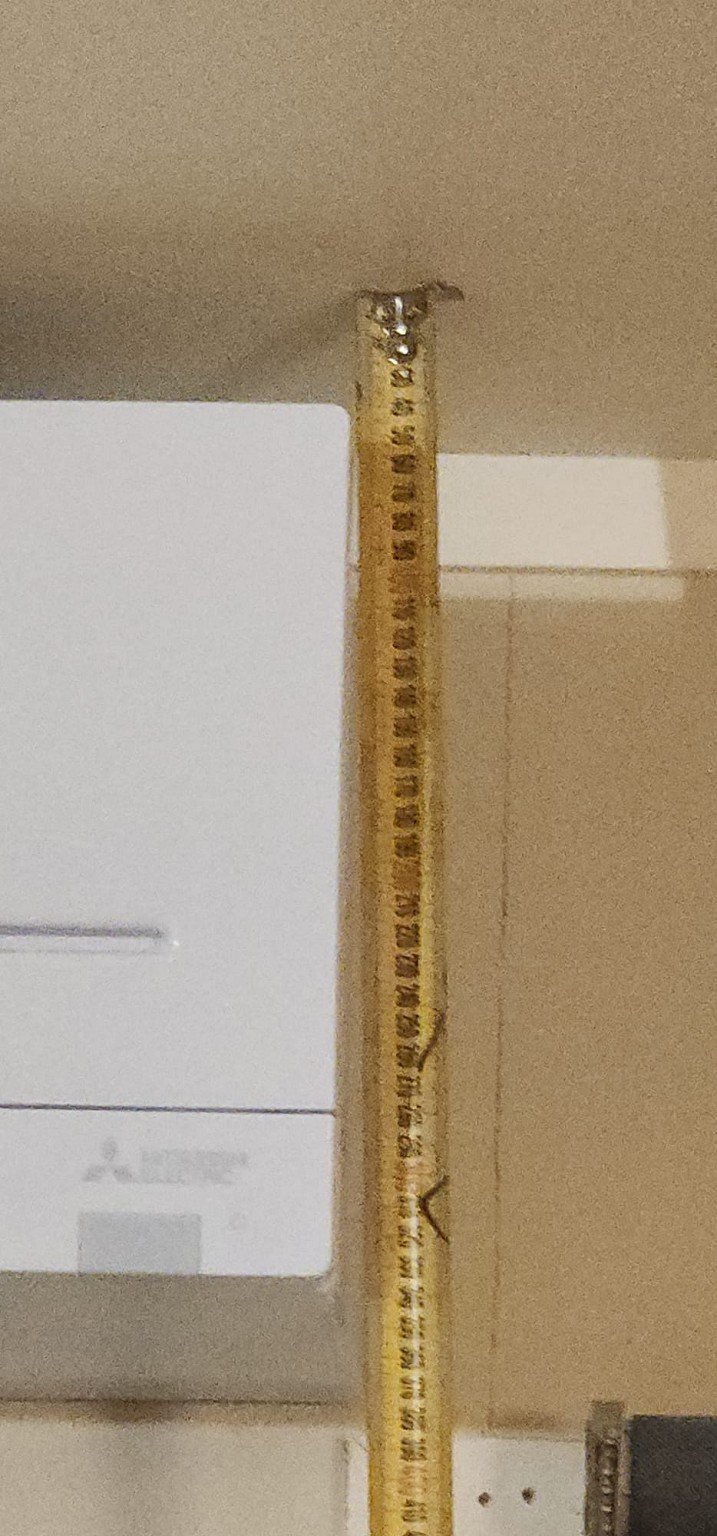

Is it just me or it doesn't look level? I still have to pay rest of the 50%, is this something to create a fuss about or let it go & pay them the balance? I don't want to be the fussy customer but shouldn't it be level, especially when clearance was tight, needs to be 55-60cm from top. I guess nothing can be done now.

1 | 2

11386 posts

Uber Geek

Trusted

Lifetime subscriber

#3392118 8-Jul-2025 19:18

A tape measure doesn't show level. Your ceiling could well be out of level. Put a spirit level on it.

rscole86

4973 posts

Uber Geek

Moderator

Trusted

Lifetime subscriber

#3392121 8-Jul-2025 19:35

As mentioned, use a spirit level.

Also, how does it look compared to the frames either side, if they're not parallel, different heights etc, then they may have done the best they could aesthetically.

tweake

2391 posts

Uber Geek

#3392123 8-Jul-2025 19:46

its important to get the level right because of the drain pan.

assuming for one sec that the ceiling is level, yours would be sloping the wrong way (i'm assuming the drain is on the right hand side). that can cause for water drainage problems when using aircon.

quebec

852 posts

Ultimate Geek

#3392133 8-Jul-2025 20:09

It’s a rental so bit hard to check level etc. Have to arrange time etc. Surely the installer would have checked the level, isn’t it? Yeah pipes come out of the right side.

WWHB

35 posts

Geek

#3392143 8-Jul-2025 20:28

A heat pump unit has a recommended clearance of 150 to 200mm from the ceiling. This allows for air flow to move freely and spread evenly. I just recently done a course for a Refrigerant fillers licence and they highlighted the poor install in the office we were using

Handle9

11386 posts

Uber Geek

Trusted

Lifetime subscriber

#3392144 8-Jul-2025 20:34

WWHB:

A heat pump unit has a recommended clearance of 150 to 200mm from the ceiling. This allows for air flow to move freely and spread evenly. I just recently done a course for a Refrigerant fillers licence and they highlighted the poor install in the office we were using

It does but that clearly isn’t possible where OP has had the indoor unit mounted. If that’s the available wall then it is what it is. Retrofits are often imperfect due to the space not being designed for the machine.

quebec

852 posts

Ultimate Geek

#3392151 8-Jul-2025 21:13

tweake:

its important to get the level right because of the drain pan.

assuming for one sec that the ceiling is level, yours would be sloping the wrong way (i'm assuming the drain is on the right hand side). that can cause for water drainage problems when using aircon.

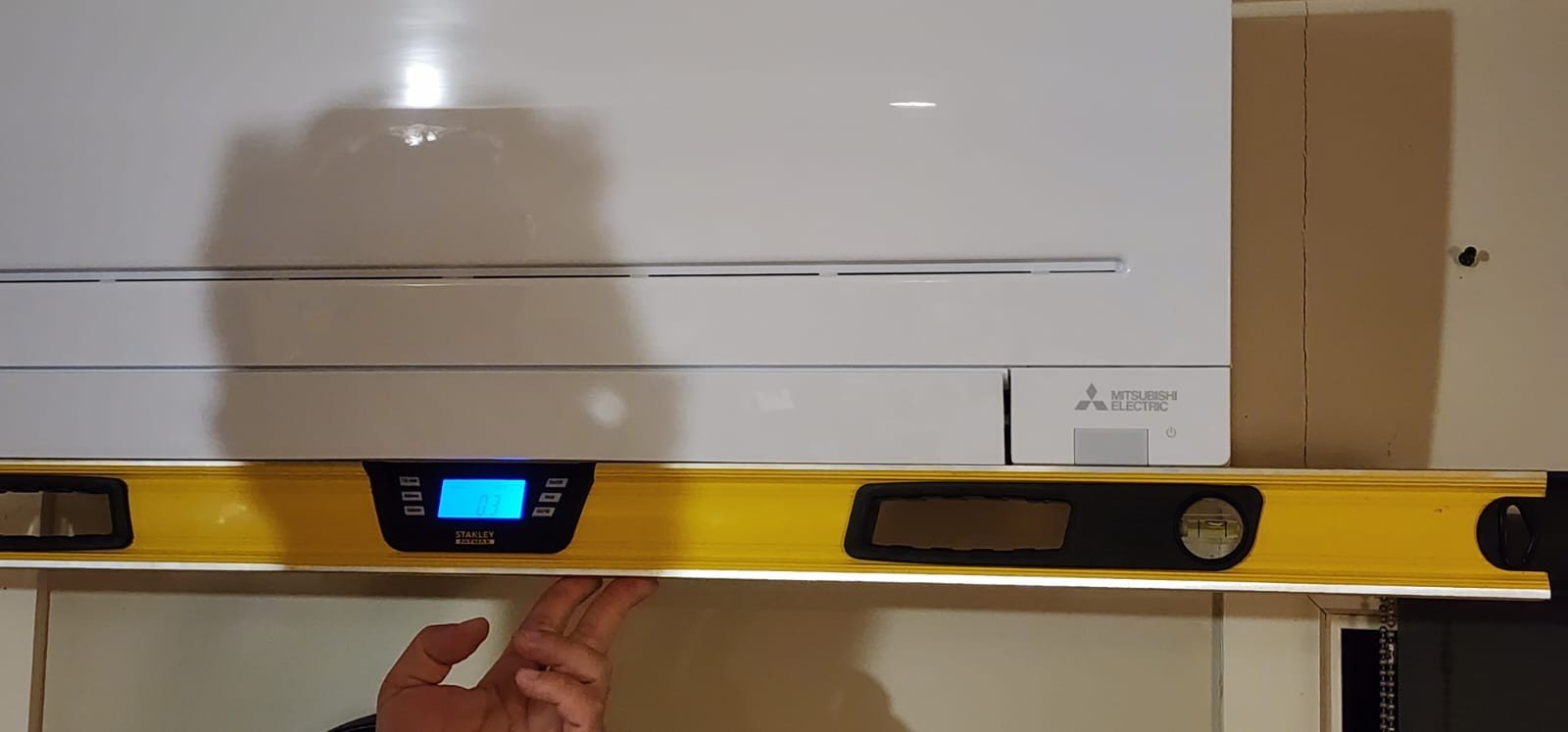

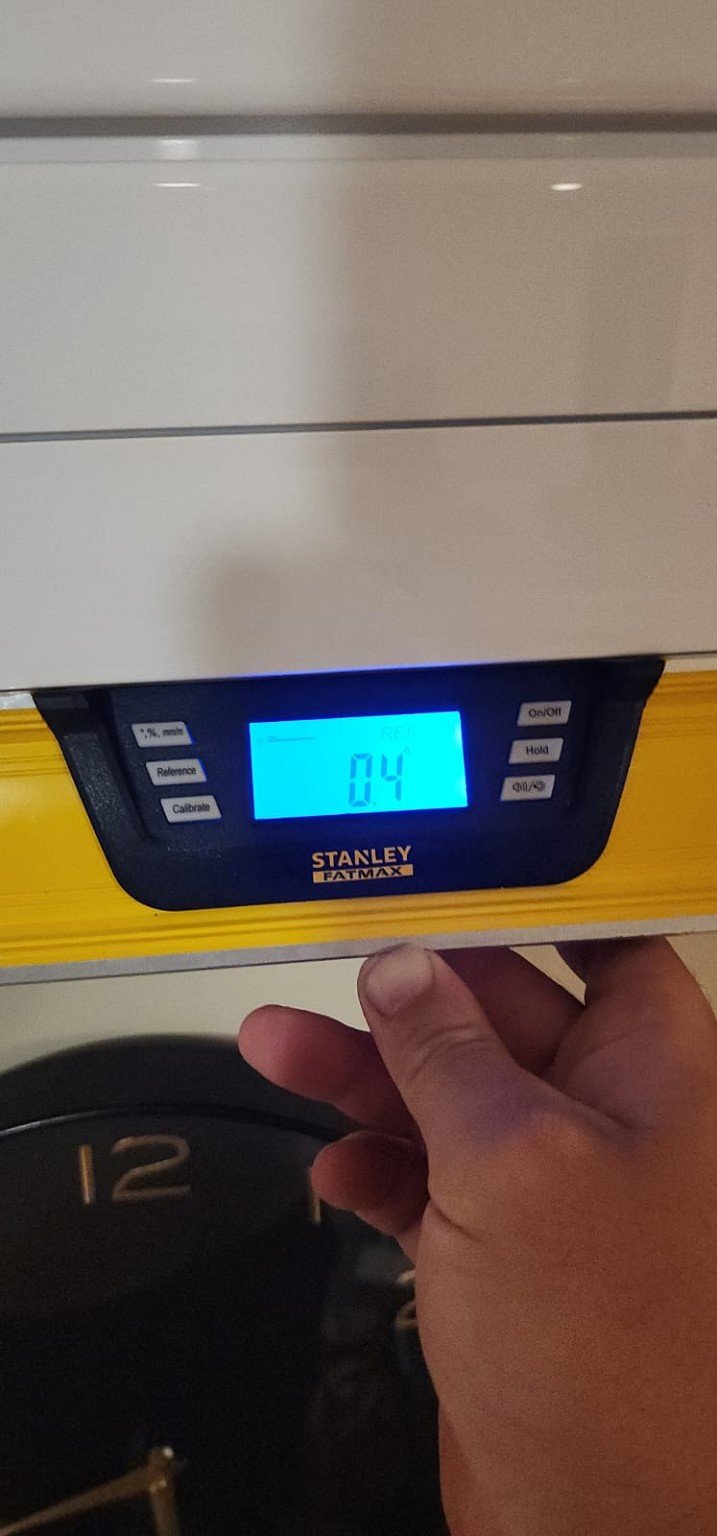

Doesn't look like it's level. Out of level falling to the left as suspected and shown by tape measure. guy doing the install had a bandage on one knee and told me after mounting it that he's on ACC due to knee injury but has to help out. Should I get then back to fix it before paying the balance? Can it be fixed? I'm not too worried about the looks but if there might be a problem with drainage in future, that's a concern. Is there a test that can be done to make sure water is draining out? Running on cool for a while & checking if water comes out of the drip pipe?

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

quebec

852 posts

Ultimate Geek

#3392152 8-Jul-2025 21:18

Handle9:

WWHB:

A heat pump unit has a recommended clearance of 150 to 200mm from the ceiling. This allows for air flow to move freely and spread evenly. I just recently done a course for a Refrigerant fillers licence and they highlighted the poor install in the office we were using

It does but that clearly isn’t possible where OP has had the indoor unit mounted. If that’s the available wall then it is what it is. Retrofits are often imperfect due to the space not being designed for the machine.

As per Mitsubishi minimum required clearance is 60mm

Handle9

11386 posts

Uber Geek

Trusted

Lifetime subscriber

#3392155 8-Jul-2025 21:30

Get them back to fix it. That's pretty shit work.

quebec

852 posts

Ultimate Geek

#3392156 8-Jul-2025 21:33

Handle9:

Get them back to fix it. That's pretty shit work.

They will probably disagree. Wonder what will happen if I refuse to pay the balance? Can it be fixed though, hope they don't make it worse? Looking at the reviews on Google I'm sure the company has other installers who know what they are doing.

Handle9

11386 posts

Uber Geek

Trusted

Lifetime subscriber

#3392157 8-Jul-2025 21:35

quebec:

Handle9:

Get them back to fix it. That's pretty shit work.

They will probably disagree. Wonder what will happen if I refuse to pay the balance? Can it be fixed though, hope they don't make it worse? Looking at the reviews on Google I'm sure the company has other installers who know what they are doing.

They can disagree all they like. It's not installed properly and you want it installed level. You aren't asking for anything unreasonable.

It's a minor fix. They just need to adjust the bracket position, they can use the same penetration.
