Exposed bus bars in a low voltage cabinet?

Forums › Home Workshop DIY › Exposed bus bars in a low voltage cabinet?

johno1234

3551 posts

Uber Geek
+1 received by user: 3008

#324987 22-Jun-2026 21:25

Hi all,

i inherited a system of garden and landscaping lights in our house. The wiring is both 12VDC on the PIRs and some lights but 24VDC on most lights. All the wiring leads back to a cabinet in the basement with has two DC power supplies and a relay driven by the PIRs. It’s a bit messy with wire connectors all over the place. Am thinking about installing 24V, 12V and common screw terminal bus bars. Is it acceptable practice to have exposed low voltage bus bars? There is no exposed mains power. The power supplies are plugged into a double power socket.

MikeAqua

8328 posts

Uber Geek
+1 received by user: 4057

#3505376 23-Jun-2026 09:51

Safe uncovered but it's better to cover them. Not to avoid injury as much as to avoid someone causing a short circuit with a tool or whatever.

If you head to JayCar, Burnsco, Marine Deals or Smart Marine sites, and find busbars designed for DC low voltage systems that come with a clear plastic cover. Marine stuff is spendy ... a cheap 6-way covered busbar will cost ~$35. But it will be nickel plated and won't corrode. Pair that with some ring terminals and heat shrink, and it will last for a very long time.

A cheap option is to go with something like this brass busbar and leave it uncovered. Or if you have a set of taps, you could make your own from a copper bar.

Mike

johno1234

3551 posts

Uber Geek
+1 received by user: 3008

#3505388 23-Jun-2026 10:15

Plan to use bootlace ferrules and screw terminals as the dc garden cable is 4mm2 with stray strands wanting to go everywhere.

gzt

19190 posts

Uber Geek
+1 received by user: 8302

Lifetime subscriber

#3505392 23-Jun-2026 10:32

You'll want to add a fuse for sure

richms

29323 posts

Uber Geek
+1 received by user: 10402

Trusted

Lifetime subscriber

#3505428 23-Jun-2026 12:18

You mean extra low voltage.

I have done similar but its all 12v from some dell server power supplies.

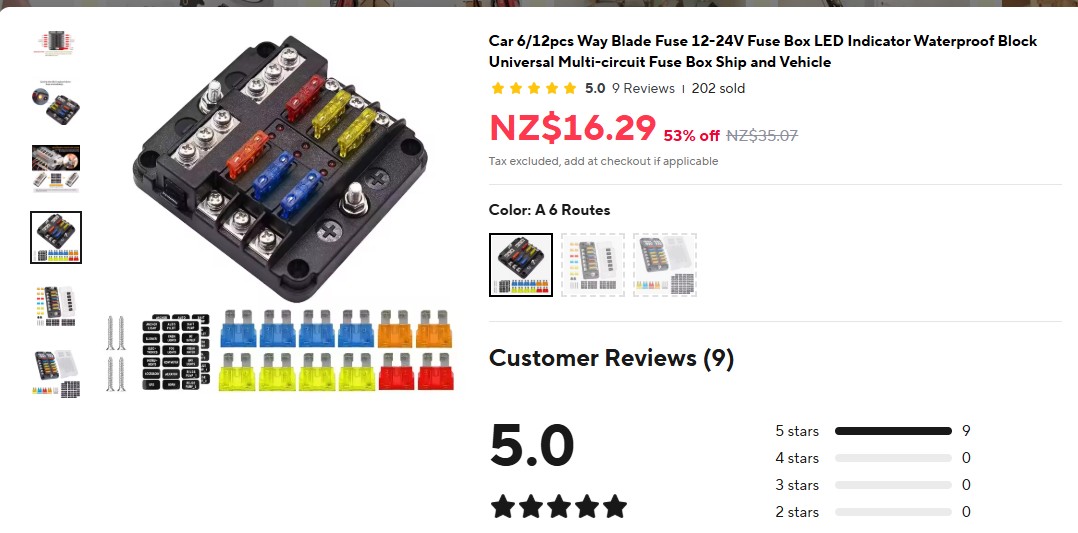

I got some car fuse blocks that have 6 blade fuses, and also 6 negative terminals available on it.

The PSU can do 1200W, so 100A available so fuses were a must for the small stuff going out to the lights.

Richard rich.ms

MikeAqua

8328 posts

Uber Geek
+1 received by user: 4057

#3505454 23-Jun-2026 13:41

johno1234:

Plan to use bootlace ferrules and screw terminals as the dc garden cable is 4mm2 with stray strands wanting to go everywhere.

That brass screw-terminal busbar I linked to would work fine with ferrules.

Mike

johno1234

3551 posts

Uber Geek
+1 received by user: 3008

#3505625 23-Jun-2026 19:29

MikeAqua:

johno1234:

Plan to use bootlace ferrules and screw terminals as the dc garden cable is 4mm2 with stray strands wanting to go everywhere.

That brass screw-terminal busbar I linked to would work fine with ferrules.

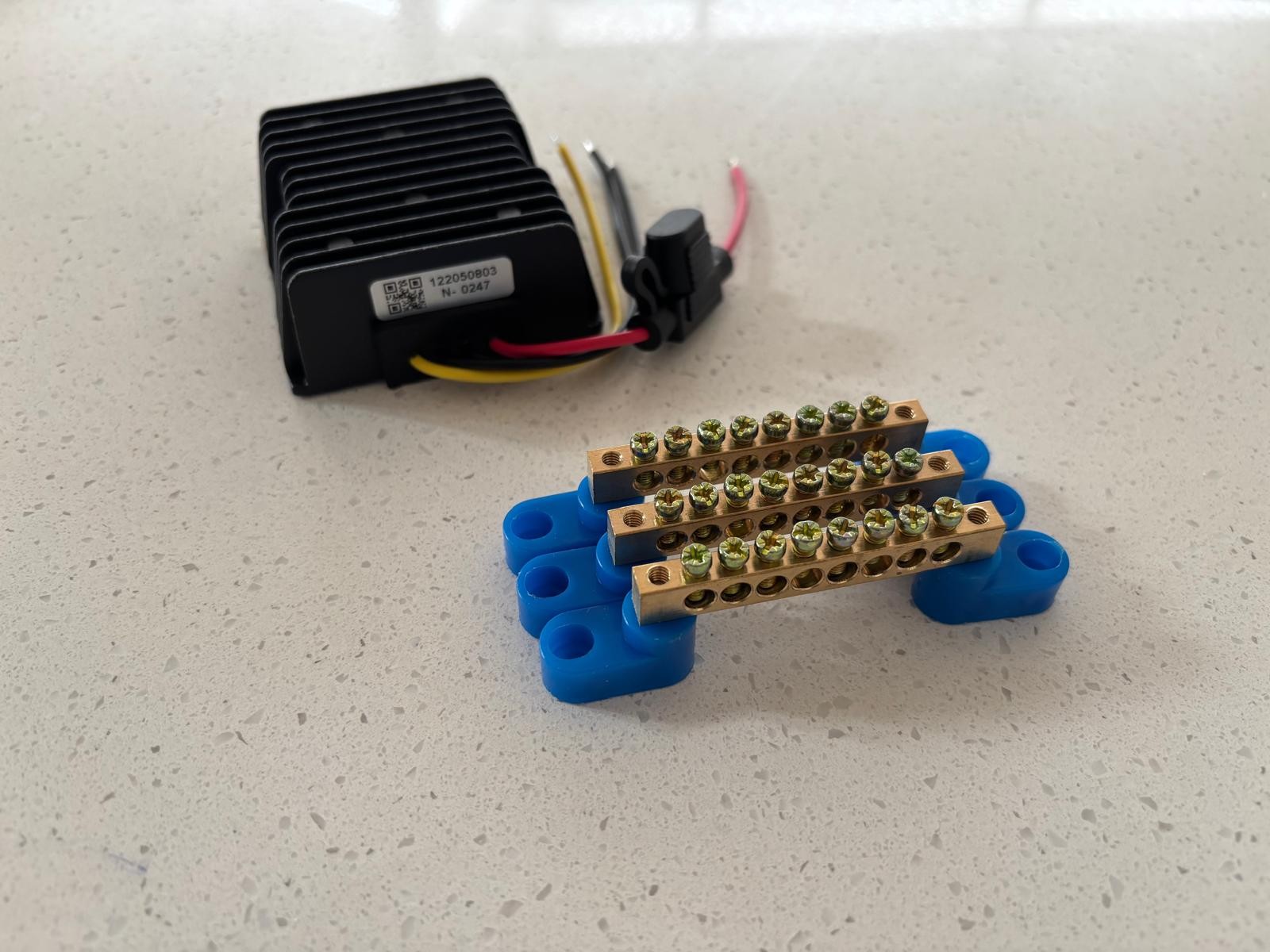

Yep that’s the form factor I’m using. Not shielded but in an enclosure so I’m OK with it.
