EPG Collector v4.0

Forums › Home Theatre (including HTPC and EPG Collector) › EPG Collector v4.0

SJB

2945 posts

Uber Geek
Inactive user

#105692 8-Jul-2012 11:41

EPG Collector V4.0 is now available on Sourceforge.

This version adds the ability to enhance the data received from the broadcaster with data downloaded from the internet.

The additional data includes cast and crew, posters, star ratings and programme categories. It is most effective when used to import directly to WMC but is included in the XMLTV file as well.

See the ReadMe on Sourceforge for more details.

Tuning files have also been included for the remaining NZ terrestrial changes.

Please not that the direct import to WMC does not currently work in this version or v3.2 under Windows 8 Release Preview. Collections that do not use this feature do however work.

This issue will be addressed in the next release.

All previous fixpacks have been included in this version which is 100% compatable with earlier versions.

1 | 2 | 3 | 4 | 5

BDFL - Memuneh
79255 posts

Uber Geek

Administrator

ID Verified

Trusted

Geekzone

Lifetime subscriber

#652599 8-Jul-2012 19:14

Highly recommended. Instead of having the old EPG Collector and a program to load the EPG I now have all in one pass.

SJB

2945 posts

Uber Geek
Inactive user

#652613 8-Jul-2012 19:34

And a big thank you to all the brave souls who were beta testers.

guideprovider

10 posts

Wannabe Geek

#653695 10-Jul-2012 18:49

I will update my listing source to use this when I return from holiday in a couple of weeks.

Huntakillaz

268 posts

Ultimate Geek

#654747 12-Jul-2012 18:34

Ok I"m new to this please dont flame me :(

But it seems to work mostly fine for windows 8 WMC

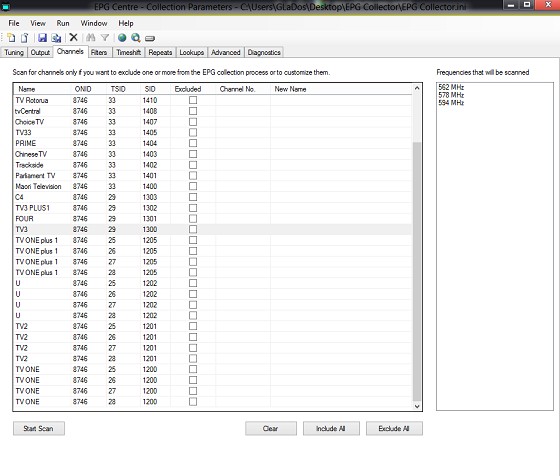

but i have an issue as TVNZ one/2/oneplus/U have multiple channels listed.
When the EPG is loaded into WMC (Windows 8) it doesn't display the programs for those channels, I tried disabling some of them, didn't work.

Epgcollector.ini
[code]
[GENERAL]
Output=C:\Users\GLaDos\Desktop\TVGuide.xml
Timeouts=10,300,5
Location=NZL,0
InputLanguage=eng
Charset=Windows-1252
Option=USERAWCRID,WMCIMPORT,AUTOMAPEPG,RUNFROMSERVICE

[DVBT]
TuningFile=New Zealand.Wellington - Kaukau (After June 2012).xml
ScanningFrequency=562000,8,MHEG5

[DVBT]
TuningFile=New Zealand.Wellington - Kaukau (After June 2012).xml
ScanningFrequency=578000,8,MHEG5

[DVBT]
TuningFile=New Zealand.Wellington - Kaukau (After June 2012).xml
ScanningFrequency=594000,8,MHEG5

[SCANLIST]
Scanned=8746,27,1205,-1,TV ONE plus 1
Scanned=8746,27,1200,-1,TV ONE
Scanned=8746,27,1201,-1,TV2
Scanned=8746,27,1202,-1,U
Scanned=8746,28,1205,-1,TV ONE plus 1
Scanned=8746,28,1200,-1,TV ONE
Scanned=8746,28,1201,-1,TV2
Scanned=8746,28,1202,-1,U
Scanned=8746,26,1205,-1,TV ONE plus 1
Scanned=8746,26,1200,-1,TV ONE
Scanned=8746,26,1201,-1,TV2
Scanned=8746,26,1202,-1,U
Scanned=8746,25,1205,-1,TV ONE plus 1
Scanned=8746,25,1200,-1,TV ONE
Scanned=8746,25,1201,-1,TV2
Scanned=8746,25,1202,-1,U
Scanned=8746,29,1302,-1,TV3 PLUS1
Scanned=8746,29,1300,-1,TV3
Scanned=8746,29,1301,-1,FOUR
Scanned=8746,29,1303,-1,C4
Scanned=8746,33,1407,-1,ChoiceTV
Scanned=8746,33,1400,-1,Maori Television
Scanned=8746,33,1401,-1,Parliament TV
Scanned=8746,33,1402,-1,Trackside
Scanned=8746,33,1403,-1,ChineseTV
Scanned=8746,33,1404,-1,PRIME
Scanned=8746,33,1405,-1,TV33
Scanned=8746,33,1408,-1,tvCentral
Scanned=8746,33,2001,-1,Radio NZ Concert
Scanned=8746,33,2000,-1,Radio NZ National
Scanned=8746,33,2002,-1,BaseFM
Scanned=8746,33,1410,-1,TV Rotorua
Scanned=8746,33,1411,-1,Info-Rotorua
Scanned=8746,33,1412,-1,Channel North
Scanned=8746,33,1413,-1,TV9

[LOOKUPS]
MovieLookupEnabled=yes
MovieImage=poster
MovieLowDuration=90
MovieHighDuration=300
TVLookupEnabled=yes
TVImage=poster
LookupMatching=Exact
LookupNotFound=yes
LookupReload=no
LookupIgnoreCategories=no
LookupProcessAsTVSeries=no
LookupErrors=5
LookupTimeLimit=60
[/code]

SJB

2945 posts

Uber Geek
Inactive user

#654770 12-Jul-2012 19:34

Try setting the last of the General options on the Output tab (Create data for channels with the same name....).

Incidentally on the Lookups tab I put Movie in the 'Phrases used to identify a movie' field and the following text in the 'Phrases to be ignored when matching'

Movie:,All New,: The Final Season,Best Of,Omnibus

You need to enter the text exactly as I've typed it.

Also tick 'Ignore categories from broadcaster' and 'Process every programme that is not a movie as a TV series'

Huntakillaz

268 posts

Ultimate Geek

#654793 12-Jul-2012 20:37

That Sir worked! Thank You :D

I love this! I can now get epg for more than the next 2hrs! WOOOOOOOOOOOOO!

CYaBro

4582 posts

Uber Geek

ID Verified

Trusted

#658481 19-Jul-2012 14:39

Is there an updated guide on how to setup EPG Collector? The one I can find here on Geekzone is from 2010 and a very old version.
Just having a look at it and not sure on what settings are needed.
I need to set it up for a friend who is using WMC in Win7 with a Nova-S DVB-S card and a PVR150MCE card so they can receive freeview satellite as well as connect their standard Sky decoder.
They want all the Sky channels to have the EPG as well as Freeview.

Any help greatly appreciated.

Opinions are my own and not the views of my employer.

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

freitasm

BDFL - Memuneh
79255 posts

Uber Geek

Administrator

ID Verified

Trusted

Geekzone

Lifetime subscriber

#658483 19-Jul-2012 14:41

Not yet. I was going to post a new - will do soon.

watman

66 posts

Master Geek

#658724 19-Jul-2012 21:57

Hi,

Iv updated to v4.0 and fixpak 1 from v3.1 with fixpak 7 (v3.1 was working 100%) and am having quite a few troubles.

Iv probably done it wrong but here goes. I ran the v4.0 installer, copied over the fixpak and installed .NET 4.

Unfortunately when I opened EPG Centre I got some sort of "JIT" error when trying to see my collection parameters and trying to close it. I needed to reset the computer to exit, so I uninstalled EPG Collector, .NET4. and deleted my old collection parameters

Next, I installed .NET 4, EPG Collector v4.0 only, copied over the fixpak and created new collection parameters.

Collection of the actual data is working.

Things I am having problems with are:
-"record series" missing from the Media Centre 7 menu
-In "add recording" the bottom says 6 days worth of listings are available until I do a re-index
-Only having 7 days worth of EPG once I have manually run a re-index (this may have been a Freeview change as there is only 7 days available on the Freeview website)

Any help is much appreciated

Thanks

Nety

2584 posts

Uber Geek

Retired Mod

Trusted

Lifetime subscriber

#659120 20-Jul-2012 14:32

Why the heck are you copying over the fix pack for v3??!! that was for v3 and will just break v4

Install v4.. thats it. There are no fix packs to install as (currently at least) nothing is broken.

Media centre PC - Case Silverstone LC16M with 2 X 80mm AcoustiFan DustPROOF, MOBO Gigabyte MA785GT-UD3H, CPU AMD X2 240 under volted, RAM 4 Gig DDR3 1033, HDD 120Gig System/512Gig data, Tuners 2 X Hauppauge HVR-3000, 1 X HVR-2200, Video Palit GT 220, Sound Realtek 886A HD (onboard), Optical LiteOn DH-401S Blue-ray using TotalMedia Theatre Power Corsair VX Series, 450W ATX PSU OS Windows 7 x64

freitasm

BDFL - Memuneh
79255 posts

Uber Geek

Administrator

ID Verified

Trusted

Geekzone

Lifetime subscriber

#659132 20-Jul-2012 14:39

Remove everything. Install v4. That's all.

SJB

2945 posts

Uber Geek
Inactive user

#659143 20-Jul-2012 14:52

There is a fixpack on SF for v4.0.

Makes it run on Win 8 and fixes a minor DVBLogic plugin fault.

samsam

167 posts

Master Geek

#659170 20-Jul-2012 15:28

How do i add exclusion to station for the DVBLogic plugin. When I search using EPG Centre no channels are found, but using the scan in the TVSource Configuration seems to find the EPG data. How do i modify the config file to add exclusions?

SJB

2945 posts

Uber Geek
Inactive user

#659208 20-Jul-2012 16:20

What frequency are you scanning in EPG Centre?

watman

66 posts

Master Geek

#659241 20-Jul-2012 17:18

Hi, Thanks for the replies

I think I had a bit of a grammar faux pas.

I had v3.1 and v3.1 fixpak 7

Then I installed v4 and installed v4 fixpak 1 from sourceforge

The frequencies Im using are the preset ones from Wellington - Mt Kaukau (after june 19)
