Chorus VDSL - Vectoring & G.INP rolling in

Forums › New Zealand Broadband › Chorus VDSL - Vectoring & G.INP rolling in

1 | ... | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | ... | 27

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#2019765 21-May-2018 13:15

EyrewellMc:

Hi, from the look of the map you created our upgrade should happen this Thursday, 24/05/2018. I currently just have the Spark Huawei HG630b and have never upgraded the firmware.

I have VDSL and must be on the very limit as we are just under 2km's from the roadside cabinet. Getting 22Mbps download and just over 1.5Mbps upload. this was a big jump from the ADSL we previously had.

The info on here has been very interesting and I am hoping we will benefit but have a couple of questions

1. is the HG630b compatable with the vectoring and do i need to update the firmware?

2. at the distance we are from the cabinet can i realistically expect much of an increase in speeds?

Thanks in advance.

Chris

1. yes, I'd recommend upgrading your firmware though.

2. you will likely rise about 4-8mbit down, which isn't too bad for the distance :)

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

EyrewellMc

2 posts

Wannabe Geek
+1 received by user: 1

#2019772 21-May-2018 13:23

Hi,

thanks for the quick reply. I will do the update to the firmware tonight then.

I was hoping for an increase so it will be interesting to see what happens. Must remember to screen shot some connection details and compare after the firmware update and then also once vectoring is in place.

Cheers

Chris

djchcane

5 posts

Wannabe Geek

#2021041 23-May-2018 11:35

Have been reading this thread with interest; and note that my local cabinet SPE_G was supposed to gain Vectoring last night between 2300-0600L.

Whilst I cannot tell specifically weter this has happened i did witness changes to my profile overnight - moved from 8B to 17A. Is this an expected change when vectoring is enabled?

I run a Draytek DV130 as indicated in the pre and post screenshots below.

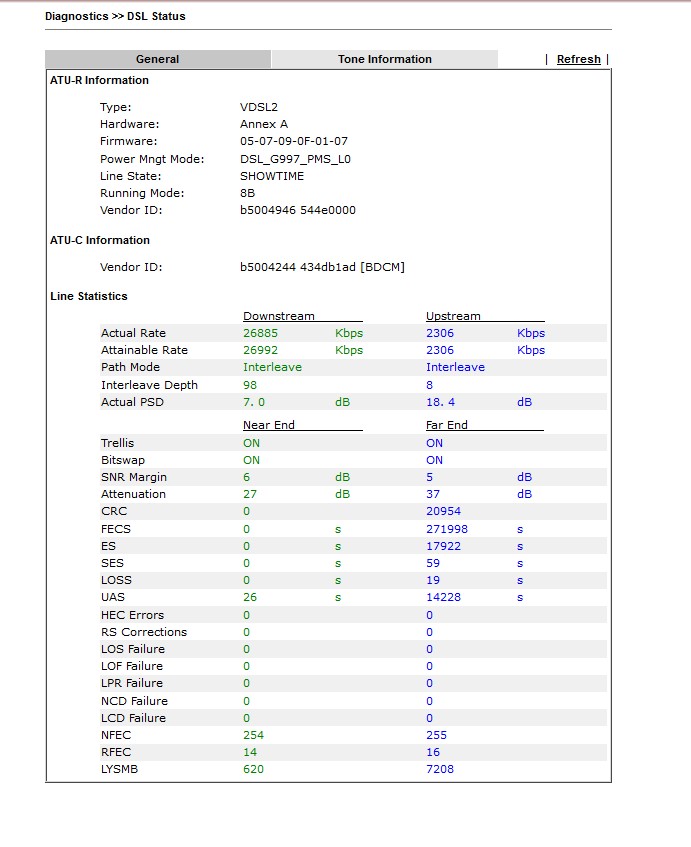

Pre Vectoring:

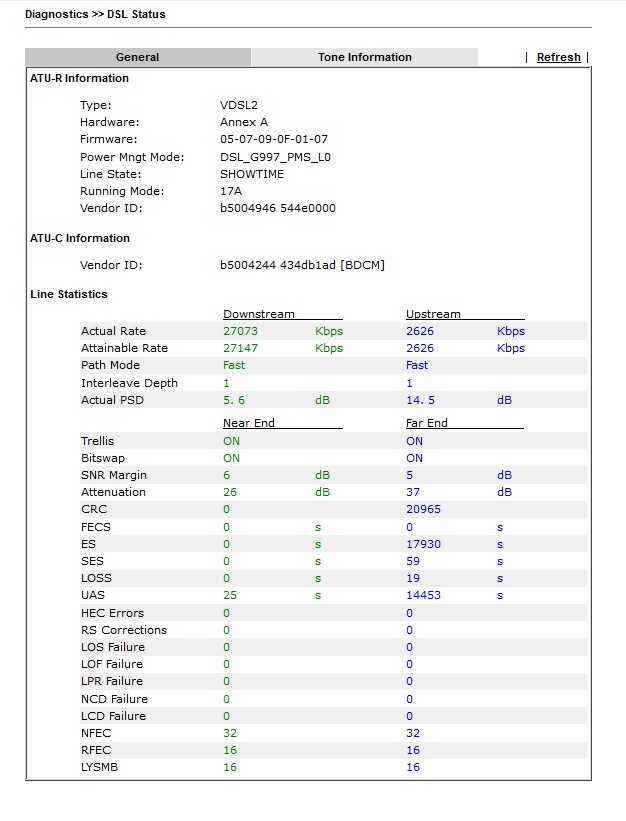

Post Vectoring:

Sync really hasnt changed much - upstream maybe a little boost - but I had hoped for more!

Cheers,

Dave

wratterus

1687 posts

Uber Geek
+1 received by user: 678

#2021057 23-May-2018 11:45

I've seen the exact same thing happen last night on KTI_G-DSLAM-03

Before

---------------------- ATU-R Info (hw: annex A, f/w: annex A/B/C) -----------
Running Mode : 8B State : SHOWTIME
DS Actual Rate : 35869000 bps US Actual Rate : 1531000 bps
DS Attainable Rate : 36039952 bps US Attainable Rate : 1531000 bps
DS Path Mode : Interleave US Path Mode : Interleave
DS Interleave Depth : 151 US Interleave Depth : 8
NE Current Attenuation : 29 dB Cur SNR Margin : 6 dB
DS actual PSD : 6. 5 dB US actual PSD : 17. 9 dB
NE CRC Count : 597 FE CRC Count : 207215
NE ES Count : 208 FE ES Count : 83725
Xdsl Reset Times : 0 Xdsl Link Times : 1
ITU Version[0] : b5004946 ITU Version[1] : 544e0000
VDSL Firmware Version : 05-07-04-03-00-07 [with Vectoring support]
Power Management Mode : DSL_G997_PMS_L0
Test Mode : DISABLE
-------------------------------- ATU-C Info ---------------------------------
Far Current Attenuation : 36 dB Far SNR Margin : 6 dB
CO ITU Version[0] : b5004244 CO ITU Version[1] : 434db1ad
DSLAM CHIPSET VENDOR : < BDCM >

After

MichaelNZ

1597 posts

Uber Geek
+1 received by user: 485

Trusted

Net Trust Ltd

#2021065 23-May-2018 11:48

djchcane:

Whilst I cannot tell specifically weter this has happened i did witness changes to my profile overnight - moved from 8B to 17A. Is this an expected change when vectoring is enabled?

[....]

Sync really hasnt changed much - upstream maybe a little boost - but I had hoped for more!

No. The 8B -> 17A migration has happened independently. I got mine months ago.

You have some pretty marginal connection speeds there.

WFH Linux Systems and Networks Engineer in the Internet industry | Specialising in Mikrotik | APNIC member | Open to job offers | ZL2NET

SaltyNZ

8893 posts

Uber Geek
+1 received by user: 9621

Trusted

2degrees

Lifetime subscriber

#2021081 23-May-2018 12:06

MichaelNZ:

You have some pretty marginal connection speeds there.

ಠ_ಠ

iPad Pro 11" + iPhone 15 Pro Max + 2degrees 4tw!

These comments are my own and do not represent the opinions of 2degrees.

Dyson

Shop now for Dyson appliances (affiliate link).

djchcane

5 posts

Wannabe Geek

#2021088 23-May-2018 12:22

MichaelNZ:

djchcane:

Whilst I cannot tell specifically weter this has happened i did witness changes to my profile overnight - moved from 8B to 17A. Is this an expected change when vectoring is enabled?

[....]

Sync really hasnt changed much - upstream maybe a little boost - but I had hoped for more!

No. The 8B -> 17A migration has happened independently. I got mine months ago.

You have some pretty marginal connection speeds there.

Oh yes - Speed is pretty poor - but the cabinet *was* serviced by a Conklin and ADSL1 around a year ago - so its a big jump in the right direction for me!

Is there any way to tell wether Vectoring has been enabled - apart from calling the SP and getting them to line check? I see no indication on the DV130 to indicate this.

Cheers

freakngeek

356 posts

Ultimate Geek
+1 received by user: 123

#2021089 23-May-2018 12:22

If you are running Draytek gear ie DV130 make sure you are running Modem 4 or modem 8 Firmware as STD doesn't support vectoring
Very important !!

It should say on the initial GUI screen near bottom if vectoring is enabled (does on a DV2860)
I can confirm this tomorrow morning when my change over is due with my DV130

On DV2860's from memory you need Modem 2 firmware for vectoring

djchcane

5 posts

Wannabe Geek

#2021091 23-May-2018 12:25

freakngeek:

If you are running Draytek gear ie DV130 make sure you are running Modem 4 or modem 8 Firmware as STD doesn't support vectoring
Very important !!

It should say on the initial GUI screen near bottom if vectoring is enabled (does on a DV2860)
I can confirm this tomorrow morning when my change over is due

On DV2860's from memory you need Modem 2 firmware for vectoring

Ah yes - its running 8. I havent tried 4.

v130_382_modem_8.all

Released in March. No indication on the initial GUI to confirm Vectoring is "on"

Will be interested to hear your feedback.

Cheers,

Dave

freakngeek

356 posts

Ultimate Geek
+1 received by user: 123

#2021094 23-May-2018 12:28

djchcane:

freakngeek:

If you are running Draytek gear ie DV130 make sure you are running Modem 4 or modem 8 Firmware as STD doesn't support vectoring
Very important !!

It should say on the initial GUI screen near bottom if vectoring is enabled (does on a DV2860)
I can confirm this tomorrow morning when my change over is due

On DV2860's from memory you need Modem 2 firmware for vectoring

Ah yes - its running 8. I havent tried 4.

v130_382_modem_8.all

Releaed in March.

Your good, Modem 8 is now recommended for NZ with 3.8.2
Modem 4 used to be recommended and 8 was for Aussie NBN
Don't fiddle too much or ddDLM will come in and slow you up.

EDIT

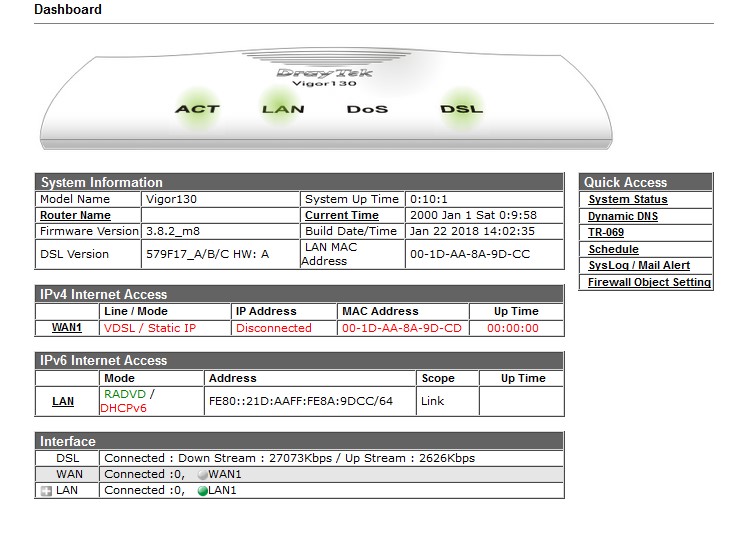

I see in your picture that vectoring should show (as it does on a DV2860) under Interfaces
I'll check mine in morning

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#2021096 23-May-2018 12:31

Looks to me like those cabinets got switched but didn't come right.

Chorus have a tool that detects i it fails to activate on the hardware, in this case it will fallback to no vectoring (although profile active)

BMarquis:

Hi guys,

TAW_AC was 1 of a small group (8 DSLAMs) which didn't have vectoring enabled as planned last night.
These 8 ISAMs were picked up by the deployment tool as having a hardware or software issue which prevented the switch on of Vectoring.

Due to planned work notification lead times, these will be added to some kind of wash-up night at the end of the deployment.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Apple TV

Stream your favourite shows now on Apple TV (affiliate link).

MichaelNZ

1597 posts

Uber Geek
+1 received by user: 485

Trusted

Net Trust Ltd

#2021097 23-May-2018 12:32

Apparently some exchanges have been enabled for vectoring but the vectoring hasn't actually been switched on.

WFH Linux Systems and Networks Engineer in the Internet industry | Specialising in Mikrotik | APNIC member | Open to job offers | ZL2NET

wratterus

1687 posts

Uber Geek
+1 received by user: 678

#2021101 23-May-2018 12:35

MU_U as well as KIT_G would have been one of those that failed too?

djchcane

5 posts

Wannabe Geek

#2021102 23-May-2018 12:36

hio77:

Looks to me like those cabinets got switched but didn't come right.

Chorus have a tool that detects i it fails to activate on the hardware, in this case it will fallback to no vectoring (although profile active)

BMarquis:

Hi guys,

TAW_AC was 1 of a small group (8 DSLAMs) which didn't have vectoring enabled as planned last night.
These 8 ISAMs were picked up by the deployment tool as having a hardware or software issue which prevented the switch on of Vectoring.

Due to planned work notification lead times, these will be added to some kind of wash-up night at the end of the deployment.

Thanks hio77 - appreciate the response - was SPE_G part of that list of failures? Do you know when the end of Deployment is scheduled?

Cheers,

Dave

BMarquis

466 posts

Ultimate Geek
+1 received by user: 581

Trusted

Chorus

Lifetime subscriber

#2021110 23-May-2018 12:48

djchcane:

Have been reading this thread with interest; and note that my local cabinet SPE_G was supposed to gain Vectoring last night between 2300-0600L.

Whilst I cannot tell specifically weter this has happened i did witness changes to my profile overnight - moved from 8B to 17A. Is this an expected change when vectoring is enabled?

I run a Draytek DV130 as indicated in the pre and post screenshots below.

Pre Vectoring:

--snipped image

Post Vectoring:

--snipped image

Sync really hasnt changed much - upstream maybe a little boost - but I had hoped for more!

Cheers,

Dave

Apologies, something was not quite right with this DSLAM. Please check again now.
