Master Geek
+1 received by user: 6

#2022201 25-May-2018 07:47

looks to me that they capping upstream to 30 meg/bit as this screen shots shows

https://www.dropbox.com/s/5tdkh53hxhgr4cw/Screenshot%202018-05-25%2007.43.35.png?dl=0

anyone else notice this or has all those that having vectoring on able get 50 meg bits

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#2022255 25-May-2018 09:17

freakngeek:

My thoughts on Vectoring and G.INP are
The Rich seem to have gotten richer on Downstream by the biggest margins (ie those on 100Mbp/s are now on or near 120Mbps, 20% gain
As we go down from 100Mbps pre Vectoring the downstream gain drops, I got a 4% on 75 to 78Mbps
Some results below 75Mbps seem to have very little gain at all, some even dropping
Not a single person so far has jumped with joy with a huge gain that Chorus trial Vectoring line with gains shows there should be.

Being you are pretty damn rural, It's highly likely you had very little crosstalk holding your speeds down.

The gains are where crosstalk is high, or at lower levels eg, Error rates.

freakngeek:

On the other hand the Rich Upstream sync has dropped drastically almost 20Mbps see above comment from michaelmurfy 's parents
I got not a sausage and again I doubt many have
But this is a Chorus decision nothing to do with Vectoring or G.INP

But the one redeeming thing that has happened is error rate has dropped drastically
Not a single error other than the Linecard resyncing on upstream for me, will be interesting with next Thunderstorm.
This I suppose allows most connections to go on Fast mode (no interleaving), giving a small Ping boost

Anyway I think we got more from G.INP than from Vectoring, just my thoughts on what I've seen thus far.
I could be completely wrong of course not seeing behind the scenes happenings
Would love another Chorus pre/post vectoring result for the masses

The upload drop was a well expected result, unfortunate for those who feel it.

but great for those who gained.

There has also been a trend noticed, where lower speed connections have also seen a gain in upstream; I understand this was an unexpected bonus result of the reduction in upstream speeds.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#2022256 25-May-2018 09:18

gorringS:

looks to me that they capping upstream to 30 meg/bit as this screen shots shows

https://www.dropbox.com/s/5tdkh53hxhgr4cw/Screenshot%202018-05-25%2007.43.35.png?dl=0

anyone else notice this or has all those that having vectoring on able get 50 meg bits

as above, intentional change.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

DS248

1702 posts

Uber Geek
+1 received by user: 771

Lifetime subscriber

#2022346 25-May-2018 11:37

hio77:
DS248: ... We are .. serviced by a cabinet just within the urban area (RDB/M, which is 1.5 km cable distance from us). ...

Your linecards getting switched to vector capable ones on the 23rd may.
Thus arent on this switch flicking list.
I'm unsure of the idea here. It may be they are deployed then flicked after a week or so (the chorus folk are monitoring afterall. Think their tool also needs history)

No evidence of any change here yet so maybe it will be a week before the switch is flicked?

Oh well, at least it is (marginally) better than it has been for the last two months or so!

From what others have experienced, I do worry that our upstream may be impacted for the worse by vectoring :(

Our modem is an ASUS DSL-AC56U. Not certain where I check to see if vectoring is turned on.

Nothing obvious on the DSL Stats page.

DSL Exchange (DSLAM) is still reported as IKANOS. Not certain if this means anything?

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#2022588 25-May-2018 18:47

If your still seeing an iknoas linecard noway you are getting a flick anytime soon.

Cleanup annouced. 4th june.
I'll update list at some stage...

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

AidanP

76 posts

Master Geek
+1 received by user: 10

#2022597 25-May-2018 19:03

DS248:
hio77:
DS248: ... We are .. serviced by a cabinet just within the urban area (RDB/M, which is 1.5 km cable distance from us). ...

Your linecards getting switched to vector capable ones on the 23rd may.
Thus arent on this switch flicking list.
I'm unsure of the idea here. It may be they are deployed then flicked after a week or so (the chorus folk are monitoring afterall. Think their tool also needs history)

No evidence of any change here yet so maybe it will be a week before the switch is flicked?

Oh well, at least it is (marginally) better than it has been for the last two months or so!

From what others have experienced, I do worry that our upstream may be impacted for the worse by vectoring :(

Our modem is an ASUS DSL-AC56U. Not certain where I check to see if vectoring is turned on.

Nothing obvious on the DSL Stats page.

DSL Exchange (DSLAM) is still reported as IKANOS. Not certain if this means anything?

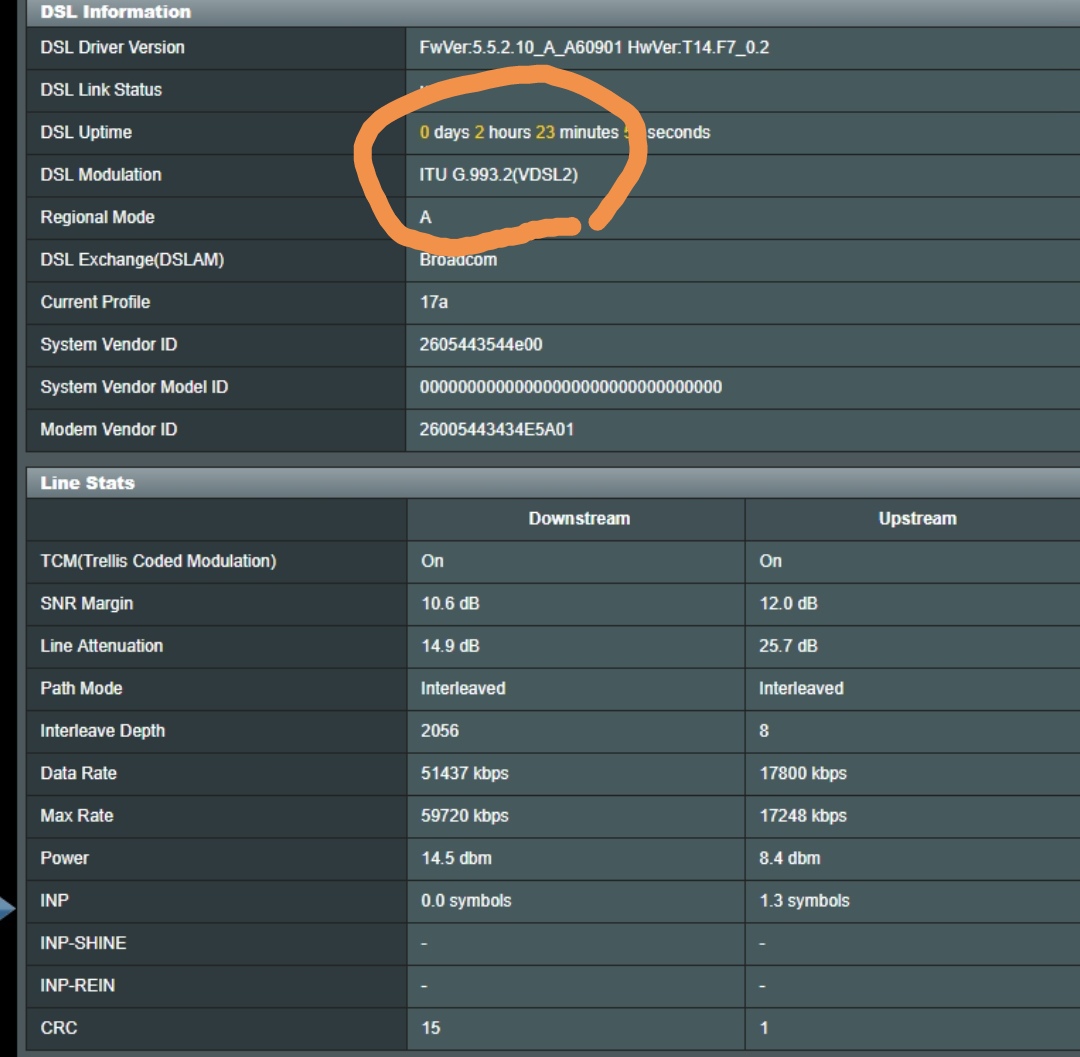

Where I've circled should say G.993.5 if the modem is synced with vectoring, and make sure it is enabled in DSL settings under ADMINISTRATION-->Dsl setting-->G.993.5 (enabled)

Dell

Shop now for Dell laptops and other devices (affiliate link).

DS248

1702 posts

Uber Geek
+1 received by user: 771

Lifetime subscriber

#2022781 26-May-2018 09:10

Thanks to both of you.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#2022783 26-May-2018 09:13

DS248:
Thanks to both of you.

At 20db vectoring likely would make minor differance.

It's the underlying improvements it makes that adds up far more.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

DS248

1702 posts

Uber Geek
+1 received by user: 771

Lifetime subscriber

#2022802 26-May-2018 10:15

hio77: At 20db vectoring likely would make minor differance.

It's the underlying improvements it makes that adds up far more.

What are the "underlying improvements"?

A change from IKANOS to Broadcom likely to provide any benefit? (Assuming it will occur on our cabinet).

Also, why no longer able to access 8b?

Both DS & especially US were generally better on 8b but now if I try to force an 8b connection, it fails to connect.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#2022966 26-May-2018 13:57

I thought 8b was only gone for vectored lines tbh.

Benefits are g.inp. reduction in errors, more stability.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

JOEJOEJOE

7 posts

Wannabe Geek

#2025028 29-May-2018 17:34

Anyone with that sweet insider info seen what happened to WAK_B-DSLAM-03? I'm guessing we've been moved to the cleanup date as the vectoring still hasn't been enabled but weirdly G.INP is.

Thanks again,

Quic Broadband

Move to New Zealand's best fibre broadband service (affiliate link). Free setup code: R587125ERQ6VE. Note that to use Quic Broadband you must be comfortable with configuring your own router.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#2025101 29-May-2018 20:05

JOEJOEJOE:

Anyone with that sweet insider info seen what happened to WAK_B-DSLAM-03? I'm guessing we've been moved to the cleanup date as the vectoring still hasn't been enabled but weirdly G.INP is.

Thanks again,

J

That's often the state the dslam lands in when it's not been flicked but something went wrong (eg cleanup required)

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

wratterus

1687 posts

Uber Geek
+1 received by user: 678

#2025375 30-May-2018 09:40

freakngeek:

DV130 Telnet command with a little more info is 'vdsl optn status' which reveals this:

Vigor> vdsl optn status
trellis [US] = ON, [DS] = ON.
bitswap [US] = 0, [DS] = 0. [0: default(ON), 1: ON, 2: OFF]
sra [US] = 0, [DS] = 0. [0: default(=3), 2: OFF, 3: ON , 4: DYNAMIC_SOS]
retx [US] = ON, [DS] = ON.
aelem ON
G.Vector ON

@freakngeek something a little odd here - see image. The top result is a DV130 in an area that is getting UFB, on an Ikanos cabinet. Bottom image is on a Broadcom that vectoring has been enabled on. Both modems on 3.8.2 m8.

Do you think the DV130 is reporting incorrectly?
