Question about Vectoring.

Forums › New Zealand Broadband › Question about Vectoring.

Chrisclarke

197 posts

Master Geek
+1 received by user: 62

#268290 10-Mar-2020 13:36

I have a Spark VDSL connection to the Albury exchange. My speeds are poor compared to my neighbour opposite. Chorus have previously advised that the line comes directly to us (and them) from the exchange and there's no looping etc.

I've had a master splitter installed. About 10 days ago I upgraded the modem firmware (Vigor 130) to a version that supports vectoring and have seen no change in speed.

I'm wondering:

- is there a way to check if Vectoring is supported at the exchange, and

- is there a way of checking via the modem interface that vectoring is active.

Just trying to get the best out of the connection (only copper available - RBI due in June but no use to me because of the data limits).

Appreciate all the helpful advice which is always forthcoming from the good folk on this wonderful forum.

nztim

4012 posts

Uber Geek
+1 received by user: 2710

ID Verified

Trusted

TEAMnetwork

Subscriber

#2435693 10-Mar-2020 14:21

Just checked a random address in Albury

Result Positive EUBA 40, EUBA 90, EUBA 0, EUBA 180, WVS 0, Baseband Copper, Baseband IP
Result Negative BUBA FS/FS, NGA
Serving LWC Name ABY - MDF
Messages ADSL2+, VDSL2; Vectoring Capable Address

So yes it does, as you are with spark ill refer you to @hio77

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

halper86

555 posts

Ultimate Geek
+1 received by user: 156

ID Verified

#2435696 10-Mar-2020 14:24

Yes vectoring is supported at the exchange (ABY) Found here.

Take a look at this map and make sure you are not connected to ABY/A as it is a conklin, however it is very unlikely.

You can also check what exchange/cabinet you are on for sure here, just click on the menu up the top right corner and click availability checker under products :)

nztim

4012 posts

Uber Geek
+1 received by user: 2710

ID Verified

Trusted

TEAMnetwork

Subscriber

#2435704 10-Mar-2020 14:30

halper86:

Take a look at this map and make sure you are not connected to ABY/A as it is a conklin, however it is very unlikely.

That would suck :)

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

Chrisclarke

197 posts

Master Geek
+1 received by user: 62

#2435738 10-Mar-2020 15:22

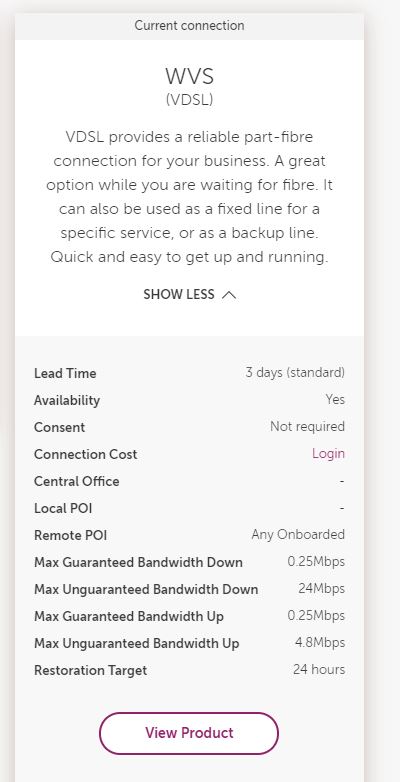

Thank you! This is from the Chorus product checker page - can't see the exchange info or am I missing something.

halper86

555 posts

Ultimate Geek
+1 received by user: 156

ID Verified

#2435832 10-Mar-2020 17:18

@chrisclarke try clicking on EUBA and looking at the central office on there. they will both be the same :)

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#2435898 10-Mar-2020 18:50

Kinda sounds like your exchange fed, I which would mean no vectoring.

Vectoring doesn't always mean a speed jump remember too

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Geekzone support

Support Geekzone with one-off or recurring donations Donate via PressPatron.

atomeara

324 posts

Ultimate Geek
+1 received by user: 152

#2436003 10-Mar-2020 20:58

Can you DM me your address and ill check a few things

Bigger exchanges do not support vectoring (ones with more than one ISAM) but some smaller rural ones do, as there a single ISAM with no UCLL and not a UFB1/UFB2 planned.

nztim

4012 posts

Uber Geek
+1 received by user: 2710

ID Verified

Trusted

TEAMnetwork

Subscriber

#2436086 10-Mar-2020 23:49

hio77: Kinda sounds like your exchange fed, I which would mean no vectoring.

Vectoring doesn't always mean a speed jump remember too

ABY is a vectored exchange

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

MichaelNZ

1594 posts

Uber Geek
+1 received by user: 485

Trusted

Net Trust Ltd

#2438852 15-Mar-2020 21:10

@Chrisclarke -

There is a new version of DV130 firmware which supports vectoring and G.INP. Look for 3.8.4.1m9

https://www.draytek.com/products/vigor130/#resource (click on more)

WFH Linux Systems and Networks Engineer in the Internet industry | Specialising in Mikrotik | APNIC member | Open to job offers | ZL2NET

Chrisclarke

197 posts

Master Geek
+1 received by user: 62

#2443928 22-Mar-2020 17:02

Thanks Michael. Uploaded that firmware this afternoon and got an immediate boost of about 4/5 Mbps down.

Still very slow compared to the folks over the road so will think about getting Spark to ask Chorus to try a different pair.

MichaelNZ

1594 posts

Uber Geek
+1 received by user: 485

Trusted

Net Trust Ltd

#2443930 22-Mar-2020 17:06

Chrisclarke:

Still very slow compared to the folks over the road so will think about getting Spark to ask Chorus to try a different pair.

If your line is within spec it's unlikely they will do anything. Chorus charges the ISP if there is no fault found.
