Impossible to split this pwr-switch? (to power on from different room)

Forums › Desktop computing › Impossible to split this pwr-switch? (to power on from different room)

Niber

25 posts

Geek

#320136 10-Jul-2025 07:25

I bought on Aliexpress a powerswitch splitter, so that any computer can be turned off from 2 buttons (one on the desktop, and one in the room where I'm using the desktop),

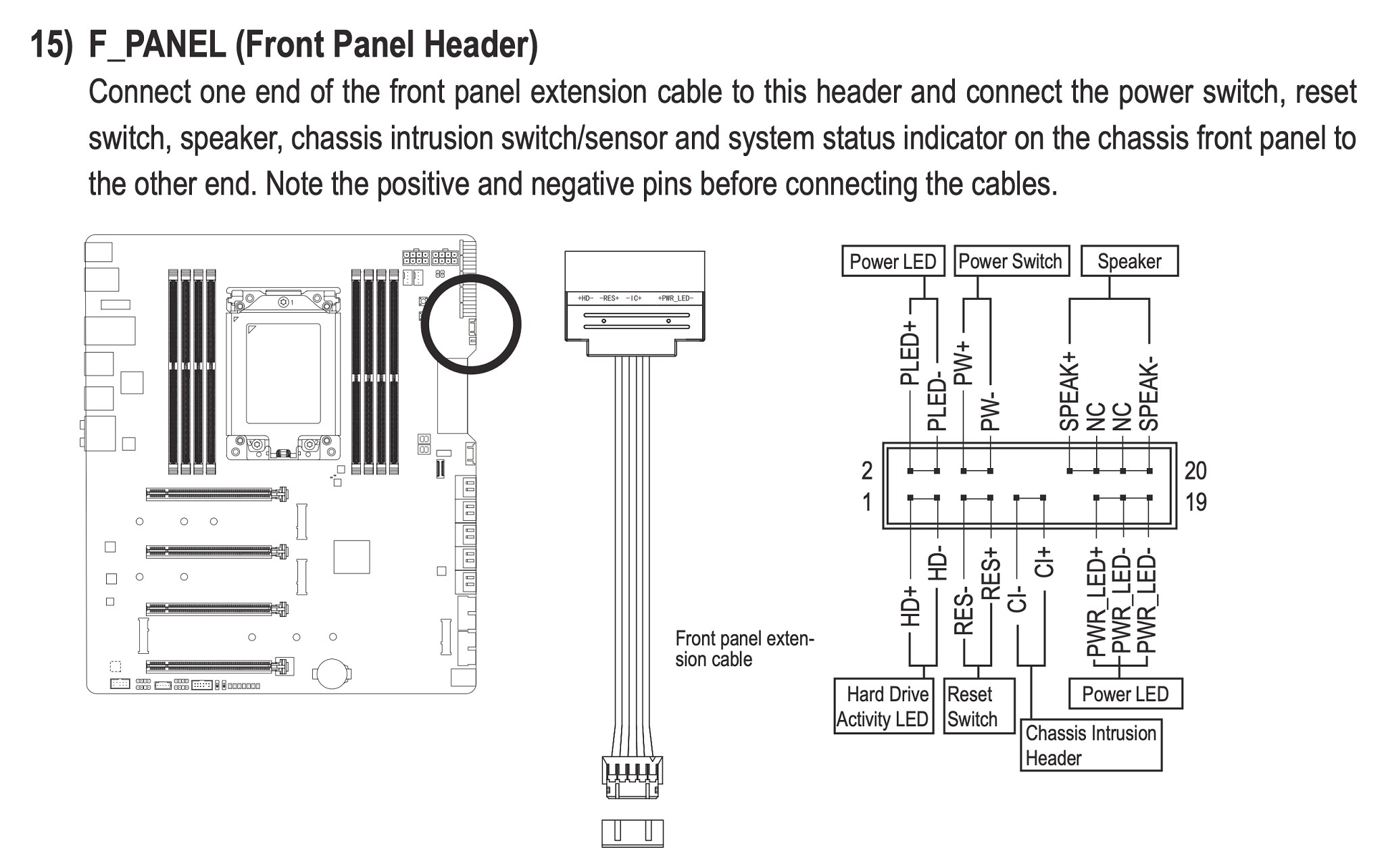

but now that I was about to install it I'm realizing it might not work. Seems my motherboard is using this single cable to bridge its chassi with the motherboard. So I guess unless I'm willing to mess with this cable by cutting it up and soldiering a splitter onto one wire, my idea isn't going to work?

nztim

3815 posts

Uber Geek

ID Verified

Trusted

TEAMnetwork

Subscriber

#3392613 10-Jul-2025 08:53

It's the chassis cable not the motherboard cable, that pinout is a standard ATX pinout so the Chassis manufacturer can produce a single connector

unless you are willing to cut the chassis cable you are SOOL

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

DaMuzzMan67

39 posts

Geek

ID Verified

#3392619 10-Jul-2025 09:00

If you are wanting to turn on from a different room, as an alternative, have you thought about waking the computer using Wake on Lan? You need to configure using both the BIOS and Windows settings. I have just set it up using a Gaming Computer (separate room) to our TV using a 30 metre long Fibre Optic HDMI Cable. To turn on I just use my android phone with the "Wake on Lan" app to send the wake-up packet to the computer.

Turning off, not so sure...

nztim

3815 posts

Uber Geek

ID Verified

Trusted

TEAMnetwork

Subscriber

#3392623 10-Jul-2025 09:12

DaMuzzMan67:

If you are wanting to turn on from a different room, as an alternative, have you thought about waking the computer using Wake on Lan?

^^^^^ This

However, this requires the device to be connected via ethernet and not Wi-Fi not sure of the OPs setup

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

Niber

25 posts

Geek

#3392655 10-Jul-2025 10:59

DaMuzzMan67:

If you are wanting to turn on from a different room, as an alternative, have you thought about waking the computer using Wake on Lan? You need to configure using both the BIOS and Windows settings. I have just set it up using a Gaming Computer (separate room) to our TV using a 30 metre long Fibre Optic HDMI Cable. To turn on I just use my android phone with the "Wake on Lan" app to send the wake-up packet to the computer.

Turning off, not so sure...

I use WakeOnLan now, but the problem is:

1) can't force turnoff/restart when computer freezes

2) i would like to disable the ethernet adapter when I'm doing overnight renders, as I just don't like the idea of leaving the computer on with internet access

WOW I can't believe u use 30m cable!! previously I did try having my office far away, but eventually I gave up as I found that long cables was just always a hassle, especially usb no matter how many powered hubs or usb-ethernet etc I tried (they would sometimes work and sometimes become unrelyable)

Niber

25 posts

Geek

#3392658 10-Jul-2025 11:04

nztim:

It's the chassis cable not the motherboard cable, that pinout is a standard ATX pinout so the Chassis manufacturer can produce a single connector

unless you are willing to cut the chassis cable you are SOOL

Ahh ok bummer, it's quite an expensive chassi that I want to sell some day so not sure if I dare (and would suck if I messed up)

altho I think I just figured out the solution.. I guess I could just ONLY plug in the remote power button, as none of those chassi options seems important.

nztim

3815 posts

Uber Geek

ID Verified

Trusted

TEAMnetwork

Subscriber

#3392726 10-Jul-2025 12:07

Niber:

DaMuzzMan67:

If you are wanting to turn on from a different room, as an alternative, have you thought about waking the computer using Wake on Lan? You need to configure using both the BIOS and Windows settings. I have just set it up using a Gaming Computer (separate room) to our TV using a 30 metre long Fibre Optic HDMI Cable. To turn on I just use my android phone with the "Wake on Lan" app to send the wake-up packet to the computer.

Turning off, not so sure...

I use WakeOnLan now, but the problem is:

1) can't force turnoff/restart when computer freezes

2) i would like to disable the ethernet adapter when I'm doing overnight renders, as I just don't like the idea of leaving the computer on with internet access

Does your motherboard/CPU support AMT?

You can install another NIC in the PC and the use that for OS access data then turn the PC on/off via AMT

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

SirHumphreyAppleby

2844 posts

Uber Geek

#3392740 10-Jul-2025 12:45

nztim:

It's the chassis cable not the motherboard cable, that pinout is a standard ATX pinout so the Chassis manufacturer can produce a single connector

unless you are willing to cut the chassis cable you are SOOL

No need to cut the cable, just use a 10x2 F to 2x 10x2 M ribbon cable. I had a quick look for an off-the-shelf solution and didn't find one, but they almost certainly exist and wouldn't be difficult to make yourself.

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

nztim

3815 posts

Uber Geek

ID Verified

Trusted

TEAMnetwork

Subscriber

#3392825 10-Jul-2025 15:54

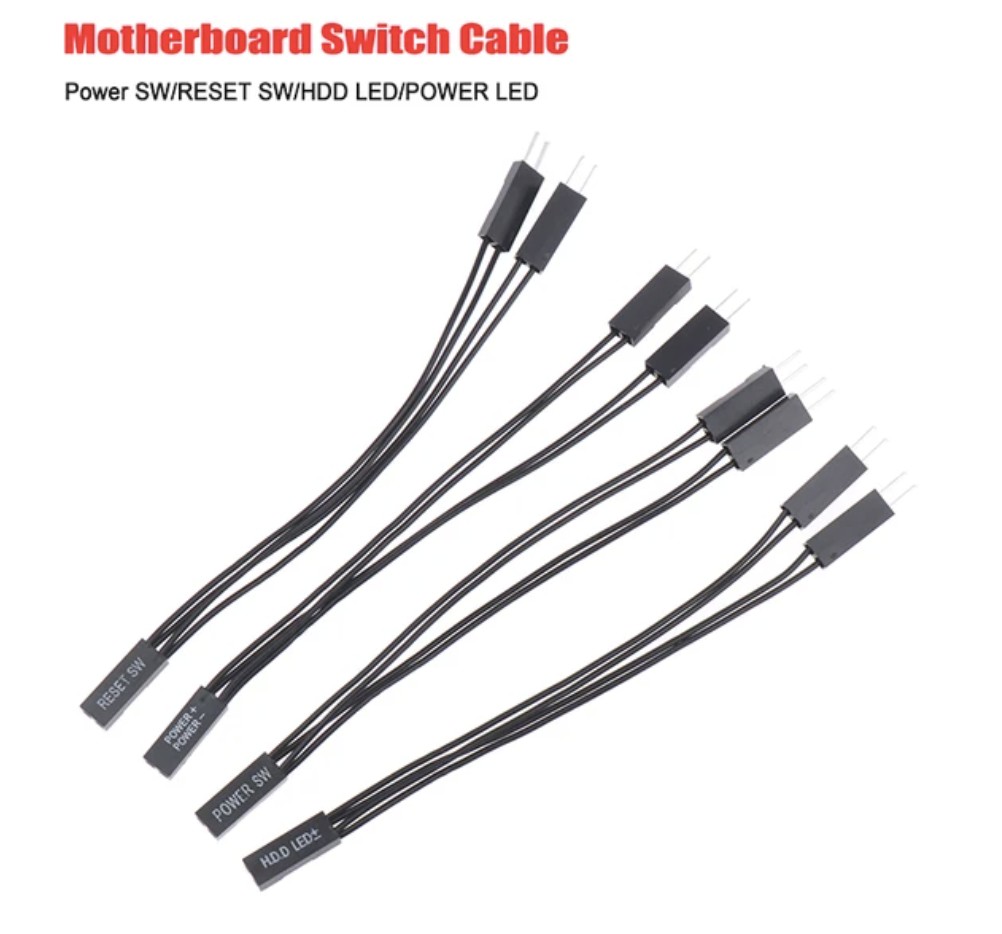

Actually, you could buy this and put your splitter in place of the power switch cable

Chassis Connector > extension cables > motherboard

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

jonherries

1395 posts

Uber Geek

Trusted

Subscriber

#3393410 12-Jul-2025 09:03

Ah… why don’t you use ssh or vnc to turn it off/restart it? Or have I missed something?

Second question why are you turning it off?

Jon

nzkc

1572 posts

Uber Geek

#3393516 12-Jul-2025 13:03

jonherries:

Ah… why don’t you use ssh or vnc to turn it off/restart it? Or have I missed something?

Second question why are you turning it off?

Jon

They mentioned "when it locks up" which might mean its unresponsive completely. Assuming it is; I'd be swaying towards some kind of remote KVM a la Jet KVM or Pi KVM

Maybe not the cheapest solution. But possibly the cleanest.
