Forums › LAN (ethernet/Wifi/routers/Bluetooth) › Mounting wall plate

jordan8thepie1

78 posts

Master Geek
+1 received by user: 18

#324553 26-Apr-2026 21:43

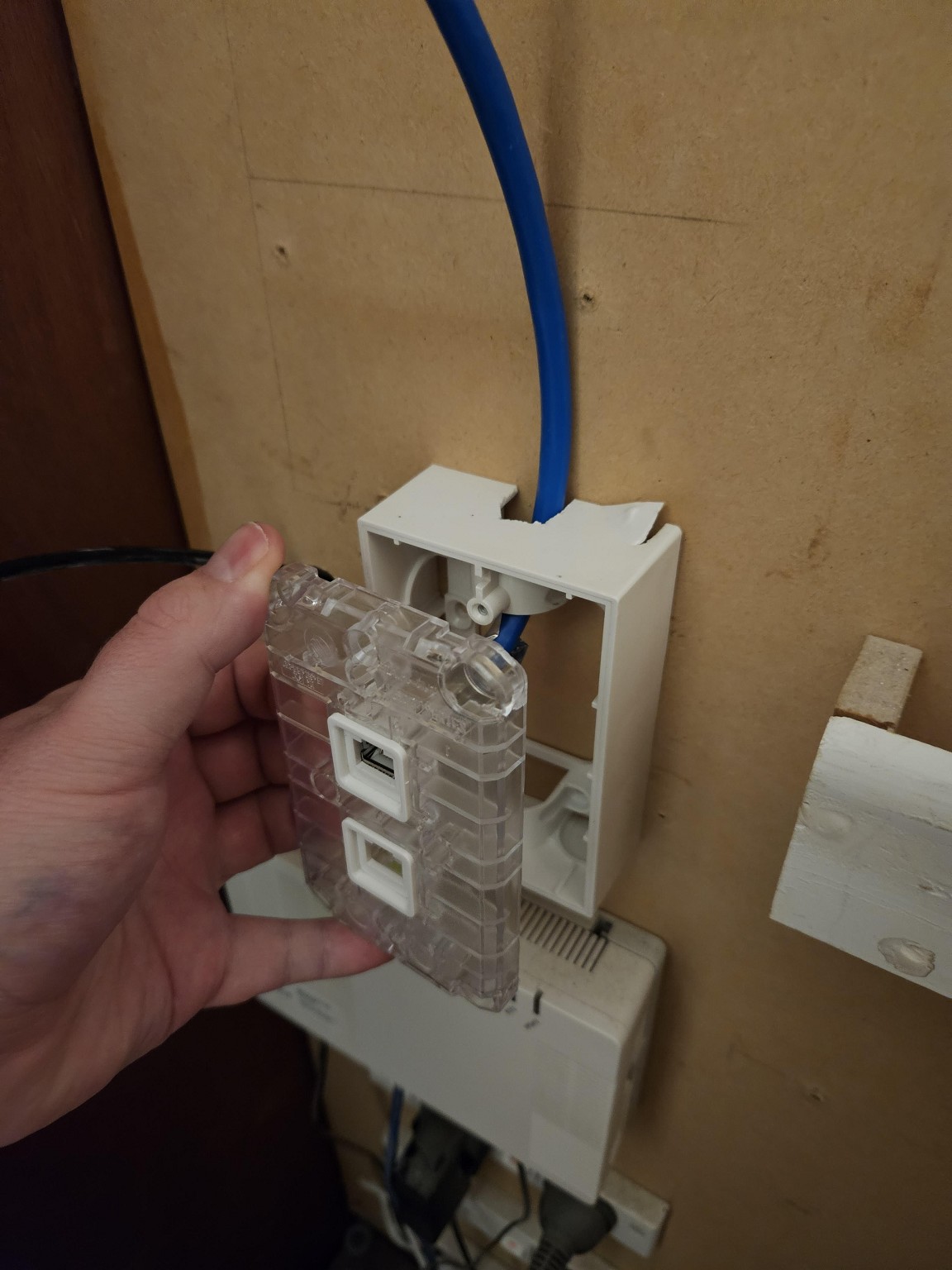

Does anyone know the best way to surface mount this pdl 600 series plate to the wall. it does not fit a 35mm box that i had on hand.

I am using 23awg Cat6a F-UTP cable and with the Dynamix FP-C6AUGS-06 Cat6a jacks its too small.

Is there a surface mount box that has a depth of about 50mm or does anyone have a better way to mount it without cutting a hole in the wall.

The cable is quite stiff too.

Two cables will be run.

k1w1k1d

1759 posts

Uber Geek
+1 received by user: 1370

#3484535 26-Apr-2026 22:41

Could you piggyback two mounting blocks and use longer screws to secure the outer block through the inner block?

Screw the base of a plastic box to the wall and surface mount the plate to the box lid.

coffeebaron

6325 posts

Uber Geek
+1 received by user: 3588

Trusted

Lifetime subscriber

#3484536 26-Apr-2026 22:44

Is cable terminated direct to RJ45 socket, or is it RJ45 jack to coupler?

Rural IT and Broadband support.

Broadband troubleshooting and master filter installs.
Starlink installer - one month free: https://www.starlink.com/?referral=RC-32845-88860-71
Wi-Fi and networking
Cel-Fi supply and installer - boost your mobile phone coverage legally

Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com

jordan8thepie1

78 posts

Master Geek
+1 received by user: 18

#3484540 27-Apr-2026 03:51

Its RJ45 jack to coupler specifically the Dynamix FP-C6AUGS-06 shielded keystone slime line jack.

coffeebaron

6325 posts

Uber Geek
+1 received by user: 3588

Trusted

Lifetime subscriber

#3484550 27-Apr-2026 08:09

If you terminate directly to a RJ45 socket, it should fit.

Rural IT and Broadband support.

Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com

richms

29326 posts

Uber Geek
+1 received by user: 10408

Trusted

Lifetime subscriber

#3484659 27-Apr-2026 10:28

I use these for all my surface outlet needs https://www.pbtech.co.nz/product/SCBDNX0125/Dynamix-FMT-UK-8P-8-Port-Unloaded-Keystone-Wall-Mo - they have 2 port one but smaller so may be more cramped with a coupler type - https://www.pbtech.co.nz/product/SCBDNX0124/Dynamix-FMT-UK-2P-2-Port-Unloaded-Keystone-Wall-Mo . I have never tried that in either version.

Richard rich.ms

mdooher

Hmm, what to write...
1458 posts

Uber Geek
+1 received by user: 919

ID Verified

Trusted

Lifetime subscriber

#3484679 27-Apr-2026 10:57

Those sockets are terrible. you need to use one that allows you to bring the cable in from the side, like standard the PDL one

https://www.jaycar.co.nz/rj45-cat-6-keystone-socket-white/p/YN8033?gad_source=1&gad_campaignid=23022874718&gbraid=0AAAAAD0dvLZDyqE9QlRhn4y2UiCEMFMDb&gclid=Cj0KCQjw77bPBhC_ARIsAGAjjV9niEmstAKXaF5yZ_gr23rKuaK05VZtgqRC-8YgGAI564fxV60MtCUaAljWEALw_wcB

Edit:

I see you are using shielded cable. if you don't live in an aluminium smelter it is probably overkill... so just don't terminate the shield, then you can use the above jack

Matthew

Lego

Shop now for Lego sets and other gifts (affiliate link).

jordan8thepie1

78 posts

Master Geek
+1 received by user: 18

#3484734 27-Apr-2026 14:38

i do have standard PDL ones. I didn't buy the cable someone else did at the time it was overkill its 300m of Dynamix 23awg F-UTP cable.

I have some PDL 619MD keystone jacks left over from the original install but these are for CAT6 not Cat 6a and have a tighter punch down.

i can replace it with these but will now have to undo all the work i did with the Dynamix keystone jack.

jordan8thepie1

78 posts

Master Geek
+1 received by user: 18

#3484770 27-Apr-2026 18:54

I ended up using two surface mount boxes screwed together to get the depth and that has worked.
