Charger for window cleaner

Forums › Home Workshop DIY › Charger for window cleaner

xpd

Geek of Coastguard
14115 posts

Uber Geek
+1 received by user: 4574

Retired Mod

ID Verified

Trusted

Lifetime subscriber

#290155 24-Oct-2021 16:03

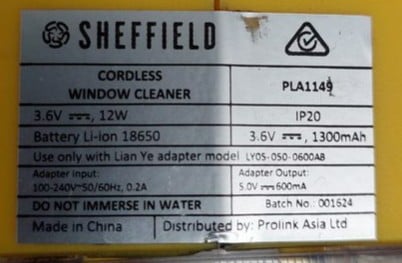

We have a Sheffield cordless window cleaner, however the charger for it has vanished.

Will one of these type of units do the job to charge this thing ?

https://www.jaycar.co.nz/5v-dc-1a-ultra-slim-power-supply-7dc-plugs/p/MP3144

XPD / Gavin

LinkTree

richms

29097 posts

Uber Geek
+1 received by user: 10205

Trusted

Lifetime subscriber

#2800379 24-Oct-2021 16:07

I wouldnt because its asking for 3.6v so is probably straight onto the cell perhaps by a protection circuit, but I doubt there is anything in there to control the current. Endemic on cheap aliexpress crap so if you can find a charger for something from there with a single cell it should be fine on this.

edit: Ok, read more and it lists 5v as well. So yeah must have some current limiting and control inside it. I would probably just get a USB to barrel jack cable instead of an overpriced jaycar adapter to run it off a spare phone charger.

Richard rich.ms

Jase2985

13730 posts

Uber Geek
+1 received by user: 6202

ID Verified

Lifetime subscriber

#2800389 24-Oct-2021 16:33

richms:

I wouldnt because its asking for 3.6v so is probably straight onto the cell perhaps by a protection circuit, but I doubt there is anything in there to control the current. Endemic on cheap aliexpress crap so if you can find a charger for something from there with a single cell it should be fine on this.

edit: Ok, read more and it lists 5v as well. So yeah must have some current limiting and control inside it. I would probably just get a USB to barrel jack cable instead of an overpriced jaycar adapter to run it off a spare phone charger.

adapter output says 5v .6A though?
