Rack Mount LCD Screen HT Rack?

Forums › Home Theatre (including HTPC and EPG Collector) › Rack Mount LCD Screen HT Rack?

Maxcat

273 posts

Ultimate Geek
+1 received by user: 74

#210317 22-Mar-2017 12:43

One of the best pieces of advice I have EVER received is to buy a server rack to house my HT gear.

They come up on TM every day and some go for a great deal less than the costly dedicated Atlantic Rack HT systems you see on AVS.

Anyway..having got one and I now getting ready to put my gear init, I really need to put a screen in there so I can see what settings are or just for music palyback.

How do you do it without big cost involved to import dedicated LCD racks.

NOTE: I want a 16x9 19" screen not 4:3 as the picture example.

Maxcat

273 posts

Ultimate Geek
+1 received by user: 74

#1745734 22-Mar-2017 12:46

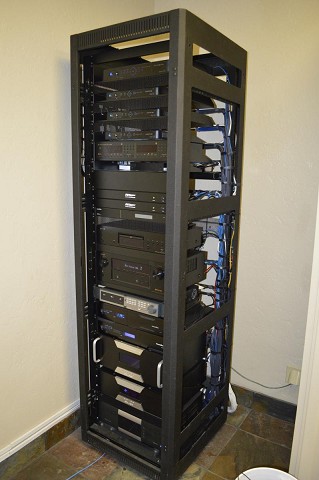

Added a picture of a typical 42U server rack used for HT - 17" width for standard rack mounting of pro and domestic gear.

richms

29098 posts

Uber Geek
+1 received by user: 10209

Trusted

Lifetime subscriber

#1745743 22-Mar-2017 12:54

In the past I saw a bracket that let you use the 100mm vesa to recess a screen slightly into the rack, It was crazy overpriced like most things with "rack" in the name.

I didnt bother, just put a TV on the wall beside it, bigger, cheaper, actually useful to watch things on.

Richard rich.ms

richms

29098 posts

Uber Geek
+1 received by user: 10209

Trusted

Lifetime subscriber

#1745747 22-Mar-2017 12:56

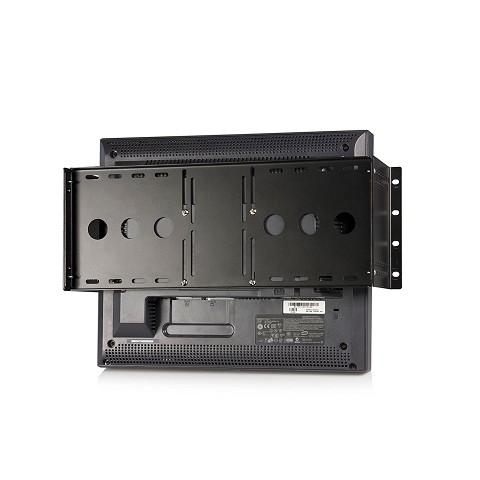

Here is the thing on Amazon. Its come down a bit but shipping here would be crazy price and locally they were in the $200 range.

Richard rich.ms

Maxcat

273 posts

Ultimate Geek
+1 received by user: 74

#1745749 22-Mar-2017 12:57

Thanks I started to wonder if you just get one of those standard TV wall mount pieces and 'modify' it to work in a rack - hoping of course an LCD screen will just take the screw hole locations on the back..or maybe modify a piece of wood as the buffer?..

Maxcat

273 posts

Ultimate Geek
+1 received by user: 74

#1745750 22-Mar-2017 12:58

Yeah that Amazon piece is the one.

Friends coming down from the US may have to add something in their case!

Thanks that is EXACTLY it!

davidcole

6099 posts

Uber Geek
+1 received by user: 1465

Trusted

#1745754 22-Mar-2017 13:02

I put in something like this for my machine ina cupbaord:

https://www.aliexpress.com/item

Sorry crappy link.

[Mod: edited to shorten link]

Previously known as psycik

Home Assistant: Gigabyte AMD A8 Brix, Home Assistant with Aeotech ZWave Controller, Raspberry PI, Wemos D1 Mini, Zwave, Shelly Humidity and Temperature sensors
Media:Chromecast v2, ATV4 4k, ATV4, HDHomeRun Dual
Server Host Plex Server 3x3TB, 4x4TB using MergerFS, Samsung 850 evo 512 GB SSD, Proxmox Server with 1xW10, 2xUbuntu 22.04 LTS, Backblaze Backups, usenetprime.com fastmail.com Sharesies Trakt.TV Sharesight

HP

Shop now for HP laptops and other devices (affiliate link).

Jase2985

13731 posts

Uber Geek
+1 received by user: 6202

ID Verified

Lifetime subscriber

#1745763 22-Mar-2017 13:15

davidcole:

Sorry crappy link.

use something like this then
https://goo.gl/

Maxcat

273 posts

Ultimate Geek
+1 received by user: 74

#1745803 22-Mar-2017 13:42

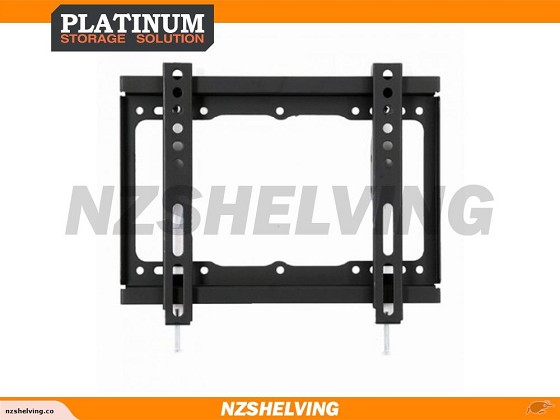

Found this at the usual place..with a bit of modifying it may work. For $8 it's worth a shot!
