Adsl1 max speed

Forums › Spark New Zealand (including Skinny and BigPipe) › Adsl1 max speed

1 | 2 | 3 | 4 | 5 | 6 | 7

650 posts

Ultimate Geek
+1 received by user: 115

Trusted

Lifetime subscriber

#868153 29-Jul-2013 21:43

AppleJackXD:
AKLWestie: Can you post line stats?

Line Attenuation 8 - 13 dB
Download Rate Range ADSL2+: 13.0 - 15.1 Mb/s
Upload Rate Range ADSL2+: 1.1 - 1.2 Mb/s

Do you get this stats from the modem / router? =-)

Kirdog

202 posts

Master Geek
+1 received by user: 23

#868154 29-Jul-2013 21:43

AppleJackXD:
AKLWestie: Can you post line stats?

Line Attenuation 8 - 13 dB
Download Rate Range ADSL2+: 13.0 - 15.1 Mb/s
Upload Rate Range ADSL2+: 1.1 - 1.2 Mb/s

Oh really? your screen show only 10 down and 0.8 Up

O_O

AppleJackXD:
Kirdog: Hmmm, one more thing: I have found some posts about x2000 sync problems. Do you have another router to check the sync?

I have a dlink i will try it now.

WOO excellent.

Also try to find DSL line stats and post it here pls :)

Sorry about my English guys :>

AppleJackXD

150 posts

Master Geek
+1 received by user: 11
Inactive user

#868174 29-Jul-2013 21:55

Kirdog:
AKLWestie: Can you post line stats?

I think he can,t because x2000 don't have ADSL driver page for some reason.

AppleJackXD! try this link: http://192.168.1.1/setup.cgi?next_file=adsl_driver.htm

And also check for the software update for your router.

How do i access the config page for the Technicolour TG589VN V2 ? NEVERMIND I FIGURED IT OUT

AppleJackXD

150 posts

Master Geek
+1 received by user: 11
Inactive user

#868175 29-Jul-2013 21:55

AKLWestie:
AppleJackXD:
AKLWestie: Can you post line stats?

Line Attenuation 8 - 13 dB
Download Rate Range ADSL2+: 13.0 - 15.1 Mb/s
Upload Rate Range ADSL2+: 1.1 - 1.2 Mb/s

Do you get this stats from the modem / router? =-)

No i got them from cbrpilot from this forum he works at telecom

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#868181 29-Jul-2013 22:02

AppleJackXD:
Kirdog:
AKLWestie: Can you post line stats?

I think he can,t because x2000 don't have ADSL driver page for some reason.

AppleJackXD! try this link: http://192.168.1.1/setup.cgi?next_file=adsl_driver.htm

And also check for the software update for your router.

How do i access the config page for the Technicolour TG589VN V2 ?

check what your default gateway is, thats properly the ip for it..

off the top of my head, its usally 192.168.1.254 for telecom ones..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Kirdog

202 posts

Master Geek
+1 received by user: 23

#868183 29-Jul-2013 22:04

AppleJackXD:
Kirdog:
AKLWestie: Can you post line stats?

I think he can,t because x2000 don't have ADSL driver page for some reason.

AppleJackXD! try this link: http://192.168.1.1/setup.cgi?next_file=adsl_driver.htm

And also check for the software update for your router.

How do i access the config page for the Technicolour TG589VN V2 ?

I'm not sure but something like this: http://192.168.1.254/cgi/b/dsl/dt/

Or probably: menu > Broadband connection > DSL connection > advanced view

Sorry about my English guys :>

Quic Broadband

Move to New Zealand's best fibre broadband service (affiliate link). Free setup code: R587125ERQ6VE. Note that to use Quic Broadband you must be comfortable with configuring your own router.

AppleJackXD

150 posts

Master Geek
+1 received by user: 11
Inactive user

#868184 29-Jul-2013 22:05

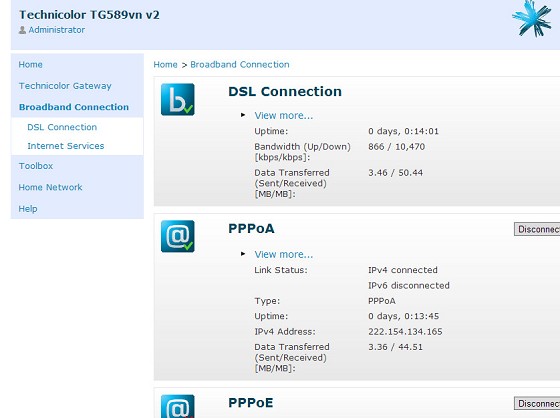

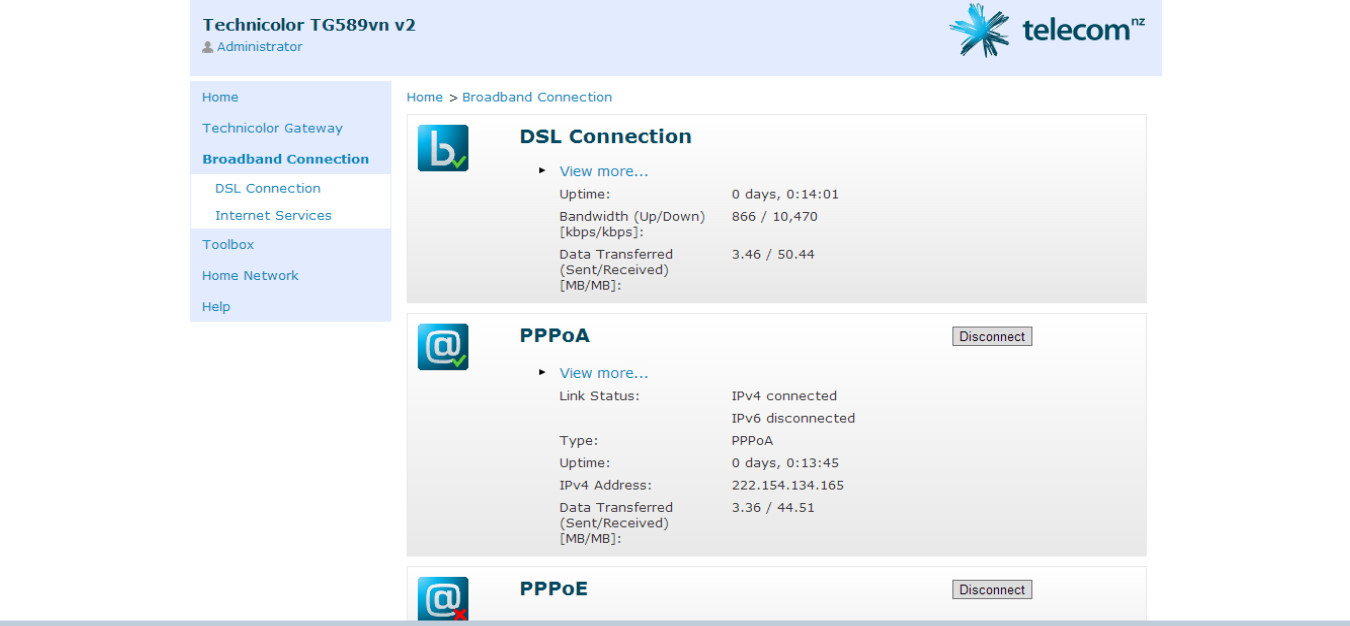

Here are my stats on the Technicolor router

Kirdog

202 posts

Master Geek
+1 received by user: 23

#868185 29-Jul-2013 22:08

AppleJackXD: Here are my stats on the Technicolor router

Click "View more..." On DSL connection tab.
And post new screen.

Sorry about my English guys :>

AppleJackXD

150 posts

Master Geek
+1 received by user: 11
Inactive user

#868186 29-Jul-2013 22:13

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#868187 29-Jul-2013 22:13

AppleJackXD: Here are my stats on the Technicolor router

need to dig down to the stats themselves, this is my pet hate with the tecnicolours, all the juicy stats need to be hunted down..

just keep clicking till you get to line attention error rates etc

do you currently have a master filter installed? if you are indeed 8db by the prequal, would have expected far higher than 10mbit..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Kirdog

202 posts

Master Geek
+1 received by user: 23

#868189 29-Jul-2013 22:17

AppleJackXD:

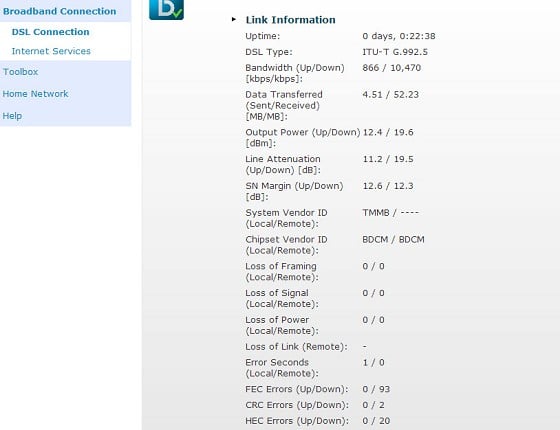

19.5 Line attenuation. Not 8!

But you can still get at least 15-16 Mbps with this stats. So, seems your connection is capped on DSLAM/Telecom side. Check your home cabling as well, remove all long extensions to the router and check for the filters/splitters for the phones. Do you have master filter installed?

Also you have G.992.5 it is an ADSL2+ connection.

Sorry about my English guys :>

New World

Shop on-line at New World now for your groceries (affiliate link).

AppleJackXD

150 posts

Master Geek
+1 received by user: 11
Inactive user

#868191 29-Jul-2013 22:21

hio77:
AppleJackXD: Here are my stats on the Technicolor router

need to dig down to the stats themselves, this is my pet hate with the tecnicolours, all the juicy stats need to be hunted down..

just keep clicking till you get to line attention error rates etc

do you currently have a master filter installed? if you are indeed 8db by the prequal, would have expected far higher than 10mbit..

No i have no splitter was waiting for the one that comes with the vdsl2 since we just payed the 99 dollar install fee

I know getting my phone wiring re done would deffinetly give me a jump in speed so should i get new phone wiring this week or just wait for my vdsl2 installation ? i don't really want to spend more money since we just paid for the vdsl2 and my router is next to my phone jack so no long lines except for a big cat6 cable going back to my bedroom about 12 meters is the cat 6 ethernet cable.

Kirdog

202 posts

Master Geek
+1 received by user: 23

#868192 29-Jul-2013 22:25

AppleJackXD:
hio77:
AppleJackXD: Here are my stats on the Technicolor router

need to dig down to the stats themselves, this is my pet hate with the tecnicolours, all the juicy stats need to be hunted down..

just keep clicking till you get to line attention error rates etc

do you currently have a master filter installed? if you are indeed 8db by the prequal, would have expected far higher than 10mbit..

No i have no splitter was waiting for the one that comes with the vdsl2 since we just payed the 99 dollar install fee

I know getting my phone wiring re done would deffinetly give me a jump in speed so should i get new phone wiring this week or just wait for my vdsl2 ?

Wait for technician, hope he will solve your problems. And don't worry about ADSL2+ or ADSL0.1 or +100500LSDA... You will get VDSL2, just wait! :)

Sorry about my English guys :>

AppleJackXD

150 posts

Master Geek
+1 received by user: 11
Inactive user

#868194 29-Jul-2013 22:27

Kirdog:
AppleJackXD:
hio77:
AppleJackXD: Here are my stats on the Technicolor router

need to dig down to the stats themselves, this is my pet hate with the tecnicolours, all the juicy stats need to be hunted down..

just keep clicking till you get to line attention error rates etc

do you currently have a master filter installed? if you are indeed 8db by the prequal, would have expected far higher than 10mbit..

No i have no splitter was waiting for the one that comes with the vdsl2 since we just payed the 99 dollar install fee

I know getting my phone wiring re done would deffinetly give me a jump in speed so should i get new phone wiring this week or just wait for my vdsl2 ?

Wait for technician, hope he will solve your problems. And don't worry about ADSL2+ or ADSL0.1 or +100500LSDA... You will get VDSL2, just wait! :)

Yeah i know it's coming michaelmurphy told me he checked it all out.... I just wanted a install date from the guy on the phone that's all and im angry he lied to me.

AppleJackXD

150 posts

Master Geek
+1 received by user: 11
Inactive user

#868195 29-Jul-2013 22:30

Kirdog:
AppleJackXD:

19.5 Line attenuation. Not 8!

But you can still get at least 15-16 Mbps with this stats. So, seems your connection is capped on DSLAM/Telecom side. Check your home cabling as well, remove all long extensions to the router and check for the filters/splitters for the phones. Do you have master filter installed?

Also you have G.992.5 it is an ADSL2+ connection.

Am i being speed capped because chorus map says im in 10 Mb zone ? 2 house down from my house is 20 Mbit zone.
