Hi all,
I'm trying to establish a link between the analog PABX in a small Wellington office and a small Auckland office.
I have two SPA3102 that i have conected to a spare extention on each PABX (into the line port on the SPA).
Im trying to configure it so that when the extension of the SPA is dialed it will transfer to the other office SPA which would dial the extenion listed in the dialplan.
The connection looks like this: Wgtn PABX > Wgtn SPA3102 > Wgtn Modem/Router > WWW > AKL Modem/Router
> Akl SPA3102 > Akl PABX.
I think i need to have a different port between the Line and PSTN tab but would like some expert guidance,
thus the reason for my post.
Many thanks in advance for any help, will reduce the size of the lump on my head from smacking it against a wall.

Configuration as follows
Wgtn Office - 192.168.1.41, port forward 5064 to 192.168.1.41.

Line 1 tab
Line Enable: Yes
Sip port: 5064
Proxy: [AKL Office WAN IP]
Register: Yes
UserID: WgtnOffice
Use Auth ID: Yes
Auth ID: WgtnOffice
Password: secret
Dial Plan: (S0<:AklOffice@AKL Office WAN IP:5064>)
Enable IP Dialing: Yes

PSTN Line tab
Line Enable: Yes
Sip Port: 5064
Proxy: [AKL Office WAN IP]
Register: Yes
UserID: WgtnOffice
Use Auth ID: Yes
Auth ID: WgtnOffice
Password: secret
Dial Plan 1: (S0<:AklOffice@Akl Office WAN IP:5064>)
Dial Plan 2: (<201>S0)
Voip-to-pstn enable: Yes
VOIP Caller Auth Method: HTTP Digest
Line 1 VOIP Caller DP:2
VOIP User 1 Auth ID: AklOffice
VOIP User 1 DP: 2
Voip User 1 Password: secret
PSTN-to-Voip enable: Yes
PSTN ring thru line 1: Yes
PSTN Caller Default DP: 2
FXO answer delay: 0
PSTN answer delay: 0

Akl Office - 192.168.1.124, port forward 5064 UDP to 192.168.1.124.

Line 1 tab
Line Enable: Yes
Sip port: 5064
Proxy: [Wgtn Office WAN IP]
Register: Yes
UserID: AklOffice
Use Auth ID: Yes
Auth ID: AklOffice
Password: secret
Dial Plan: (S0<:WgtnOffice@Wgtn Office WAN IP:5064>)
Enable IP Dialing: Yes

PSTN Line tab
Line Enable: Yes
Sip Port: 5064
Proxy: [Wgtn Office WAN IP]
Register: Yes
UserID: AklOffice
Use Auth ID: Yes
Auth ID: AklOffice
Password: secret
Dial Plan 1: (S0<:WgtnOffice@Wgtn Office WAN IP:5064>)
Dial Plan 2: (<301>S0)
Voip-to-pstn enable: Yes
VOIP Caller Auth Method: HTTP Digest
Line 1 VOIP Caller DP:2
VOIP User 1 Auth ID: WgtnOffice
VOIP User 1 DP: 2
Voip User 1 Password: secret
PSTN-to-Voip enable: Yes
PSTN ring thru line 1: Yes
PSTN Caller Default DP: 2
FXO answer delay: 0
PSTN answer delay: 0

chevrolux

3682 posts

Uber Geek
+1 received by user: 1390

Subscriber

Reply # 889869 4-Sep-2013 19:23

You will need a SIP proxy to handle the call between the two sites.

If the PABX's are on PSTN lines getting Centrex put on them would be a better option if you just want free calls and 'extension dialling' between sites.

sbiddle

27270 posts

Uber Geek
+1 received by user: 6699

Moderator

Trusted

Biddle Corp

Lifetime subscriber

Reply # 889872 4-Sep-2013 19:34

chevrolux: You will need a SIP proxy to handle the call between the two sites.

If the PABX's are on PSTN lines getting Centrex put on them would be a better option if you just want free calls and 'extension dialling' between sites.

You don't need a proxy, you can make a SIP URI call between devices which is presumably what the OP is trying to do.

I just don't understand the setup or goal from that post so it's hard to comment on a solution.

Tricksdrummer

25 posts

Geek

Reply # 1101722 4-Aug-2014 14:27

ok, i'm having another crack at this.
Config change, i now have the SPA's on a VPN.
I have removed the registration so i can get the connection working first befire complicating things.

To clarify, am wanting to dial the extension '301' on the AKL office Pabx from the Wgtn office Pabx.
and in return dial the extension '201' on the Wgtn office Pabx from the Akl office Pabx.

Wgtn Office - 192.168.1.35

Line 1 tab
Line Enable: No

PSTN Line tab
Line Enable: Yes
Sip Port: 5064
Register: No
UserID: WgtnOffice
Use Auth ID: Yes
Auth ID: WgtnOffice
Dial Plan 1: (S0<:AklOffice@192.168.2.35:5064>)
Dial Plan 2: (S0<201>)
Voip-to-pstn enable: Yes
VOIP Caller Auth Method: HTTP Digest
Line 1 VOIP Caller DP:2
VOIP User 1 Auth ID: WgtnOffice
VOIP User 1 DP: 2
PSTN-to-Voip enable: Yes
PSTN Caller Default DP: 2
FXO answer delay: 0
PSTN answer delay: 0

Akl Office - 192.168.2.35

Line 1 tab
Line Enable: No

PSTN Line tab
Line Enable: Yes
Sip Port: 5064
Register: No
UserID: AklOffice
Use Auth ID: Yes
Auth ID: AklOffice
Dial Plan 1: (S0<:WgtnOffice@192.168.1.35:5064>)
Dial Plan 2: (S0<301>)
Voip-to-pstn enable: Yes
VOIP Caller Auth Method: HTTP Digest
Line 1 VOIP Caller DP:2
VOIP User 1 Auth ID: AklOffice
VOIP User 1 DP: 2
PSTN-to-Voip enable: Yes
PSTN Caller Default DP: 2
FXO answer delay: 0
PSTN answer delay: 0

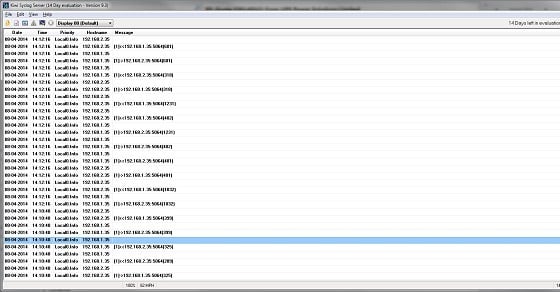

I have the syslog from the SPA's when trying a call from Wgtn to Akl but cant find the fault codes on Google to help me work out what's wrong, it appears the SPA is receiving the VOIP call but not passing it on to the PSTN line:
