ADSL2 Master filter worth it?

Forums › New Zealand Broadband › ADSL2 Master filter worth it?

NinjaCrayfish

5 posts

Wannabe Geek

#271914 1-Jun-2020 17:30

Hello

I was wondering if installing a master filter to my property would benefit me in anyway? There is 2 jack points in the house that I can run my 2D modem off.

One is in the kitchen and looks like a standard phone line and the other is in the living room and looks like a an ethernet port.

NinjaCrayfish

5 posts

Wannabe Geek

#2496248 1-Jun-2020 17:31

Linux

12173 posts

Uber Geek
+1 received by user: 8469

Trusted

Lifetime subscriber

#2496250 1-Jun-2020 17:32

Do you have a home line delivered over POTS or via the internet / modem?

NinjaCrayfish

5 posts

Wannabe Geek

#2496262 1-Jun-2020 17:38

Unsure. We do not use a home phone and I just have naked broadband.

Would I just need a phone to plug into the kitchen jack point? We are rural customers.

Jase2985

13730 posts

Uber Geek
+1 received by user: 6202

ID Verified

Lifetime subscriber

#2496265 1-Jun-2020 17:41

ultimately you want to change the house wiring to just have it go straight to where you have the modem and mot to any other jacks around the place. if that were the case then a master filter might not achieve much

Linux

12173 posts

Uber Geek
+1 received by user: 8469

Trusted

Lifetime subscriber

#2496266 1-Jun-2020 17:41

If on Naked then just setup a master telephone jack point and no master filter required

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#2496276 1-Jun-2020 18:15

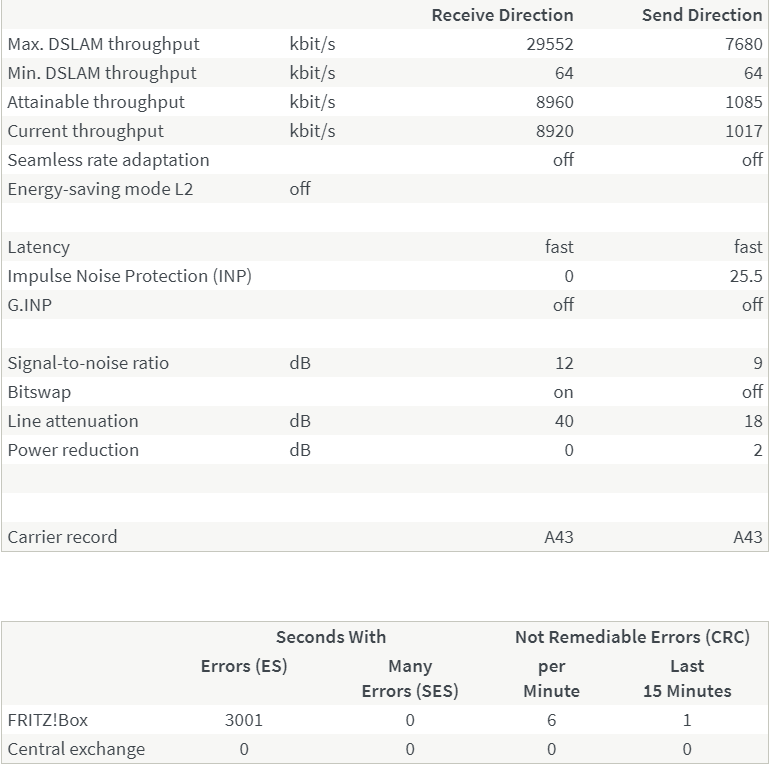

a master filter would likely clean up the line a little bit, it's not exactly the most healthiest, but nothing particularly wrong with it too - functioning as expected, dslam has pulled profile back a little to make it more stable.

Very well could be external, but highly likely to be internal first.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Apple TV

Stream your favourite shows now on Apple TV (affiliate link).

coffeebaron

6304 posts

Uber Geek
+1 received by user: 3566

Trusted

Lifetime subscriber

#2496296 1-Jun-2020 21:00

I'd say at least 95% of master filters I've installed have made a positive difference. If there are no major issues and it's naked DSL, then difference may not be significant, but if you are on a rural line, then any extra little bit of performance you can squeeze out of the line is always a good thing.

Technically for naked DSL you don't need the master filter, but basically the work is the same whether you fit the master filter at the end or not, so may as well fit it. There was some Chorus testing done a few years ago that came to the conclusion that even on a clean naked DSL line a master filter had some influence; possibly it also helps reduce additional noise on the line or something like that.

Rural IT and Broadband support.

Broadband troubleshooting and master filter installs.
Starlink installer - one month free: https://www.starlink.com/?referral=RC-32845-88860-71
Wi-Fi and networking
Cel-Fi supply and installer - boost your mobile phone coverage legally

Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com

nztim

4012 posts

Uber Geek
+1 received by user: 2710

ID Verified

Trusted

TEAMnetwork

Subscriber

#2497236 3-Jun-2020 09:52

In many cases even on a "naked" line there is still jumpering in place to voice services (giving a disconnected tone) so a mater filter is ALWAYS a good thing
