What’s the Best location for a master filter/splitter when installing a Signet ST2206?

Forums › LAN (ethernet/Wifi/routers/Bluetooth) › What’s the Best location for a master filter/splitter when installing a Signet ST2206?

Blanch

254 posts

Ultimate Geek

#198568 14-Jul-2016 12:20

I’m about to install a Signet ST2206 and wondering where the best location for the master filter/splitter is:

On the ST2206 in the patch panel located in the garage with the modem,

Or up 30m of CAT5e in the Demarc point on the side of the house?

Cheers,

sbiddle

30853 posts

Uber Geek

Retired Mod

Trusted

Biddle Corp

Lifetime subscriber

#1592461 14-Jul-2016 13:05

It would be a lot of extra work to place the filter at the demark when the ST2206 is designed to have the master filter fitted to it.

Disrespective

1926 posts

Uber Geek

#1592492 14-Jul-2016 13:33

Just put it on the ST2206. What's your reasoning behind why you would put it anywhere else?

Blanch

254 posts

Ultimate Geek

#1592510 14-Jul-2016 14:03

Disrespective:

Just put it on the ST2206. What's your reasoning behind why you would put it anywhere else?

Thanks for the replies

Reading through old posts, most look to suggest placing the master filter/splitter in the Demarc point (one of the photos of a newer Demarc point looked to had a location at the top for the master filter/splitter to sit in).

richms

28189 posts

Uber Geek

Trusted

Lifetime subscriber

#1592541 14-Jul-2016 14:24

Blanch:

Reading through old posts, most look to suggest placing the master filter/splitter in the Demarc point (one of the photos of a newer Demarc point looked to had a location at the top for the master filter/splitter to sit in).

Because that is easier than stuffing it behind some random outlet in a house without structured cabling.

Richard rich.ms

Blanch

254 posts

Ultimate Geek

#1592564 14-Jul-2016 14:37

richms:

Blanch:

Reading through old posts, most look to suggest placing the master filter/splitter in the Demarc point (one of the photos of a newer Demarc point looked to had a location at the top for the master filter/splitter to sit in).

Because that is easier than stuffing it behind some random outlet in a house without structured cabling.

Oh ok, I’m replacing the 4 wire master filter/splitter I stuffed behind my test point 6 years ago when I moved into the house.

Blanch

254 posts

Ultimate Geek

#1594144 17-Jul-2016 19:27

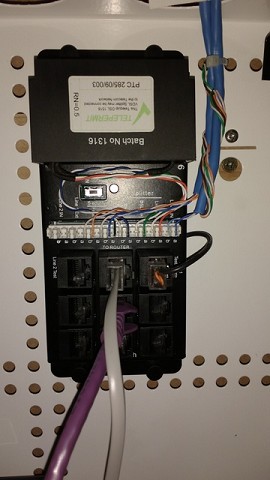

Thanks again, attached the master filter/splitter to the Signet ST2206 over the weekend, Now to see if I can get VDSL

webwat

2036 posts

Uber Geek

Trusted

#1597750 24-Jul-2016 15:13

sbiddle:

It would be a lot of extra work to place the filter at the demark when the ST2206 is designed to have the master filter fitted to it.

However, if you have phone wiring split off the incoming line at the demarc then you either need to move those to your cabinet or put the master filter at the demarc.

Time to find a new industry!

Quic Broadband

Move to New Zealand's best fibre broadband service (affiliate link). Free setup code: R587125ERQ6VE. Note that to use Quic Broadband you must be comfortable with configuring your own router.

richms

28189 posts

Uber Geek

Trusted

Lifetime subscriber

#1597857 24-Jul-2016 20:45

webwat:

However, if you have phone wiring split off the incoming line at the demarc then you either need to move those to your cabinet or put the master filter at the demarc.

If your phone wiring leaves from there then you don't really have a structured wiring installation.

Plus you will have problems when fiber comes along unless you let them install a new run back to the copper point of entry, which is often nothing to do at all with the fiber one so dual cable is not always an option.

Richard rich.ms

webwat

2036 posts

Uber Geek

Trusted

#1598622 25-Jul-2016 23:28

richms:

webwat:

However, if you have phone wiring split off the incoming line at the demarc then you either need to move those to your cabinet or put the master filter at the demarc.

If your phone wiring leaves from there then you don't really have a structured wiring installation.

Plus you will have problems when fiber comes along unless you let them install a new run back to the copper point of entry, which is often nothing to do at all with the fiber one so dual cable is not always an option.

Sometimes the structured cabling coexists with the old phone wiring.
