Recognise this power connector?

Forums › LAN (ethernet/Wifi/routers/Bluetooth) › Recognise this power connector?

Dynamic

4015 posts

Uber Geek
+1 received by user: 1851

ID Verified

Trusted

Lifetime subscriber

#261813 16-Dec-2019 16:38

Hi Team

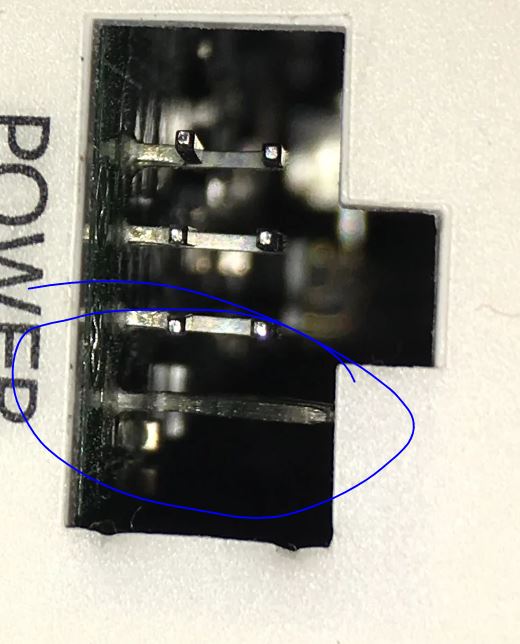

Just curious as to whether anyone recognises the bottom power connector in this image. I initially thought it was for an ONT, but the top connector in the photo is from my ONT which says on the front it is a Model Type 200. From the side the connectors look the same, but the 'pin' layout is obviously different. Possibly an older model ONT that I've not come across?

Cheers

“Don't believe anything you read on the net. Except this. Well, including this, I suppose.” Douglas Adams

wellygary

8810 posts

Uber Geek
+1 received by user: 5287

#2376433 16-Dec-2019 16:49

looks very similar to PCIe without the clip ?

Dynamic

4015 posts

Uber Geek
+1 received by user: 1851

ID Verified

Trusted

Lifetime subscriber

#2376435 16-Dec-2019 16:51

@wellygary I think you are referring to the connector my ONT uses. The one with the 'slots' is the one I'm curious about.

“Don't believe anything you read on the net. Except this. Well, including this, I suppose.” Douglas Adams

sparkz25

750 posts

Ultimate Geek
+1 received by user: 284
Inactive user

#2376485 16-Dec-2019 18:24

looks like it would fit into something like this https://a.pololu-files.com/picture/0J682.1200.jpg?9c32726ecf9d3ba284f8829db3631a34

what's the rest of the connector look like?

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#2376557 16-Dec-2019 19:27

Looks like the sort of plug i'd stick on something that i just want to be a dick about making you order a special power supply...

Only a few companies come to mind for that...

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

BarTender

3629 posts

Uber Geek
+1 received by user: 2572

ID Verified

Trusted

Lifetime subscriber

#2376706 17-Dec-2019 07:32

I would like to see more photos of the other connector and a photo of the power brick.

It's not an ONT power supply from any of the LFCs as Huawei (Enable and UFF) and Ericsson (Northpower) both use standard round 2.5mm connectors from memory.

The plug on the left as you have already said is the older style Chorus Molex Micro-fix dual row connectors. https://www.molex.com/molex/products/datasheet.jsp?part=active/0430250800_CRIMP_HOUSINGS.xml

epr

267 posts

Ultimate Geek
+1 received by user: 132

Lifetime subscriber

#2376719 17-Dec-2019 07:54

Dynamic:
@wellygary I think you are referring to the connector my ONT uses. The one with the 'slots' is the one I'm curious about.

You put them side by side in the image then referred to the bottom connector.

Here is my Quic referral https://account.quic.nz/refer/39513 if you are keen to change ISP and to get free setup (save $29). I will get a $50 credit if you use this. Thank you very much if you use my link but I'm sure there are quite a few others who could share the same on here, no hard feelings if you use a different link.

Samsung

Shop now on Samsung phones, tablets, TVs and more (affiliate link).

Dynamic

4015 posts

Uber Geek
+1 received by user: 1851

ID Verified

Trusted

Lifetime subscriber

#2376826 17-Dec-2019 10:21

epr: You put them side by side in the image then referred to the bottom connector.

For some reason the 'thumbnail' is rotated. If you click on the image to make it larger, the orientation is correct.

“Don't believe anything you read on the net. Except this. Well, including this, I suppose.” Douglas Adams

richms

29098 posts

Uber Geek
+1 received by user: 10208

Trusted

Lifetime subscriber

#2376828 17-Dec-2019 10:23

Nope, click on the image and they are still left and right like the thumbnail shows.

Richard rich.ms

Dynamic

4015 posts

Uber Geek
+1 received by user: 1851

ID Verified

Trusted

Lifetime subscriber

#2376838 17-Dec-2019 10:41

richms:

Nope, click on the image and they are still left and right like the thumbnail shows.

Weird... not for me using Chrome on Windows.

MYSTERY SOLVED

That odd connector? It turns out this is what you see when the previous tenant of a building decides to unplug the ONT, rips the connector out by force, and takes the 'socket' out in the process.

Time to get the friendly folk at @Chorusnz involved via the ISP...

“Don't believe anything you read on the net. Except this. Well, including this, I suppose.” Douglas Adams

dolsen

1483 posts

Uber Geek
+1 received by user: 319

Trusted

Lifetime subscriber

#2376861 17-Dec-2019 11:23

It looks like you might be able to just slide it back in?

Dynamic

4015 posts

Uber Geek
+1 received by user: 1851

ID Verified

Trusted

Lifetime subscriber

#2376865 17-Dec-2019 11:32

One of my team did try, with the 'plug' going into the 'socket', and there was no life in the ONT. At that stage we did not know exactly what the fault was, though. Hopefully we can get the ONT replaced PDQ.

“Don't believe anything you read on the net. Except this. Well, including this, I suppose.” Douglas Adams

Apple TV

Stream your favourite shows now on Apple TV (affiliate link).

Chorusnz

436 posts

Ultimate Geek
+1 received by user: 603

Trusted

Chorus

#2377089 17-Dec-2019 15:06

Dynamic:

richms:

Nope, click on the image and they are still left and right like the thumbnail shows.

Weird... not for me using Chrome on Windows.

MYSTERY SOLVED

That odd connector? It turns out this is what you see when the previous tenant of a building decides to unplug the ONT, rips the connector out by force, and takes the 'socket' out in the process.

Time to get the friendly folk at @Chorusnz involved via the ISP...

🤔 Something is not quite right here.........cant quite put my finger on it

^Richard

sparkz25

750 posts

Ultimate Geek
+1 received by user: 284
Inactive user

#2377148 17-Dec-2019 16:42

Looks like when your coworker attempted to plug it back in he has bent the pins that the molex connector actually uses to supply power to the ONT

Dynamic

4015 posts

Uber Geek
+1 received by user: 1851

ID Verified

Trusted

Lifetime subscriber

#2377165 17-Dec-2019 17:06

Good spotting. I guess we'll never know if it was us trying to put Humpty back together or whether it was the previous tenant.

The good folks at @Chorusnz are coming out on Thursday afternoon to sort this on their ticket SD4318241, but hopefully if they have a cancellation they can bring the job forward. Hint hint. Surely nobody else wants their help a week before Christmas!?!?
