How to get house ethernet going?

Forums › LAN (ethernet/Wifi/routers/Bluetooth) › How to get house ethernet going?

BSzombie

1 post

Wannabe Geek

#280412 13-Dec-2020 13:05

I have a house ethernet system that was installed when we built the house. How do I use it?

nztim

4012 posts

Uber Geek
+1 received by user: 2710

ID Verified

Trusted

TEAMnetwork

Subscriber

#2620892 13-Dec-2020 13:20

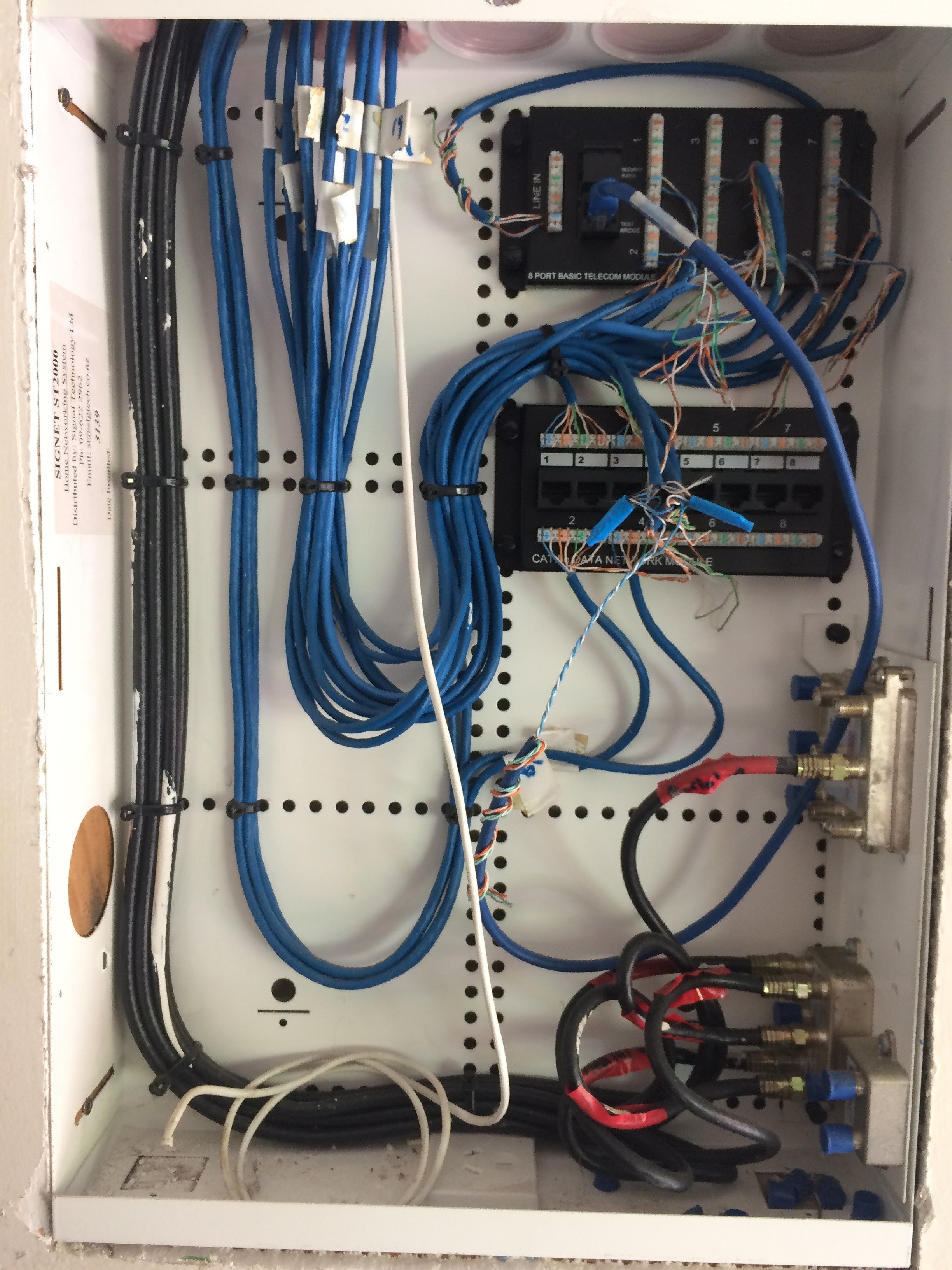

The top panel is your voice/dsl the bottom one is the ports around the house

You need a small Ethernet switch to patch those ports

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

cyril7

9073 posts

Uber Geek
+1 received by user: 2499

ID Verified

Trusted

Subscriber

#2620901 13-Dec-2020 13:53

What a cluster f3ck, I would get a data cabler in to move all the phone terminated cables to the data panel below.

Anyway as Tim says the current four data terminated circuits can distribute the lan from your router.

Where currently is the router, what data circuits are with it, some photos might help.

Cyril

nztim

4012 posts

Uber Geek
+1 received by user: 2710

ID Verified

Trusted

TEAMnetwork

Subscriber

#2620902 13-Dec-2020 13:55

It is a hodgepodge job just wasn’t going to say it

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

Oblivian

7345 posts

Uber Geek
+1 received by user: 2117

ID Verified

#2620903 13-Dec-2020 13:59

Someone didn't ask a similar question, and decided to go and twist multiple outlets together and punch just one of them into the voice.

Rather than use patch leads to bridge.

A complete fail.

cyril7

9073 posts

Uber Geek
+1 received by user: 2499

ID Verified

Trusted

Subscriber

#2620905 13-Dec-2020 14:12

A warning, unless appropriately trained don't let your sparkie or security guy near data cabling.

Cyril

old3eyes

9158 posts

Uber Geek
+1 received by user: 1364

Subscriber

#2620906 13-Dec-2020 14:23

While it looks like a mess I suspect that the all the blue pairs on the top panel are all tied together and run to the phone outlets around the house. If you put them all on jacks you will somehow have to tie the phone jacks together as it looks like they are in a star wiring pattern.

Regards,

Old3eyes

Mighty Ape

Shop now at Mighty Ape (affiliate link).

Oblivian

7345 posts

Uber Geek
+1 received by user: 2117

ID Verified

#2620909 13-Dec-2020 14:34

The top unit, should have been one of these

Unless you have dedicated outlets for phone, and secondary for data

But hardly any do

https://www.officemax.co.nz/Technology/Computer-Accessories/Cables-Adaptors/DISTRIBUTION-MODULE-TELCO-DYNAMIX-8-PORTS-SECURITY-PORT-2467763

old3eyes

9158 posts

Uber Geek
+1 received by user: 1364

Subscriber

#2621235 14-Dec-2020 11:32

Oblivian: The top unit, should have been one of these

Unless you have dedicated outlets for phone, and secondary for data

But hardly any do

https://www.officemax.co.nz/Technology/Computer-Accessories/Cables-Adaptors/DISTRIBUTION-MODULE-TELCO-DYNAMIX-8-PORTS-SECURITY-PORT-2467763

Looks like a good unit. I've book marked it for future reference..
