3 posts

Wannabe Geek

# 138014 16-Dec-2013 23:13
Send private message

Create new topic
829 posts

Ultimate Geek
+1 received by user: 218

  # 953431 17-Dec-2013 03:48
Send private message

a bit more expansion of your question would be more help others answer your question.

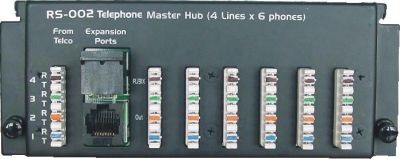

I gather you are asking about one of these

If so this is only designed to interconnect 4 phone lines to 6 outlets and is not suitable for data distribution

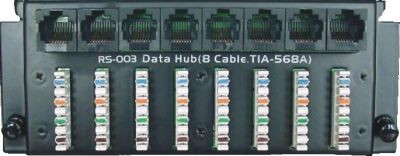

the module (of the same series) for use to connect a switch to multipule outlets is this one

3 posts

Wannabe Geek

  # 953435 17-Dec-2013 06:30
Send private message

Thank you, yes I have the 002. Installed by the sparky who said it was a data hub. I guess I need to get them to replace it. I have a Cable into the house going into a router that I want to split into 2 more area's of the home. The aim is to have wifi routers in the areas these feed into to enable wifi throughout the home.


5443 posts

Uber Geek
+1 received by user: 1895

  # 953440 17-Dec-2013 07:07
Send private message

Sounds like the sparky has pointed you in the wrong direction - that won't do data, only distribute phone(s).

As InstallerUFB noted, you need the data module instead, which lets you connect to each outlet individually in a star configuration - the phone module effectively daisy chains the outlets together.

However, your plan is sound - once the data module is sorted, you can then have a switch (or your modem if it has enough ports) at your patch panel, and connect up several APs in different areas of the building.
