kelly42

44 posts

Geek
+1 received by user: 4

ID Verified

#295314 21-Mar-2022 09:08
Send private message

I'm using Athom ESPHome smart plugs to start playing with per-device power monitoring in Home Assistant. It's working really well so far; I got 4 plugs and have put them on my fridge, freezer, washer, and dryer. I've just ordered 4 more. They are pretty bulletproof and arrived in NZ in less than 2 weeks.



I'm in the middle of a reno, with wires run but no sockets in yet, so I am planning to put Shellys everywhere I can and am working with my great electricians to sort this. I've added a few Shelly 1 units to single-gang simple light switches myself already and they're also working well - Shellys are great!



I want to wire in "permanent" power monitoring for the new locations of fridge, ovens, dishwasher. I could use more Athom smart plugs but I don't anticipate ever wanting to turn any of these devices OFF from the switches during normal use so it seems like overkill to use a smart switch, even if they are cheap and easy. I'm interested in the Shelly options: is anyone using a Shelly 1PM or Shelly EM for this type of use case?



(I'm sad that the Athom plugs won't fit on the industrial weatherproof 3-pin outlet in line with the "not-smart" 8 amp charger I use for my Leaf - that would be too easy!)





Everyone is new sometime.


Create new topic
mattenz
195 posts

Master Geek
+1 received by user: 48


  #2889448 21-Mar-2022 09:50
Send private message

If you just want power monitoring, you could consider some sort of clamp monitoring kit at (or near) the circuitboard, most of those should be on their own circuits in a new build, no?




kelly42

44 posts

Geek
+1 received by user: 4

ID Verified

  #2889451 21-Mar-2022 09:54
Send private message

That would work if each of my kitchen appliances was going to be on its own circuit, but I strongly suspect that won't happen. It WOULD, however, be useful for any really big stuff that does end up on its own circuit like the incoming heat pump system.



The Shelly EM (and 3EM, but I don't have any three-phase power AFAIK) uses a clamp. I'm interested to hear from anyone that is using one in NZ.





Everyone is new sometime.


davidcole
6099 posts

Uber Geek
+1 received by user: 1465

Trusted

  #2889572 21-Mar-2022 13:44
Send private message

I have a couple of shelly 1pms attached to lights, they report power usage.  There's also the dual version, the 2.5.









Previously known as psycik

Home Assistant: Gigabyte AMD A8 Brix, Home Assistant with Aeotech ZWave Controller, Raspberry PI, Wemos D1 Mini, Zwave, Shelly Humidity and Temperature sensors
Media:Chromecast v2, ATV4 4k, ATV4, HDHomeRun Dual
Server
Host Plex Server 3x3TB, 4x4TB using MergerFS, Samsung 850 evo 512 GB SSD, Proxmox Server with 1xW10, 2xUbuntu 22.04 LTS, Backblaze Backups, usenetprime.com fastmail.com Sharesies Trakt.TV Sharesight




SpookyAwol
639 posts

Ultimate Geek
+1 received by user: 54


  #2890145 22-Mar-2022 15:26
Send private message

The newer Plus 1/2PM Shellys would be the way to go. Even the 2.5
All monitor power very well, but you may want to look at the limits (I think 3500w + 16 amps max)  if you want to hook up to stoves / cook tops and the like
The EM series may be a better option. You are also limited to about 2.5mm wiring on most of the smaller relays unless you can jam them in

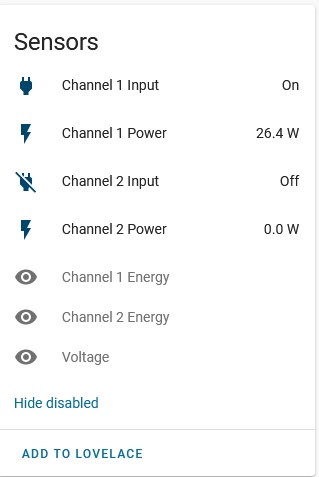

This is just a 2.5 reporting via Home assistant:
