KitChan

32 posts

Geek


#223570 6-Oct-2017 12:33
Send private message

Just got set up with Orcon VDSL today because the 1.7 Mbps upload I was getting from Slingshot wasn't enough for my needs.



I now have 1Mbps upload speed.



Click to see full size



Strangely, the testing site thinks I'm in Auckland when I'm in Wellington and I get a lower ping when connecting to an Auckland server than Wellington servers.



whatismyipaddress.com also said I was in Auckland until I clicked the allow the site to see my location prompt (which doesn't show up on speedtest)







https://www.geekzone.co.nz/forums.asp?forumid=82&topicid=141269 found this thread and it sounds like I'm too far away from the exchange. Even if I can get the speeds they're complaining about I'd be sufficiently happy



People also mention in that thread something called a master splitter should be installed for VDSL. No technician from any ISP has come and done anything at my flat since I signed up to Slingshot ADSL in 2014. Orcon said when setting me up, they would do everything remotely. So I'm under the assumption I do not have this master splitter?

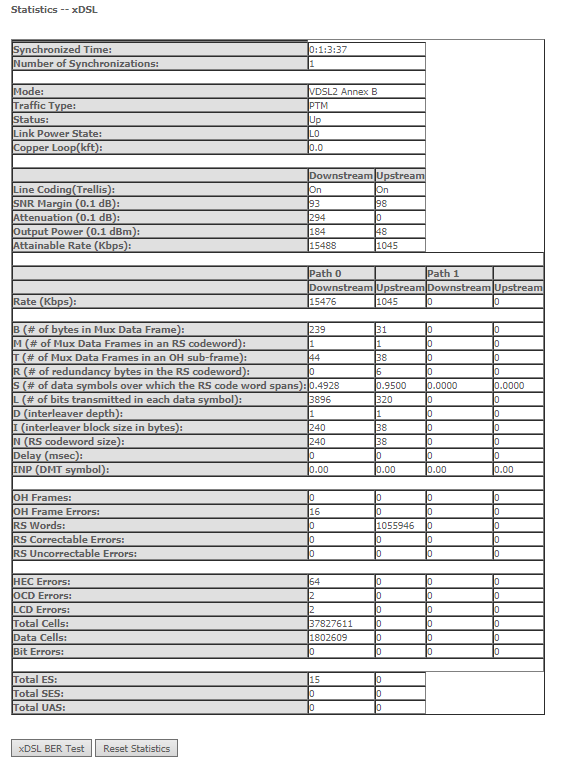

Modem statistics:



Click to see full size



Click to see full size



 Edit: Just compared my download speeds on the Battle.net app and I'm getting about the same there as I did on Slingshot if that's at all relevant


View this topic in a long page with up to 500 replies per page Create new topic
 1 | 2




Affiliate link: Looking at switching to a new electricity provider?
Spyware
2576 posts

Uber Geek

Lifetime subscriber

  #1878436 6-Oct-2017 12:53
Send private message

Too far from exchange, that simple.





Spark FibreMAX using Mikrotik CCR1009-8G-1S-1S+. UAP, UAP AC Pro, UAP AC Pro Mesh, Apple TV 4, Apple TV 4K, iPad Air 1, iPhone XR, VodaTV Gen 2. If it doesn't move then it's data cabled.


hio77
'That VDSL Cat'
12555 posts

Uber Geek

Trusted
Subscriber

  #1878445 6-Oct-2017 13:02
Send private message

Looks to me like you have gone from Annex M to VDSL on a borderline connection.





#include <std_disclaimer>



Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.










KitChan

32 posts

Geek


  #1878453 6-Oct-2017 13:13
Send private message

hio77:



Looks to me like you have gone from Annex M to VDSL on a borderline connection.



I don't know what that means


hio77
'That VDSL Cat'
12555 posts

Uber Geek

Trusted
Subscriber

  #1878454 6-Oct-2017 13:15
Send private message

KitChan:



hio77:



Looks to me like you have gone from Annex M to VDSL on a borderline connection.



I don't know what that means









Annex M is a standard unsupported on chorus gear, but is on UCLL (slingshot) gear.







It increases upstream speed at the loss of Downstream.



For a longer line, Annex M will net a faster upstream speed than VDSL. VDSL betters in 99% of cases though.





#include <std_disclaimer>



Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.




KitChan

32 posts

Geek


  #1878466 6-Oct-2017 13:22
Send private message

So I should've tried Slingshot VDSL?



When I looked at their plans they were offering VDSL at the same price as Orcon but only for new customers and Orcon was offering 3 months free







Would the master splitter if I had one help?


KitChan

32 posts

Geek


  #1878468 6-Oct-2017 13:26
Send private message

I'm also wondering how the OP in the thread I linked got significantly faster upload than me when theres only about 40 difference in attenuation


bameron
284 posts

Ultimate Geek

Trusted
Vocus

  #1878469 6-Oct-2017 13:28
Send private message

Hi there,



PM me with your account details and I'll take a look and see how far away from the exchange/cabinet you are.



Also bear in mind that DLM (Dynamic Line Management) will be in play during the first 10 or so days of your connection - which means your speeds will fluctuate a bit until the best profile is determined for your line.



Cheers,



Cam








KitChan

32 posts

Geek


  #1878470 6-Oct-2017 13:31
Send private message

Additional information if it's helpful.



My flat is quite old and wasn't even designed with a shower in mind. The phoneline jack also looks like it was installed sometime after the flat was built



The Slingshot technician who set me up in 2014 didn't do anything inside the flat


Mistenfuru
198 posts

Master Geek


  #1878479 6-Oct-2017 14:03
Send private message

Chorus no longer install in-line VDSL splitters, opting instead to save money/time and have you use a standard DSL filter.







An in-line filter will definitely increase your speeds, but probably not to a degree that would make a large enough difference for the cost involved (an electrician or ISP tech will charge approx $150 for this sort of thing, more if chorus is tasked to do it for them)







As above, definitely sounds like your property is marginal for VDSL (too far from the cabinet)


Chorusnz
388 posts

Ultimate Geek

Trusted
Chorus NZ

  #1878480 6-Oct-2017 14:04
Send private message

KitChan:







Would the master splitter if I had one help?





Hi KitChan, I see that Orcon is onto this for you :). There's some easy basic info on master filter or splitter here: http://bit.ly/2x95b5I ^Mike






Chorusnz
388 posts

Ultimate Geek

Trusted
Chorus NZ

  #1878487 6-Oct-2017 14:30
Send private message

Mistenfuru:



Chorus no longer install in-line VDSL splitters, opting instead to save money/time and have you use a standard DSL filter.













That's not quite right, in the early days of VDSL it was highly recommended to broadband providers and customers that getting a master filter installed was the best option for a smooth service experience.  Around December 2015, a band plan change from 997 to 998ADE dramatically increased stability across the network, with average downstream rates reaching around 50mbps. We still advise connection only works best for orders that are naked (e.g. no associated voice service), but all install options are still there for broadband providers and their customers to chose from .^mike


Mistenfuru
198 posts

Master Geek


  #1878491 6-Oct-2017 14:41
Send private message

Chorusnz:



Mistenfuru:



Chorus no longer install in-line VDSL splitters, opting instead to save money/time and have you use a standard DSL filter.













That's not quite right, in the early days of VDSL it was highly recommended to broadband providers and customers that getting a master filter installed was the best option for a smooth service experience.  Around December 2015, a band plan change from 997 to 998ADE dramatically increased stability across the network, with average downstream rates reaching around 50mbps. We still advise connection only works best for orders that are naked (e.g. no associated voice service), but all install options are still there for broadband providers and their customers to chose from .^mike









Too true, sorry, my wording wasn't quite right. However the $150 approx install cost still remains either way, I was trying to make the point that most providers no longer offer this as an initial option to reduce on-boarding costs.


DarkShadow
1633 posts

Uber Geek


  #1878493 6-Oct-2017 14:44
Send private message

KitChan:



So I should've tried Slingshot VDSL?





Nope, Slingshot VDSL would be the same as Orcon VDSL because they are all from from Chorus DSLAM.



Your Slingshot ADSL would've been on their own DSLAM hence they can do that special upload speed for you. Might want to switch back if you can't fix this.



When are you getting fibre?


KitChan

32 posts

Geek


  #1878526 6-Oct-2017 15:20
Send private message

DarkShadow:



KitChan:



So I should've tried Slingshot VDSL?





Nope, Slingshot VDSL would be the same as Orcon VDSL because they are all from from Chorus DSLAM.



Your Slingshot ADSL would've been on their own DSLAM hence they can do that special upload speed for you. Might want to switch back if you can't fix this.



When are you getting fibre?





The chorus website says feb 2018 and theres holes being dug up by my driveway right now so possibly sooner by the looks.







I'm considering the cost to get my wiring looked at and a master splitter installed. If I can get decent upload speed for content making and livestreaming without fibre then I see no point in waiting for fibre.


Mistenfuru
198 posts

Master Geek


  #1878535 6-Oct-2017 15:45
Send private message

Based on personal experience I'd say you're looking at an increase to a maximum of 30Mbps Down and 3Mbps Up with a Master filter installed based on what your existing stats show. (that's being quite generous too)







Definitely go to fibre when it's available for you, you'll never look back!
