pogostickconz

47 posts

Geek


#80968 6-Apr-2011 19:22
Send private message

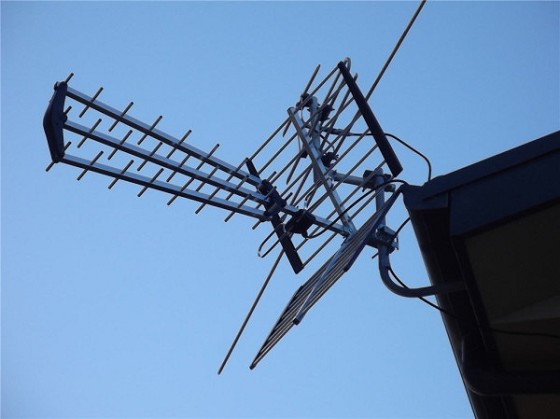

Is the mast too crowded or should it not make any difference? or is it a crap uhf aerial (its meant to be a high gain uhf aerial). both the uhf and the combination aerial (behind it) come together in a diplexer (junction box) so if anything i wld think it wld boost the uhf signal since theres uhf coming from the combo aerial as well.

thoughts?


Create new topic
JimmyLizar
321 posts

Ultimate Geek


  #456093 6-Apr-2011 20:25
Send private message

Is there supposed to be a picture of it?




.....c'mon sucker lick my battery........
binary solo...0000110000110000111...

pogostickconz

47 posts

Geek


  #456120 6-Apr-2011 21:31
Send private message

should be ... if its not showing you can see it at http://twitpic.com/4esti6







JimmyLizar
321 posts

Ultimate Geek


  #456127 6-Apr-2011 21:40
Send private message

0 for 2. that link no worky.




.....c'mon sucker lick my battery........
binary solo...0000110000110000111...

pogostickconz

47 posts

Geek


  #456128 6-Apr-2011 21:45
Send private message

hmm odd. try again :)

Jaxson
7116 posts

Uber Geek

Trusted

  #456216 7-Apr-2011 08:24
Send private message

I've had issues lately with pictures not appearing even though they've been uploaded properly too.....

From memory, that aerial is intended for areas where you might not get line of site to the transmitter and might be getting a bounced signal off other buildings etc.

Is the diplexer configured correctly, ie are the aerials going into the right inputs?

Do you have a need really for the VHF signal as well?
-Personally I'd try running the UHF only to the TV just to test.

Also, the two aerials appear to be at 90 degrees to each other, so is the combo one aligned properly? Sorry, just a bit hard to tell from the photo is all.

How many TV's is this feeding, and are there any splitters etc downstream?

pogostickconz

47 posts

Geek


  #456243 7-Apr-2011 09:25
Send private message

thanks. its feeding two tvs and im pretty sure ive connected up the diplexer correctly but yeh im thinking maybe ill remove the vhf aerial and see how that goes. i guess i cld just get one of those indoor vhf aerials if i need it (one of our tvs is not freeview enabled).

B1GGLZ
1961 posts

Uber Geek


  #456270 7-Apr-2011 10:25
Send private message

I'd ditch the multiband antenna (or relocate to a different position) and diplexer, and run the coax from the uhf direct to the TV. The multiband one seems to be pointing straight up which won't help but as previously mentioned its hard to tell from the photo. It may be a UHF over a VHF phased array? I don't think mixing that with the new UHF in a diplexer is a good idea as one antenna is already multi band. Judging from the size of the old antenna you appear to be in a good signal area in which case it looks like you have a coax wiring problem.







Jaxson
7116 posts

Uber Geek

Trusted

  #456280 7-Apr-2011 10:37
Send private message

Ok so 2 TV's right. One with freeview, one without.

And you have two aerials, one multi band VHF/UHF and one UHF only.

Run two separate coax feeds. One full run with the new UHF only aerial straight to the freeview HD capable TV. One completely independent run to the older TV off the multiband aerial.

pogostickconz

47 posts

Geek


  #456300 7-Apr-2011 11:14
Send private message

cheers for that. i was hoping a diplexer would do the job but thats cool. thanks for the advice...

Jaxson
7116 posts

Uber Geek

Trusted

  #456304 7-Apr-2011 11:18
Send private message

Some freeview HD units have been shown to not like the VHF signal component. Magic TV and the Vantage unit are examples.

If you want it to work reliably, I'd seriously start with that separation approach as above.

This would remove the splitter you probably have as well.

pogostickconz

47 posts

Geek


  #464402 2-May-2011 10:41
Send private message

im not sure if this will help anyone but my reception strangely improved when i removed the aerial cable between the tv & the freeview box - so now i just have the hdmi cable connecting the tv with the freeview box. i cant see how it would affect the signal strength but worth a try if youre having problems ...

Deev8
481 posts

Ultimate Geek


  #464515 2-May-2011 15:31
Send private message

pogostickconz: my reception strangely improved when i removed the aerial cable between the tv & the freeview box - so now i just have the hdmi cable connecting the tv with the freeview box. i cant see how it would affect the signal strength ...

It could affect the signal that the Freeview box "sees" as when it's feeding the TV as well the signal is effectively split two ways - one for the Freeview tuner and one for the TV. Some, but certainly not all, boxes have an amplifier built-in to try to compensate for that.
