Remove old phone junction box

Forums › Home Workshop DIY › Remove old phone junction box

SRP

13 posts

Geek

#295946 7-May-2022 19:05

Hello

I have an old telephone junction box on the wall of my property that served 3 units. It is defunct because all are now on fibre. Does anyone know the legal issues around having this box removed and the lines cut? Chorus referred the issue to their contractor, Downers, who said they would disconnect the wires at the street, then the box could be removed (cost to me $1200!!!!) . this protects the existing lines on the street (apparently) from impacts from wrongly disconnected lines at the house.

I am sure builders are presented with this issue when these old phone lines/junctions are in the way of new work. I would would appreciate any informed information or experience. The box is about 500 mm x 400 mm.

1 | 2

Hammered
8740 posts

Uber Geek
+1 received by user: 2391

Moderator

ID Verified

Trusted

Lifetime subscriber

#2911493 8-May-2022 08:45

If that is still connected to an active cable out on the street, then yes Chorus/the contractor will have work to do before you can remove it. Builders presented with the same issue will have to go through the same process.

People often mistake me for an adult because of my age.

Keep calm, and carry on posting.

Referral Links: Sharesies -

Are you happy with what you get from Geekzone? If so, please consider supporting us by subscribing.

No matter where you go, there you are.

richms

29098 posts

Uber Geek
+1 received by user: 10208

Trusted

Lifetime subscriber

#2911502 8-May-2022 09:34

Removal of these is why they need to hurry up and totally abandon the copper network so there is no worry about some luddite still using a service which may be present on other junctions too.

Richard rich.ms

Bung

6733 posts

Uber Geek
+1 received by user: 2926

Subscriber

#2911503 8-May-2022 09:49

What other junctions? Last mile copper isn't multiplexed.

I could walk around the block here and see several copper drop leads coiled up around power poles. Some demolished houses, some wind damage but line unused.

richms

29098 posts

Uber Geek
+1 received by user: 10208

Trusted

Lifetime subscriber

#2911504 8-May-2022 09:54

Bung: What other junctions? Last mile copper isn't multiplexed.

I could walk around the block here and see several copper drop leads coiled up around power poles. Some demolished houses, some wind damage but line unused.

Multiples are a thing on cables to blocks and down driveways, they don't have all those pairs all the way back to the cabinet on their own. The output cables from those will be a direct run to the customer but the input ones may have services on it presented at other joins in the street or on other buildings.

I had issues with one of my copper connecitons they refused to fix because it and half the things up the pole had multiples going somewhere else and they were using all the good ones for the other houses. Now its all abandoned but the cables are still there because I guess there is no requirement for them to remove them.

Richard rich.ms

Bung

6733 posts

Uber Geek
+1 received by user: 2926

Subscriber

#2911508 8-May-2022 10:36

I've understood cable multiples as being the same pair appearing in several junction boxes but only able to be used at one of them. Something that isn't helpful for DSL as the multiples are stubs the same as additional jackpoints.

gregmcc

2173 posts

Uber Geek
+1 received by user: 836

ID Verified

Trusted

Lifetime subscriber

#2911512 8-May-2022 11:02

You could politely ask Chorus if they have an easement for their (now unused) copper lines on your property.

Maybe something along the lines of....you can keep your stuff on my property but there will be charges, otherwise they can arrange for removal at Chorus cost and that will be the end of the matter.

Set a time frame for them to remove their gear, say 30 days and after that date charges will be due.

If Chorus don't want to claim ownership of this equipment, then you should and then you remove it yourself.

Quic Broadband

Move to New Zealand's best fibre broadband service (affiliate link). Free setup code: R587125ERQ6VE. Note that to use Quic Broadband you must be comfortable with configuring your own router.

cyril7

9073 posts

Uber Geek
+1 received by user: 2499

ID Verified

Trusted

Subscriber

#2911517 8-May-2022 11:35

Bung: What other junctions? Last mile copper isn't multiplexed.

I could walk around the block here and see several copper drop leads coiled up around power poles. Some demolished houses, some wind damage but line unused.

It's possible, remote at that, that the leadin cable may carry 25 or 50 pairs, but more likely 10 or less, but some of those pairs may be jumpered to onward properties. As I say very unlikely, but possible, a quick inspection would confirm.

I agree with Greg's plan above

Cyril

nztim

4012 posts

Uber Geek
+1 received by user: 2710

ID Verified

Trusted

TEAMnetwork

Subscriber

#2911520 8-May-2022 12:16

That's a 25 pair lead-in, just get Chorus to check that there no in use onward pairs jumpered pairs and ask them to remove it

EDIT: $1200 to have it removed, divided by 3 dwellings is not unresonable

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

Bung

6733 posts

Uber Geek
+1 received by user: 2926

Subscriber

#2911575 8-May-2022 13:08

nztim:
EDIT: $1200 to have it removed, divided by 3 dwellings is not unresonable

Not when they probably have to fly someone in from the Philippines to do it 😀

Jase2985

13730 posts

Uber Geek
+1 received by user: 6202

ID Verified

Lifetime subscriber

#2911583 8-May-2022 14:26

nztim:

That's a 25 pair lead-in, just get Chorus to check that there no in use onward pairs jumpered pairs and ask them to remove it

EDIT: $1200 to have it removed, divided by 3 dwellings is not unresonable

yea it is, should be removed as part of the free fiber install unless you specifically requested it to remain.

SRP

13 posts

Geek

#2911787 9-May-2022 11:01

Stu: If that is still connected to an active cable out on the street, then yes Chorus/the contractor will have work to do before you can remove it. Builders presented with the same issue will have to go through the same process.

Why is it an issue, or an issue for me, if there is an active cable out on the street?

Lego

Shop now for Lego sets and other gifts (affiliate link).

SRP

13 posts

Geek

#2911789 9-May-2022 11:08

gregmcc:

You could politely ask Chorus if they have an easement for their (now unused) copper lines on your property.

Maybe something along the lines of....you can keep your stuff on my property but there will be charges, otherwise they can arrange for removal at Chorus cost and that will be the end of the matter.

Set a time frame for them to remove their gear, say 30 days and after that date charges will be due.

If Chorus don't want to claim ownership of this equipment, then you should and then you remove it yourself.

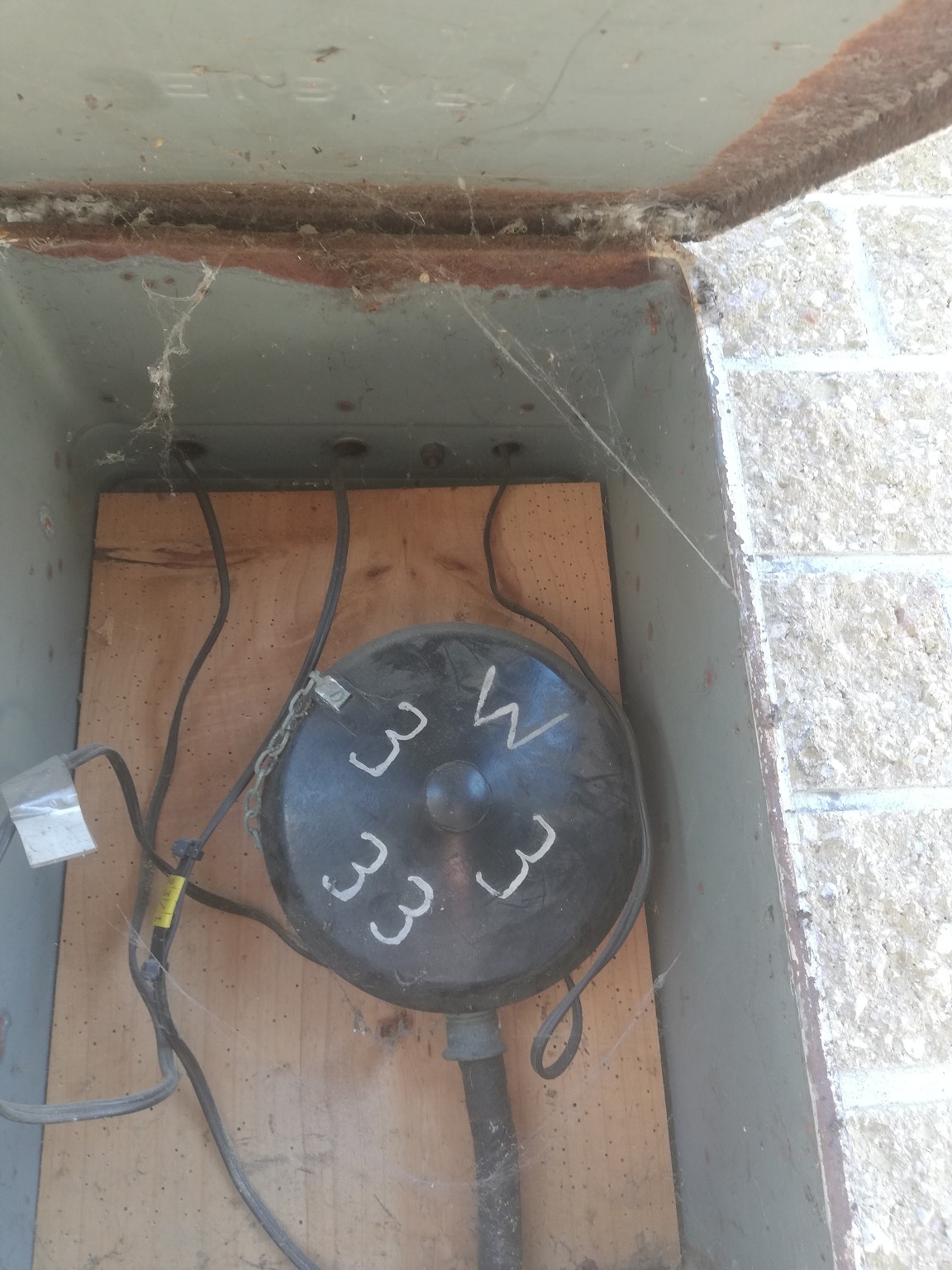

Yes I have discovered the part about Easements on their website. i will ask them if they have an easement for the pictured box on my unit, but I dont expect I will get a reply, as per usual with them. I should be able to access this information myself, but am not sure how. Even if they have no easement, taking to the said box with cutters and hammers is a bit dodgy.

xpd

Geek of Coastguard
14115 posts

Uber Geek
+1 received by user: 4574

Retired Mod

ID Verified

Trusted

Lifetime subscriber

#2911790 9-May-2022 11:13

SRP:

Stu: If that is still connected to an active cable out on the street, then yes Chorus/the contractor will have work to do before you can remove it. Builders presented with the same issue will have to go through the same process.

Why is it an issue, or an issue for me, if there is an active cable out on the street?

Can you 100% guarantee that box is just for the 3 dwellings - could be a run off somewhere over a fence etc...... unlikely, but hey, back in the day when these things were put in, all sorts of fun was probably abound ;)

My view on it would be, is it causing you problems or located somewhere viewable and makes it look ugly ? If not, just leave it. Not costing you anything to do so.

XPD / Gavin

LinkTree

SRP

13 posts

Geek

#2911791 9-May-2022 11:15

nztim:

That's a 25 pair lead-in, just get Chorus to check that there no in use onward pairs jumpered pairs and ask them to remove it

EDIT: $1200 to have it removed, divided by 3 dwellings is not unresonable

Who said the other residents will want to pay. They have no interest in doing so? My goal is to have the thing removed from my wall free of charge, because I am prepared to do it as its on my property. I am not entirely sure the work Downers propose to do is on my property.

SRP

13 posts

Geek

#2911801 9-May-2022 11:40

SRP:

nztim:

That's a 25 pair lead-in, just get Chorus to check that there no in use onward pairs jumpered pairs and ask them to remove it

EDIT: $1200 to have it removed, divided by 3 dwellings is not unresonable

Who said the other residents will want to pay. They have no interest in doing so? My goal is to have the thing removed from my wall free of charge, because I am prepared to do it as its on my property. I am not entirely sure the work Downers propose to do is on my property.

:i need the box removed so I can do important renovation work. Otherwise I wouldnt be bothering.
