Geekzone: technology news, blogs, forums
Guest
Welcome Guest.
You haven't logged in yet. If you don't have an account you can register now.


kryptonjohn

2523 posts

Uber Geek

Lifetime subscriber

#212733 10-Apr-2017 11:02
Send private message

Hi - I'd like to distribute sky HD decoder output through existing RF cabling in my house - is there such a thing as the above in NZ, compatible with our digital TVs?



Thanks



JohnO






View this topic in a long page with up to 500 replies per page Create new topic
 1 | 2 | 3 | 4 | 5
sbiddle
30853 posts

Uber Geek

Retired Mod
Trusted
Biddle Corp
Lifetime subscriber

  #1760070 10-Apr-2017 11:17
Send private message

Yes. You want a DBT-T encoder with HDMI input that supports H.264.



Depending on quality and where you source it from this will range from $250ish - $1000ish. You will also need something such as an HD Fury for US$99 (cheaper options available but these are about the best) to strip the HDCP signal so it can be fed into the encoder. If you're already using the HDMI out from the Sky box you'll also need a HDMI splitter which once again depending on the type will set you back another $50 - $100



Matchmaster sell locally if you don't want to import one. The 14MM-DM06 is a good unit.




















kryptonjohn

2523 posts

Uber Geek

Lifetime subscriber

  #1760129 10-Apr-2017 11:43
Send private message

Cool thanks for the reply...



Matchmaster unit looks good. Shame they didn't put a hdmi loop through on it. $650 trade price though - ouch.



Cheers



John










kryptonjohn

2523 posts

Uber Geek

Lifetime subscriber

  #1760132 10-Apr-2017 11:46
Send private message

Feeling a bit silly now thinking I needed a NZ specific one... that would really just add the program guide which is a bit nonsensical for a one channel encoder.



I found only one good hit googling for HD UDF digital modulator but when I search for H.264 dvb-t encoder I find a lot more!



Cheers



John




kryptonjohn

2523 posts

Uber Geek

Lifetime subscriber

  #1760134 10-Apr-2017 11:53
Send private message

hd-fury... wow, how can they get away with removing HDCP - is that legal?


Rikkitic
Awrrr
18659 posts

Uber Geek

Lifetime subscriber

  #1760154 10-Apr-2017 12:32
Send private message

Must be. Every Chinese device with HDMI output has been doing it for years.









Plesse igmore amd axxept applogies in adbance fir anu typos







richms
28169 posts

Uber Geek

Trusted
Lifetime subscriber

  #1760166 10-Apr-2017 12:54
Send private message

All NZ freeview is mpeg4, so you should be good to go.



But if its customized for AU's messed up channels with 7MHz width, it may not work on a NZ tv alongside freeview which is the normal 8MHz for a PAL bandplan.



That looks to be the same unit as several aliexpress sellers sell so may be cheaper there.



If you dont want to use the cables for broadcast TV as well then look at HDMI to 3GSDI or one of the other HDMI over coax solutions, may work out cheaper.





Richard rich.ms





Free kids accounts - trade shares and funds (NZ, US) with Sharesies (affiliate link).
kryptonjohn

2523 posts

Uber Geek

Lifetime subscriber

  #1760167 10-Apr-2017 12:56
Send private message

Good idea - thanks Rich...


Dunnersfella
4086 posts

Uber Geek


  #1760283 10-Apr-2017 15:08
Send private message

Things to watch...



IR compatibility with the MySky box...




Slow IR changes for channel skipping.


illicit
553 posts

Ultimate Geek


  #1762068 12-Apr-2017 11:39
Send private message

I have an HDMI to DVB-T modulator here im testing at the moment.







Works direct to MySky box (no HDCP warning thus far)



Approx 0.8sec delay from source on modulated output so ok for TV but no good for a game console



Approx $500ea RRP - best sub $1000 unit ive found so far


kryptonjohn

2523 posts

Uber Geek

Lifetime subscriber

  #1762071 12-Apr-2017 11:47
Send private message

Hi - thanks. Can you post the details and where you got it from?



I'm thinking of getting a cheapo Chinese one from aliexpress:



https://www.aliexpress.com/item/Binmer-Hot-Selling-HDMI-TO-DVB-T-Modulator-Convert-HDMI-signal-to-HD-digital-TV-Gift/32784966485.html



It does lack a couple of things that would be handy - HDMI loop-through and antenna-loop through. But those can be worked around.



The supplier promises it will work in NZ with H.264 MPEG-4. The good thing with aliexpress is their escrow - if it doesn't work as promised I just tell aliexpress and I get a refund.










richms
28169 posts

Uber Geek

Trusted
Lifetime subscriber

  #1762142 12-Apr-2017 12:27
Send private message

I think they all do LCNs now, older ones didnt and meant that you would find some TVs would not give the source a channel number or it would get something stupid like 1000 as its channel.





Richard rich.ms

fe31nz
1228 posts

Uber Geek


  #1763491 12-Apr-2017 22:50
Send private message

illicit:



I have an HDMI to DVB-T modulator here im testing at the moment.







Works direct to MySky box (no HDCP warning thus far)



Approx 0.8sec delay from source on modulated output so ok for TV but no good for a game console



Approx $500ea RRP - best sub $1000 unit ive found so far





As there are many non-HDCP capable TVs in NZ bought before HDCP existed, all Sky boxes will not do HDCP unless the box they are connected to does it.  If the Sky box tries HDCP signalling and gets no reply, it just turns off HDCP.  I asked Sky about this when they wanted to upgrade my decoder to the new version as my TV is from before HDCP, and they confirmed that it works like that.


Maxcat
273 posts

Ultimate Geek


  #1763534 13-Apr-2017 07:28
Send private message

If it is a single room extra to your main room use a Slingbox. It is HD, remote control capable and can also be view on mobile devices.



I did this as do many others with Sky around the house.



https://community.slingbox.com/thread/29015





Or buy this for $1



http://www.trademe.co.nz/electronics-photography/tvs/other/auction-1301763506.htm








kryptonjohn

2523 posts

Uber Geek

Lifetime subscriber

  #1763545 13-Apr-2017 07:49
Send private message

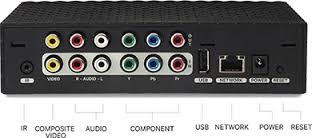

Interesting - will take a look. So it will do HD over the component video? And the MySky decoder can be setup so the HDMI goes to the main TV and the SCART component video goes to the slingbox?



Yeah, but the Sky supplied modulator is SD.
