VDSL dropping regularly (DSL link, no internet, lots of CRCs)

Forums › Spark New Zealand (including Skinny and BigPipe) › VDSL dropping regularly (DSL link, no internet, lots of CRCs)

1 | 2 | 3

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1765331 17-Apr-2017 15:32

checking our the specturm, it's looking much cleaner.

Still not so keen on the almost sinewave like motion on the connection but think @coffeebaron has outdone himself again.

66/8 on 8b is not bad! also the drop in attenuation is great!

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

calep

15 posts

Geek

#1765337 17-Apr-2017 16:02

Coffeebaron - thanks for doing a neat job of putting in the master filter, very professional. The connection stayed live on the Huawei router over the weekend (we were away so I wanted to check it didn't hang straightaway!)

I have found a beta firmware from Asus for my other router so will keep an eye on how that goes, unfortunately the Huawei seemed to drop randomly (undiagnosed, perhaps due to rogue phone/filter issues), and it had issues issuing internal IPs via powerline adaptors...

To sum up, since I joined, I've gone from 53mb (8.8dB / 2.0 dB attenuation):

to 62mb (Hio tinkering + changing to another jack):

to 66mb (changing to new master filtered jack):

Thanks to both Hio and Coffeebaron... Hopefully the guys at the Asus forums are as helpful!

Cheers

Charlie

coffeebaron

6235 posts

Uber Geek

Trusted

Lifetime subscriber

#1765343 17-Apr-2017 16:15

hio77:

can't that ETP simply be replaced with a... reasonable one?

No, its a multi line feeder to the units, so would need Chorus to install a more modern multi dwelling ETP. NB: picture was of course before I finished securing cables and filter etc. :)

Rural IT and Broadband support.

Broadband troubleshooting and master filter installs.
Starlink installer - one month free: https://www.starlink.com/?referral=RC-32845-88860-71
Wi-Fi and networking
Cel-Fi supply and installer - boost your mobile phone coverage legally

Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1765350 17-Apr-2017 16:32

Feel like your Asus? modem there is slightly miss reporting attenuation FYI.

once ddDLM hits you, i'll be very interested to see how you line goes!

i suspect jumping to a good 80/30 would not be impossible..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

calep

15 posts

Geek

#1765373 17-Apr-2017 17:27

Thanks Hio. It's a beta firmware so perhaps the stat's aren't accurate!

Is there a max on the Spark VDSL package - for some reason I had 70 as a maximum...

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1765382 17-Apr-2017 17:44

calep:

Thanks Hio. It's a beta firmware so perhaps the stat's aren't accurate!

Is there a max on the Spark VDSL package - for some reason I had 70 as a maximum...

Max depends on linecard, Broadcom linecards will do 100/50.. Ikanos will do 70/30.

For reference double checking graphs, your on a broadcom linecard.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

coffeebaron

6235 posts

Uber Geek

Trusted

Lifetime subscriber

#1765386 17-Apr-2017 18:14

Quite close to cabinet, so certainly potential for a bit more speed once DLM & ddDLM have some time to adjust.

Rural IT and Broadband support.

Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com

Quic Broadband

Move to New Zealand's best fibre broadband service (affiliate link). Free setup code: R587125ERQ6VE. Note that to use Quic Broadband you must be comfortable with configuring your own router.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1765387 17-Apr-2017 18:17

coffeebaron: Quite close to cabinet, so certainly potential for a bit more speed once DLM & ddDLM have some time to adjust.

Reason i put it down to ddDLM is attenuation wise its not quite 17a. But should be..

With ddDLM doing 17a via diagnostics this would be a perfect candidate

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

BarTender

3606 posts

Uber Geek

ID Verified

Trusted

Lifetime subscriber

#1766521 18-Apr-2017 09:06

coffeebaron:

hio77: can't that ETP simply be replaced with a... reasonable one?

No, its a multi line feeder to the units, so would need Chorus to install a more modern multi dwelling ETP. NB: picture was of course before I finished securing cables and filter etc. :)

A likely story. I am sure you just zip-tied the master filter onto one of the terminals and then left the ETP slightly open so a bit of water can get in.

Toteslegit bro.. toteslegit.

coffeebaron

6235 posts

Uber Geek

Trusted

Lifetime subscriber

#1766658 18-Apr-2017 11:54

Yes, sorry I left the picture out with the filter Blu-Tacked to the wall :)

Rural IT and Broadband support.

Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1767135 19-Apr-2017 10:07

Line test results are in, looking very clean indeed! next to no errors there too :)

I must complain, there is a bit of variance around bin 594, guess you might have to go back out @coffeebaron :P

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

coffeebaron

6235 posts

Uber Geek

Trusted

Lifetime subscriber

#1767215 19-Apr-2017 11:31

I must have not turned that screw that extra 1/8th turn, sorry about that :)

Rural IT and Broadband support.

Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com

calep

15 posts

Geek

#1772265 29-Apr-2017 07:38

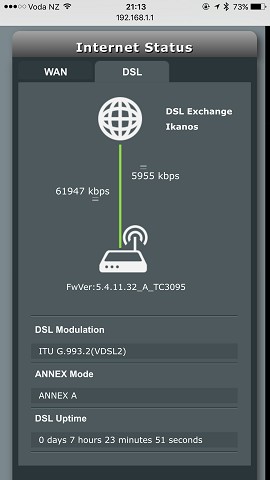

After having solid internet since the filter install, it dropped again this morning (same issue with DSL up, but can't keep a ppp session going). Going to pursue the modem firmware side of things now...

On the plus side, we're up to 70/28 speed wise. @Hio77 you mentioned that I was on a broadcom card and should be capable of 100 downstream - does this mean it should keep adjusting upwards? It shows a max speed of 111mb on the router.

calep

15 posts

Geek

#1772272 29-Apr-2017 08:04

Hio - one more question - there's a router setting for VDSL Profile (30a/17a/12a/8a) - what should it be set to? God knows if it has any impact - it appears to get this automatically, it's moved from 8b to 17a as you can see on the logs (was this your doing?)

I did some more digging online, and I've reset the lcp echo interval to 60 (I believe it's 0 by default) - it seems to be maintaining the PPP session, but who knows for how long.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1772312 29-Apr-2017 09:37

You appear to be on a ikanos. I may have been mistaken.

Put simply your maxing the 70/30 limits now

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.
