Can I really get VDSL? Vodafone says Yes (and new router?)

I’m currently on Vodafone's ADSL2 plan and my vodafone station 2 is starting to drop ethernet, requiring to be reboot or reset.

I have a wired network (located in the garage) so I’m looking at replacing the vodafone station 2 with:

Draytek Vigor 130 modem (I have)

Ubiquiti Networks EdgeRouter ER‑X $114.95 or

Ubiquiti EdgeRouter Lite $219.95

Ubiquiti Networks UniFI AP AC LR

I get the following speeds with the Draytek Vigor 130

(Setup: master filter - Signet ST2206 - patch cable - 20m Cat5e - patch cable - Draytek - desktop)

Mode ADSL2+ Annex

State SHOWTIME

Up Speed 996000

Down Speed 12392000

SNR Margin 6

Loop Att. 31

Ookla speed test

thecatsgoolies

414 posts

Ultimate Geek
+1 received by user: 228

Trusted

#1604933 5-Aug-2016 11:29

What is the model number of Vodafone station2 ?

Blanch

254 posts

Ultimate Geek
+1 received by user: 19

#1604936 5-Aug-2016 11:42

thecatsgoolies: What is the model number of Vodafone station2 ?

I will need to check when I get home, but it looks like a shg1500 (google images)

thecatsgoolies

414 posts

Ultimate Geek
+1 received by user: 228

Trusted

#1604957 5-Aug-2016 12:11

You need a HG659 for VDSL support, The one you have supports ADSL2+

sbiddle

30853 posts

Uber Geek
+1 received by user: 9996

Retired Mod

Trusted

Biddle Corp

Lifetime subscriber

#1604959 5-Aug-2016 12:14

I wouldn't expect to get VDSL2 performance that'll be significantly different to your current ADSL2+ with such high attenuation.

Blanch

254 posts

Ultimate Geek
+1 received by user: 19

#1604973 5-Aug-2016 12:35

sbiddle:

I wouldn't expect to get VDSL2 performance that'll be significantly different to your current ADSL2+ with such high attenuation.

Thanks sbiddle, I thought that might be the case. What attenuation do you need to make the change? (Chorus has arrow pointing to "potential connection" VDSL and fibre is coming 2020?.

Blanch

254 posts

Ultimate Geek
+1 received by user: 19

#1604974 5-Aug-2016 12:39

thecatsgoolies: You need a HG659 for VDSL support, The one you have supports ADSL2+

Thanks thecatsgoolies, yep the Station 2 is on it way out and I'm replacing it with the Draytek. I just need a new router and access point now.

New World

Shop on-line at New World now for your groceries (affiliate link).

Blanch

254 posts

Ultimate Geek
+1 received by user: 19

#1605704 6-Aug-2016 23:25

I move the Draytek Vigor 130 into the patch panel to see if removing 20m of cat5e between the master filter and the modem made any difference to the attenuation.

(Setup: master filter - Signet ST2206 - patch cable - Draytek - 20m Cat5e - patch cable - desktop)

Mode ADSL2+ Annex

State SHOWTIME

Up Speed 1000000

Down Speed 12440000

SNR Margin 6

Loop Att. 31

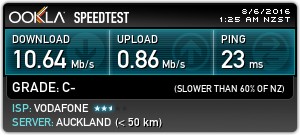

Ookla speed test

I don't think the high attenuation is something I can Fix?

RunningMan

9184 posts

Uber Geek
+1 received by user: 4833

#1605728 7-Aug-2016 07:47

Blanch:

I don't think the high attenuation is something I can Fix?

As long as your internal wiring is sorted, attenuation is essentially a product of the length of the line. The only way you will lower it is to move house.

Sideface

9649 posts

Uber Geek
+1 received by user: 15596

Trusted

Lifetime subscriber

#1605729 7-Aug-2016 07:54

Blanch:

<snip>

I don't think the high attenuation is something I can Fix?

Afraid so.

The problem appears to be outside your house.

A loop attenuation of 31dB (with a master filter and good quality hardware) suggests that you have a line length greater than 2km.

Sideface

Blanch

254 posts

Ultimate Geek
+1 received by user: 19

#1605744 7-Aug-2016 09:46

Thanks, I live 1.7 driving km from the main Titirangi exchange, I was being hopeful with the "potential connection VDSL" on the Chorus web site. I will try using the Signet ST2206 test point and bypass the master filter when the family go off line tonight.

Sideface

9649 posts

Uber Geek
+1 received by user: 15596

Trusted

Lifetime subscriber

#1605755 7-Aug-2016 10:25

FYI

I have a line length of 900m with a downstream line attenuation of 19dB.

Two years ago (before the VDSL band profile was changed from 997 to 998) I was officially in the VDSL zone, and so I tried VDSL.

The experiment was not a success.

Using a Draytek Vigor 130 modem and Ubiquiti EdgeRouter Lite with a new VDSL master filter and a dedicated Cat6 lead to new J45 socket, I only got VDSL speeds of about 4/12 Mbps.

I was able to go back to ADSL without penalty.

Even with the new 998 bandplan, I don't fancy your chances with a line length of 2km plus.

Sideface

Dell

Shop now for Dell laptops and other devices (affiliate link).

Blanch

254 posts

Ultimate Geek
+1 received by user: 19

#1606578 8-Aug-2016 20:39

Sideface:

FYI

I have a line length of 900m with a downstream line attenuation of 19dB.

Two years ago (before the VDSL band profile was changed from 997 to 998) I was officially in the VDSL zone, and so I tried VDSL.

The experiment was not a success.

Using a Draytek Vigor 130 modem and Ubiquiti EdgeRouter Lite with a new VDSL master filter and a dedicated Cat6 lead to new J45 socket, I only got VDSL speeds of about 4/12 Mbps.

I was able to go back to ADSL without penalty.

Even with the new 998 bandplan, I don't fancy your chances with a line length of 2km plus.

Thanks, Sideface

With the speeds I'm getting and fibre not being available until 2020, should I save $100 and buy the Ubiquiti EdgeRouter ER‑X $114.95 instead of the Ubiquiti EdgeRouter Lite $219.95

Using the test point bypassing the master filter I got the following.

Mode ADSL2+ Annex

State SHOWTIME

Up Speed 996000

Down Speed 12208000

SNR Margin 5

Loop Att. 30

ludez

903 posts

Ultimate Geek
+1 received by user: 54
Inactive user

#1606589 8-Aug-2016 20:41

I had the same issues as you so decided to go to vdsl, i had the constant connection drops which never got resolved.

Gone to vdsl and got 3mbs in speed boost

Sideface

9649 posts

Uber Geek
+1 received by user: 15596

Trusted

Lifetime subscriber

#1606618 8-Aug-2016 21:20

Blanch:

<snip>

Thanks, Sideface

With the speeds I'm getting and fibre not being available until 2020, should I save $100 and buy the Ubiquiti EdgeRouter ER‑X $114.95 instead of the Ubiquiti EdgeRouter Lite $219.95

Using the test point bypassing the master filter I got the following.

<snip>

Loop Att. 30

You have confirmed your high loop attenuation. Forget VDSL.

If you buy a Ubiquiti EdgeRouter Lite, you will need a switch as well (I already had a good switch).

The advantage of the Ubiquiti EdgeRouter ER‑X (apart from the lower price) is that it has 5 ports, so you may not need a switch (depending upon your home setup).

Sideface
