timmmay

20900 posts

Uber Geek
+1 received by user: 5381

Trusted
Lifetime subscriber

#320225 20-Jul-2025 09:11
Send private message

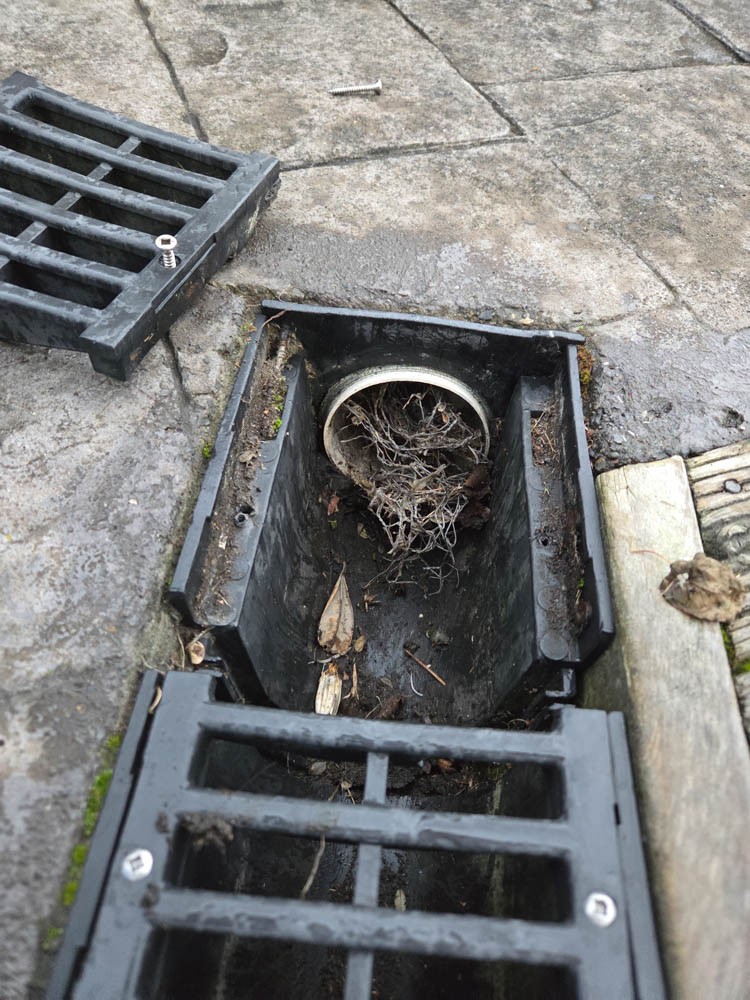

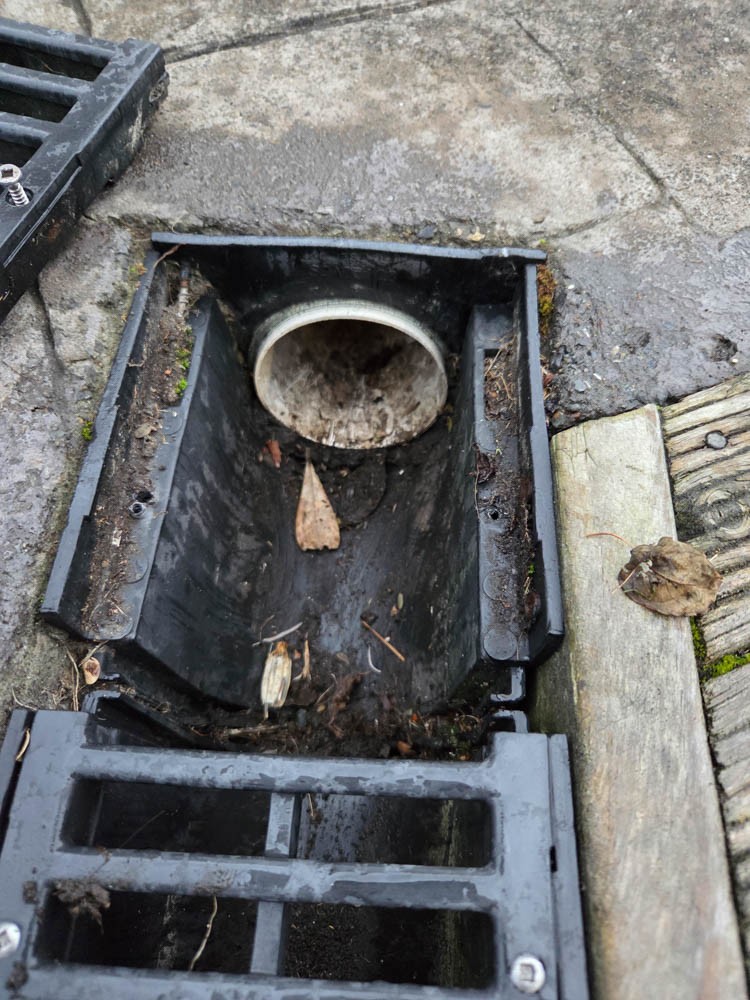

This is the end of the drain that runs alongside our driveway. The white pipe leads to a sump underground, then out down a bank out the back of our house. We get lots of leaves from neighbors trees.



Does anyone know of a better way to stop leaves and such going down this drainpipe? My current method is some wire mesh stuffed into the drain pipe, which has worked ok for a few years but gets blocked fairly easily. There's no space at the bottom to fit anything around the pipe, it's flush with the black pipe.










View this topic in a long page with up to 500 replies per page Create new topic
 1 | 2
jonherries
1442 posts

Uber Geek
+1 received by user: 327

Trusted
Subscriber

  #3395629 20-Jul-2025 11:23
Send private message

You might need to remove that and put in a drain/pit box?



They have a leaf filters for them - but not exactly sure how that might work. In general it works well for me as wet leaves tend to sink and the outlet is near the top, ymmv.







Jon




insane
3325 posts

Uber Geek
+1 received by user: 1006

ID Verified
Trusted
2degrees
Subscriber

  #3395686 20-Jul-2025 13:18
Send private message

I've got a channel drain with a special honeycomb anti leaf pattern - works very well.


eracode
Smpl Mnmlst
9379 posts

Uber Geek
+1 received by user: 6265

ID Verified
Trusted
Lifetime subscriber

  #3395689 20-Jul-2025 13:32
Send private message

How about fixing some plastic mesh to the underside of the gratings. That would stop leaves getting down. You could then hose or broom them away or suck them up with a garden vac. Some might just dry and blow away.





Sometimes I just sit and think. Other times I just sit.




Bung
6748 posts

Uber Geek
+1 received by user: 2932

Subscriber

  #3395690 20-Jul-2025 13:34
Send private message

jonherries:



You might need to remove that and put in a drain/pit box?



They have a leaf filters for them - but not exactly sure how that might work. In general it works well for me as wet leaves tend to sink and the outlet is near the top, ymmv.







Jon





AFAIK most councils require a pit box to trap leaves and silt before slot drains go into stormwater.


eracode
Smpl Mnmlst
9379 posts

Uber Geek
+1 received by user: 6265

ID Verified
Trusted
Lifetime subscriber

  #3395692 20-Jul-2025 13:47
Send private message

Do you know the brand of your drain channel?





Sometimes I just sit and think. Other times I just sit.


timmmay

20900 posts

Uber Geek
+1 received by user: 5381

Trusted
Lifetime subscriber

  #3395696 20-Jul-2025 14:15
Send private message

Unfortunately we don't know the brand, came from Bunnings but it's no longer sold. Significant changes would require replacement, and it's about 15m long so would be somewhat expensive.



It doesn't go to council stormwater, it goes to an underground sump box thingy, then out down a bank, which eventually drains near a motorway. The drain predates the motorway, probably 70 years old. The drain channel is 15 years old or so.



eracode:



How about fixing some plastic mesh to the underside of the gratings. That would stop leaves getting down. You could then hose or broom them away or suck them up with a garden vac. Some might just dry and blow away.





Interesting idea. I'll think about that one, thanks. It'd be a bunch of work because it's so long.










Shop now at Mighty Ape (affiliate link).
insane
3325 posts

Uber Geek
+1 received by user: 1006

ID Verified
Trusted
2degrees
Subscriber

  #3395697 20-Jul-2025 14:22
Send private message

Mine is Ultradrain, and I see they come in different profiles/widths. Here's a picture with the honeycomb option. Basically with the holes being round the leaves can't slide into them.







https://www.mitre10.co.nz/shop/ultra-drain-udp75-2x-piece-pack-4m/p/377432?srsltid=AfmBOor0R081HEksmGRB4tFrOrDSdhN0lsFpZFbibngU7RaFEIcktmGP







Doesn't appear compatible as these have a thin groove that the grate seats in, but it's possible other brands have alternate grate patterns too.


steve2222
510 posts

Ultimate Geek
+1 received by user: 47


  #3395710 20-Jul-2025 17:40
Send private message

eracode:



How about fixing some plastic mesh to the underside of the gratings. That would stop leaves getting down. You could then hose or broom them away or suck them up with a garden vac. Some might just dry and blow away.





^ this with the plastic mesh to the underside being this from M10 - 2 rolls covers your 15m: Gutter Guard






SepticSceptic
2267 posts

Uber Geek
+1 received by user: 793

Trusted

  #3395737 20-Jul-2025 23:25
Send private message

I used 3mm stainless steel cable ties to affix mesh under the grate.



Plastic ties perished in a few months


sidefx
3777 posts

Uber Geek
+1 received by user: 1298

Trusted

  #3395743 21-Jul-2025 07:33
Send private message

timmmay:







Interesting idea. I'll think about that one, thanks. It'd be a bunch of work because it's so long.













Maybe try some of those gutter brissles in it? I find just a couple in gutters near downpipes at least traps most of the the leaves and stops them going down the pipes, making it easier to clean out. Should work similar on this case and be easier than attaching grates etc?





"I was born not knowing and have had only a little time to change that here and there."         | Octopus Energy | Sharesies
              - Richard Feynman


timmmay

20900 posts

Uber Geek
+1 received by user: 5381

Trusted
Lifetime subscriber

  #3395745 21-Jul-2025 07:39
Send private message

SepticSceptic:



I used 3mm stainless steel cable ties to affix mesh under the grate.



Plastic ties perished in a few months





Interesting, thanks.






Stream your favourite shows now on Apple TV (affiliate link).
timmmay

20900 posts

Uber Geek
+1 received by user: 5381

Trusted
Lifetime subscriber

  #3395746 21-Jul-2025 07:41
Send private message

sidefx:



Maybe try some of those gutter brissles in it? I find just a couple in gutters near downpipes at least traps most of the the leaves and stops them going down the pipes, making it easier to clean out. Should work similar on this case and be easier than attaching grates etc?





That might be a simple and effective way to reduce the leaves that make it that far - good idea, thanks. If I put it near the white pipe it should tangle the leaves up and stop them going down the drain.



I don't much like those for up on rooves as they gather dirt as well and things grow in them over time, but I have to clean this out every month or so, so I could keep it reasonably clean easily enough.


Bung
6748 posts

Uber Geek
+1 received by user: 2932

Subscriber

  #3395752 21-Jul-2025 08:18
Send private message

In Wellington we had 4m of slot drain in the drive and neighbour had about 8m. Both sections had a pit box at end to trap leaves but the channel still needed clearing. The drives were side by side, if neighbour's blocked the water came onto our drive. I usually cleared both at same time. I found the covers stayed in place quite happily without the screws and it was a lot quicker to just be able to hook them up


Goosey
3036 posts

Uber Geek
+1 received by user: 883

Subscriber

  #3395753 21-Jul-2025 08:19
Send private message

Petrol powered leaf blower…endless fun.



a few minutes a week and scoop it into the green bin.


timmmay

20900 posts

Uber Geek
+1 received by user: 5381

Trusted
Lifetime subscriber

  #3395758 21-Jul-2025 08:29
Send private message

If I have to have it done again I will put a pit in, but it is not worth redoing. I agree generally doesn't need to be screwed in.



I might get a leaf blower one day but just with the way things work here there is no way I could prevent leaves getting into the guttering.
