Title says it all.
Is it safe or does it have to go into the wall?



Filter this topic showing only the reply marked as answer Create new topic
nzkc
1573 posts

Uber Geek


  #3017592 5-Jan-2023 22:31
Send private message

Should be fine. They're low draw so not going to overload anything.




danepak

1112 posts

Uber Geek


  #3017593 5-Jan-2023 22:32
Send private message

nzkc:

Should be fine. They're low draw so not going to overload anything.



Thanks

fe31nz
1233 posts

Uber Geek


  #3017605 6-Jan-2023 01:04
Send private message

As always when plugging things into power boards, you need to add up what is already plugged in and see if the new total can exceed the rating of the board or of the wall plug (10 amps, which at 230 volts works out to 2300 watts).  Make sure you add up the input watts, as they are normally higher than the output watts.  And then when you have the total for that wall plug, add up what is on the other wall plugs on the same circuit to make sure that the total does not exceed the rating of the circuit (which is the rating of the circuit breaker or fuse for that circuit on the mains panel).  Power circuits are typically 15 or 20 amps, although old houses may have some 10 amp ones.  And then if the circuit is on a sub-board (for example a separate garage), then total up all the circuits on the sub-board and check that it does not exceed the rating of the circuit to the sub-board from the main board.  And then, for good measure, total up all the circuits on the main board and ensure they do not exceed the rating of the main breaker or fuse (which is the rating of the line going into the house).



Overloading any circuit is a good way of burning a house down, so it pays to think about what you are plugging in so as not to do that.  Power boards are often very cheaply made and the weakest link, so are commonly a thing that starts a fire.  As are extension cords.

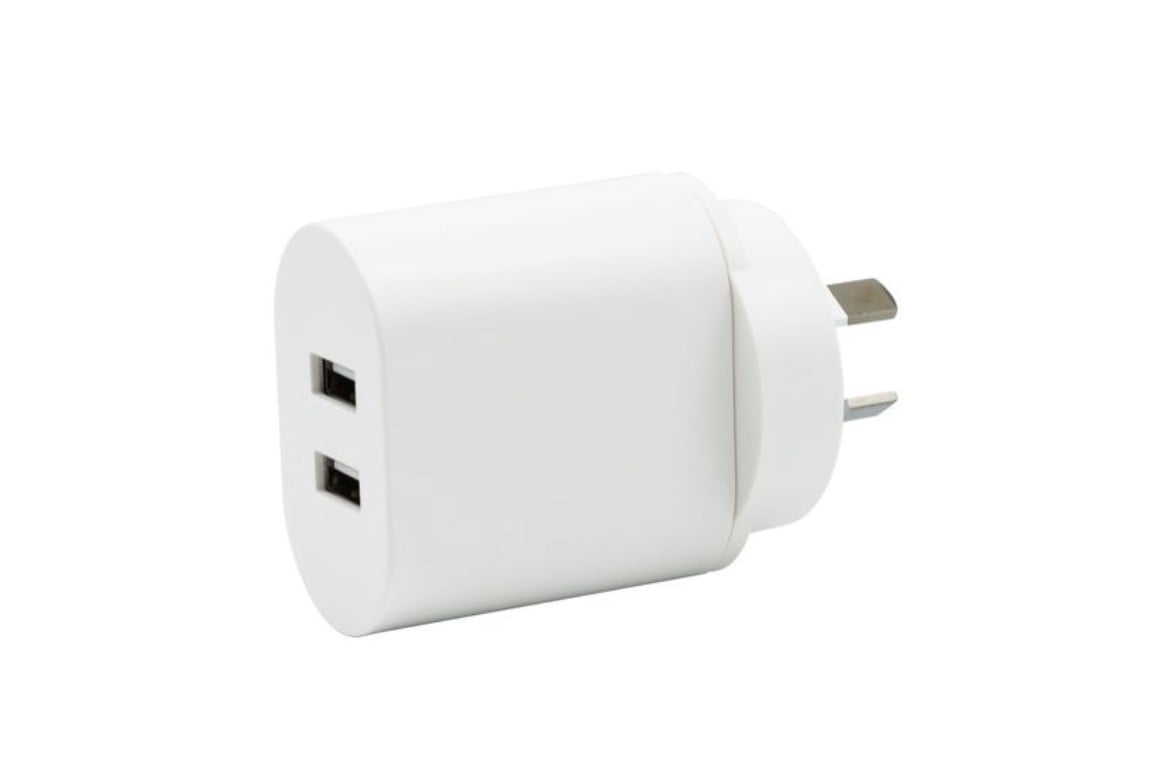

That said, the current USB charging standard only allows for up to 100 watts of output.  So if a 100 watt charger is say 80% efficient, it will only be drawing 125 watts from the mains.  Your pictured charger is too small to be one that outputs anything much more than about 35 watts, and it likely would be doing that across the two ports in total, rather than doing 35 watts per port for 70 watts output and maybe 88 watts input.  So the numbers are small compared to the 2300 watts the wall socket will allow.  Your power board may have a smaller rating though, and if you happen to have an electric heater plugged into it, an extra 88 watts might be enough to cause problems.




ANglEAUT
2329 posts

Uber Geek

Trusted
Lifetime subscriber

  #3017618 6-Jan-2023 08:04
Send private message

fe31nz:



As always when plugging things into power boards, ...



Thanks for the detailed answer. These are the nuggets of wisdom that make GZ such a worthwhile place to visit.









Please keep this GZ community vibrant by contributing in a constructive & respectful manner.


danepak

1112 posts

Uber Geek


  #3017731 6-Jan-2023 11:27
Send private message

fe31nz:

As always when plugging things into power boards, you need to add up what is already plugged in and see if the new total can exceed the rating of the board or of the wall plug (10 amps, which at 230 volts works out to 2300 watts).  Make sure you add up the input watts, as they are normally higher than the output watts.  And then when you have the total for that wall plug, add up what is on the other wall plugs on the same circuit to make sure that the total does not exceed the rating of the circuit (which is the rating of the circuit breaker or fuse for that circuit on the mains panel).  Power circuits are typically 15 or 20 amps, although old houses may have some 10 amp ones.  And then if the circuit is on a sub-board (for example a separate garage), then total up all the circuits on the sub-board and check that it does not exceed the rating of the circuit to the sub-board from the main board.  And then, for good measure, total up all the circuits on the main board and ensure they do not exceed the rating of the main breaker or fuse (which is the rating of the line going into the house).


Overloading any circuit is a good way of burning a house down, so it pays to think about what you are plugging in so as not to do that.  Power boards are often very cheaply made and the weakest link, so are commonly a thing that starts a fire.  As are extension cords.


That said, the current USB charging standard only allows for up to 100 watts of output.  So if a 100 watt charger is say 80% efficient, it will only be drawing 125 watts from the mains.  Your pictured charger is too small to be one that outputs anything much more than about 35 watts, and it likely would be doing that across the two ports in total, rather than doing 35 watts per port for 70 watts output and maybe 88 watts input.  So the numbers are small compared to the 2300 watts the wall socket will allow.  Your power board may have a smaller rating though, and if you happen to have an electric heater plugged into it, an extra 88 watts might be enough to cause problems.



Excellent information. I just learned something new today 😊

neb

neb
11294 posts

Uber Geek

Trusted
Lifetime subscriber

  #3017817 6-Jan-2023 14:38
Send private message

danepak: Title says it all.
Is it safe or does it have to go into the wall?





That's actually two distinct questions. If it came with something from Aliexpress or eBay then it's almost certainly not safe no matter what you plug it into :-).

nztim
3825 posts

Uber Geek

ID Verified
Trusted
TEAMnetwork
Subscriber

  #3017823 6-Jan-2023 14:52
Send private message

fe31nz:



As always when plugging things into power boards, you need to add up what is already plugged in and see if the new total can exceed the rating of the board or of the wall plug (10 amps, which at 230 volts works out to 2300 watts).





As it is AC you also need to take into consideration the power factor, so it won't be a full 2300 watts available to you





Any views expressed on these forums are my own and don't necessarily reflect those of my employer.
