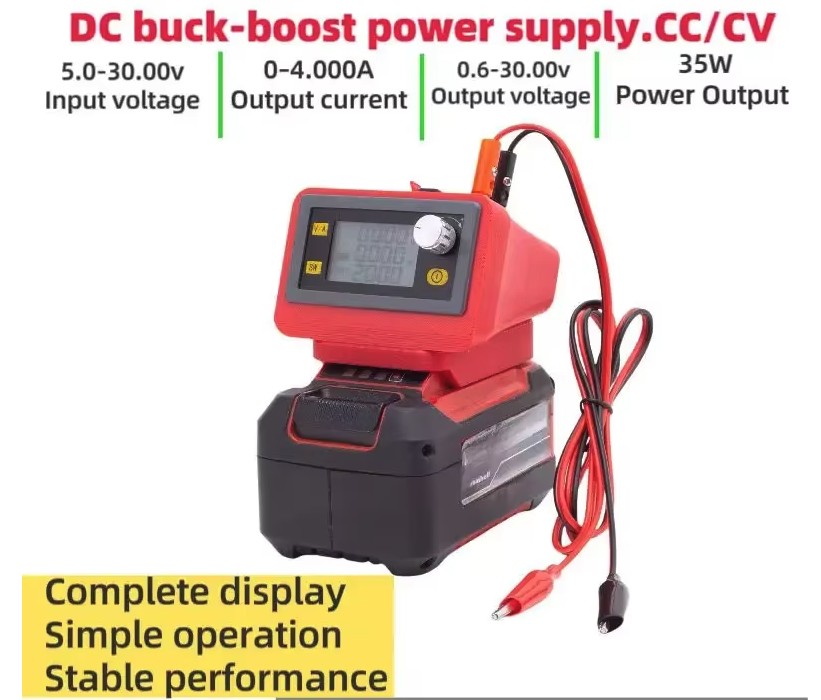

I thought this may be interesting to some people wanting a portable DC power supply, that uses Ozito batteries.



https://www.aliexpress.com/item/1005008067318689.html









Input voltage: 6.0~36V/5-30V
Output current: 0~5.0A
Output power:35W/ 80W
Voltage resolution: 0.01V
Conversion efficiency: 88% or so
Output voltage: 0.6~36V
Voltage accuracy: ±0.5% + 1 word
Current accuracy: ±0.5% + 3 words
Current resolution: 0.001A
Soft start: Yes
Input anti-reverse connection: Yes
Output backflow prevention: Yes

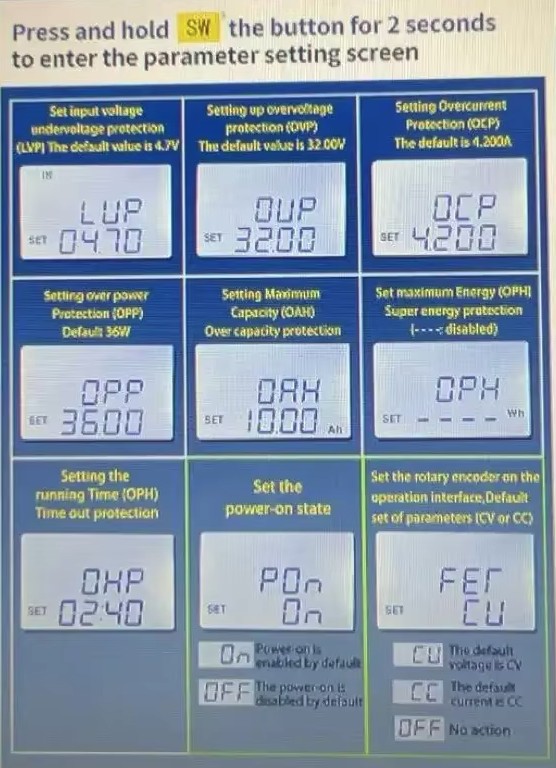

Input under-voltage protection: (4.7-30V adjustable, default 4.7V)
Output over-voltage protection: (0-37V adjustable, default 37V)
Output overcurrent protection: (0 -5.2A adjustable, default 5.2A)
Output over power protection: (0 -82W adjustable, default 82W)
Over temperature protection: Yes, default 100°C
Timeout protection: (0 -100H adjustable, default off)
Over capacity protection: (0~9999AH adjustable, default off)
Super energy protection: (0~9999WH adjustable, default off)






Create new topic
johno1234
3352 posts

Uber Geek
+1 received by user: 2843


  #3333351 20-Jan-2025 08:59
Send private message

I see there's a few handy Ozito/Einhell compatible widgets available - the camping lantern looks useful.








CokemonZ
1106 posts

Uber Geek
+1 received by user: 313


  #3333353 20-Jan-2025 09:09
Send private message

That is very cool


neb

neb
11294 posts

Uber Geek
+1 received by user: 10018

Trusted
Lifetime subscriber

  #3333626 20-Jan-2025 16:48
Send private message

If someone gets one, could they post photos of the internals?  I'm wondering how (or even if) they do all that in a $50 product.




pih

pih
666 posts

Ultimate Geek
+1 received by user: 359

Lifetime subscriber

  #3333911 20-Jan-2025 22:19
Send private message

johno1234:



I see there's a few handy Ozito/Einhell compatible widgets available - the camping lantern looks useful.





I bought a couple of LED spotlight lamps from AliExpress, they're 3D printed plastic with a cheap die cut metal swivel bracket, a pre-built LED array and USB charger port, plus a couple of switches. Doesn't sound like much but I'm actually really loving them. Fantastic for camping, work lights, etc. The camping lanterns are new I think, they look good too.


richms
29098 posts

Uber Geek
+1 received by user: 10209

Trusted
Lifetime subscriber

  #3333937 21-Jan-2025 07:47
Send private message

neb:



If someone gets one, could they post photos of the internals?  I'm wondering how (or even if) they do all that in a $50 product.





Its a readily available power supply module in a 3d printed case. The modules are ok for voltage regulation, but for current regulation they're as bad as any other cheap power supply because of all the capacitance on them. Basically have to hold it shorted while you connect the load to it and hope it doesn't overshoot when you remove the short.





Richard rich.ms
