PCI Sound Card Stuttering, replaced and still stuttering.

Forums › Microsoft Windows › PCI Sound Card Stuttering, replaced and still stuttering.

1 | 2 | 3 | 4 | 5 | 6

37 posts

Geek

#540821 3-Nov-2011 17:39

Actually it is still doing it. It didn't do it last night though. Strange it is doing it again. Thought i had fixed the issue. Obviously not as easy as that. The console thing, is the driver/program that came with the Sound card. When i downloaded the newest drivers, also on the cd too. LIke giving you options for surround sound etc.

gzt

17118 posts

Uber Geek

Lifetime subscriber

#540832 3-Nov-2011 18:16

Personally, I tend to install just the drivers without the control program. But for XP I'm not sure if Windows can do 5.1 socket assignment without the control program? The card I installed was just for simple stereo speakers.

This is another popular PCI latency tool, maybe it will report all devices on your system correctly:

http://downloads.guru3d.com/download.php?det=951

JarrodT50

37 posts

Geek

#540834 3-Nov-2011 18:29

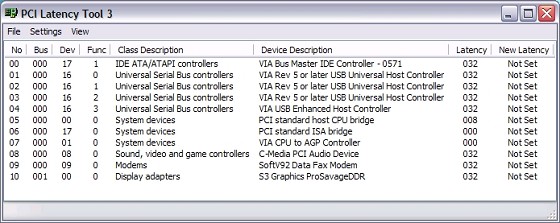

Hi, here is the PCi latency tool screenshot. Also i was reading another forum and the suggested DPC Latency checker. [url]http://www.thesycon.de/deu/latency_check.shtml
Also running the program and disabling drivers while in the device manager and resetting the program. Once the red and yellow bars have gone it means it has solved the issue and can only see green bars. Etc. I will try this program and see what success i have (If any) and will post if i have found the problem. Also i just got rid of my wireless usb drivers, because some people have had problems with it. I don't normally use wireless at all. Not a problem for me, i mainly use ethernet. Here is the forum i was reading [url]http://www.sevenforums.com/sound-audio/26494-does-anyone-actually-have-sound-stuttering-fix-4.html

gzt

17118 posts

Uber Geek

Lifetime subscriber

#540838 3-Nov-2011 18:43

You need the [/url] tag at the end of the urls : )

JarrodT50

37 posts

Geek

#540843 3-Nov-2011 19:07

http://www.thesycon.de/deu/latency_check.shtml?
http://www.sevenforums.com/sound-audio/26494-does-anyone-actually-have-sound-stuttering-fix-4.html[/url]
Is that right?

**Ahh. I see. But back to my problem, i'm still getting it even to the second i'm writing this. Really annoying now. I will try the DPC Latency tool and disable devices in device manager and will post if i have any success.

gzt

17118 posts

Uber Geek

Lifetime subscriber

#540846 3-Nov-2011 19:11

[/url] to end.
[url] to begin.

: ) (you can edit also)

gzt

17118 posts

Uber Geek

Lifetime subscriber

#540861 3-Nov-2011 19:39

It turns out your chipset is known for problems of this nature.

There is a patch (developed independently) to address some of the issues.

This is a link to the latest version of the patch - which contains experimental code.

There are also earlier versions of the patch available (you will need to search for them) which might be more stable.

http://www.georgebreese.com/net/software/readmes/vlatency_v020b21_readme.HTM

The patch (the latest one anyway) addresses so many different issues I would be uncomfortable about installing it unless I tried everything else first and had a backup on hand.

Interested to see the dpc results, no hurry.

[The KM chipset is basically the KT with integrated graphics according to Wikipedia]

Tradepub

Free professional, reference and technical white papers (affiliate link).

JarrodT50

37 posts

Geek

#540872 3-Nov-2011 20:06

I did the DPC testing, absolutely nothing. I disabled every driver i could. And it still stuttered and went red + yellow. I think i disabled the monitor as i currently have a black screen. (Using another pc in the house at the moment) Although now i am not sure how to get the screen back to being able to view a picture. Damnit. Oncew i get that working, i will try with the chipset update(s) I'll try to search for earlier versions of the chipset and install/update it. And see what that does.

gzt

17118 posts

Uber Geek

Lifetime subscriber

#540881 3-Nov-2011 20:25

For the black screen try a safe mode boot (and remove display drivers if needed) then reboot. [drivers will be detected automatically]

The patch could be messy. At least to start with, it would be a lot safer to experiment with the PCI latency settings in preference to applying a patch.

After you roll back your other changes, try setting the CMedia device to 64 and then 128.

Don't forget to save the settings, then restart the tool to check that you have saved the settings.

gzt

17118 posts

Uber Geek

Lifetime subscriber

#540883 3-Nov-2011 20:29

How far into the red did your DPC test go?

JarrodT50

37 posts

Geek

#540884 3-Nov-2011 20:32

i've actually got this error ntoskrnl.exe is missing or corrupt. I know how to fix it, but i need to get into my hard drive on that computer to get the installation .iso off it. After i've done that and restored it, can't get into safe mode or last known good settings etc. But i will use a program called ubuntu to get into windows and get the file and then restore it. Pain in the butt. And then i will try the latency setting change. will post again. weither success of failure.

JarrodT50

37 posts

Geek

#540888 3-Nov-2011 20:39

Oh and the red went into around 80000 + or- a rew thousand. That was at max.

JarrodT50

37 posts

Geek

#542105 7-Nov-2011 17:03

Been quiet for a while. I managed to do a format and clean install. No success. Doesn't help one bit. I tried the PCI Latency tool. Doesn't do anything at all. Changed it to 32, 64, 128 even 255. Nothing at all. Still got the problem. Back to using onboard audio now, way too annoying to try listen to music and play games etc.

gzt

17118 posts

Uber Geek

Lifetime subscriber

#542113 7-Nov-2011 17:14

My feeling is you may need to optimise the latency ratios between some of those devices depending on function. That is likely to be a time consuming (but educational) task of research and experiment.

Now may be a good time to try the patch - but he has a note that it will not install on XPSP2 and later so there will be some serous technical challenges there as well.

Unless you happen to have a pre-SP2 version of XP and can apply SP3 later...

gzt

17118 posts

Uber Geek

Lifetime subscriber

#542115 7-Nov-2011 17:19

This one has some details of the pci latency changes made by the patch:

http://www.tecchannel.de/ueberblick/archiv/401770/via_chipsets_slow_down_pci_cards/index10.html

Some are set at bios level, and some are set at o/s level.
