#986444 12-Feb-2014 21:55

I'm changing to 14W dedicated LED fittings with NZ approvals and dimmable driver. Ten are installed as of a couple of weeks ago, really impressed and the place is well lit. Photos will come when I have a chance. Cost is $55 each. Too many expenses this month, probably do it next month. Stock in Wellington is ~3300k of which I have one older 10W model, but the guy takes special orders so I go 4000k which is perfect for us. Delivery is about 3-4 weeks. Brand is Quality LED Lighting, just Google it. Even comes with full DoC. He has larger ones, but I've decided it is too much trouble enlarging the holes in my ceiling. If it was not for these lights, I would have made my own as I can for about the same price. When our builder saw it he ordered some for himself too.

(Edited because it is 14W, not 12W.)

You can never have enough Volvos!

richms

28198 posts

Uber Geek

Trusted

Lifetime subscriber

#986446 12-Feb-2014 21:57

Are the dimmable drivers constant current or pwm. And are the mains terminals large enough to take 3 1.5mm wires or will I have to resort to external junction boxes?

Richard rich.ms

Niel

3267 posts

Uber Geek

Trusted

#986466 12-Feb-2014 22:13

Sorry, above I said the new model is 12W. It is actually 14W. Output is stated as 990lm. The larger 23W model is 1633lm and the smaller 9w model is 640lm. Hole sizes for the 3 power ratings are approx 75mm, 120mm and 160mm. Warranty is 3 years. Also see now the colour he stocks is 3000k, not 3300k. CRI-80Ra.

Terminals are large. Dimming is constant current, requires a trailing edge dimmer like PDL 624T or 624TM. I did not buy it for dimming, but might have to in the main bedroom (for TV) and lounge (also for TV). We have 2 fittings towards one end of a large rectangle double bedroom (because the other end has a fan), and the whole room is well lit up. The electrician that imports/rebrands it could not find any good fittings in NZ so he went to China to find a manufacturer to make what he wants and what he is happy with. The early 12W model had a driver with tiny terminals barely enough for a single wire, but the new 14W one takes at least 2 wires twisted together. Maybe 3, but not sure. The terminal cover has a ratchet effect which works with any thickness wire, but I don't think the restraint will be good with 3 wires. I would recommend 2.

You can never have enough Volvos!

Niel

3267 posts

Uber Geek

Trusted

#986483 12-Feb-2014 22:23

The driver look identical to Deal Extreme SKU 284628 but with blue covers. The holes are for the terminal screws, not to hold the covers down. I did open one and the circuit board is well assembled and conformal coated, but would be easy to replace the capacitor if ever needed to. That said, it does run cool as the driver dissipates only about 1-2W.

You can never have enough Volvos!

shall0w

80 posts

Master Geek

#986677 13-Feb-2014 11:41

Niel: I'm changing to 14W dedicated LED fittings with NZ approvals and dimmable driver. Ten are installed as of a couple of weeks ago, really impressed and the place is well lit. Photos will come when I have a chance. Cost is $55 each. Too many expenses this month, probably do it next month. Stock in Wellington is ~3300k of which I have one older 10W model, but the guy takes special orders so I go 4000k which is perfect for us. Delivery is about 3-4 weeks. Brand is Quality LED Lighting, just Google it. Even comes with full DoC. He has larger ones, but I've decided it is too much trouble enlarging the holes in my ceiling. If it was not for these lights, I would have made my own as I can for about the same price. When our builder saw it he ordered some for himself too.

(Edited because it is 14W, not 12W.)

These are the same ones I posted about last year - I have had them in my house for nearly 12 months now and they are brilliant. I've had one driver fail (within a few weeks of install) and it was replaced without issue.

hangon

397 posts

Ultimate Geek

#998039 3-Mar-2014 11:27

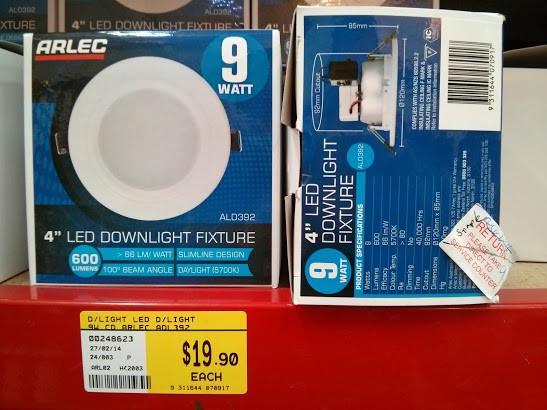

new LED downlight in Bunnings, branded Arlec $19.9

9w 600 lum 92mm cut out IC F

Anyone tried it?

richms

28198 posts

Uber Geek

Trusted

Lifetime subscriber

#998070 3-Mar-2014 12:07

Bought one. Sitting on the windowsill because I have better things to do at the moment. Construction looks like a cheap dx one but it has approval numbers so is ok from that perspective. Might open it for some pics tonight / tomorrow.

Richard rich.ms

Sharesies

Trade NZ and US shares and funds with Sharesies (affiliate link).

Niel

3267 posts

Uber Geek

Trusted

#998287 3-Mar-2014 17:13

Would be interested in your feedback, but 5700K feels a bit cold to me:
https://www.lumicrest.com/index.php?main_page=page&id=1

You can never have enough Volvos!

richms

28198 posts

Uber Geek

Trusted

Lifetime subscriber

#998476 3-Mar-2014 22:04

Here are some pictures of it opened up to look at. Construction seems as cheap as it could be without falling apart, mains terminals look ok for a single piece of 1.5mm - its the clamp that wouldnt take more than one piece.

http://www.flickr.com/photos/richms/sets/72157641792937923/

Richard rich.ms

Niel

3267 posts

Uber Geek

Trusted

#999115 4-Mar-2014 21:47

Power supply sitting on top of LED "heatsink", not a good idea for capacitor life.

You can never have enough Volvos!

networkn

Networkn
32361 posts

Uber Geek

ID Verified

Trusted

Lifetime subscriber

#1375184 27-Aug-2015 13:28

So what's the current state of play? I was going to replace my few remaining E27 (Screw) bulbs with LED's. I want pretty bright, cold white, is there a current recommendation?

shk292

2858 posts

Uber Geek

Lifetime subscriber

#1375252 27-Aug-2015 15:21

networkn: So what's the current state of play? I was going to replace my few remaining E27 (Screw) bulbs with LED's. I want pretty bright, cold white, is there a current recommendation?

I used these, very pleased with them
http://www.switch-lighting.co.nz/product/e-lightz/

Niel

3267 posts

Uber Geek

Trusted

#1375260 27-Aug-2015 15:26

I've changed to dedicated fittings from Quality LED Lighting in Wellington, been running great for longer than the pay-back period. And love the colour temperature I could specify myself. And the light spread with no shadows.

For the bathroom I'm using Click GU10 bulbs from Bunnings, very happy and wide spread. For security light I'm very happy with Click also. At work I have a 14W Philips E27 from Bunnings, works really well. But don;t be fooled into buying the higher priced lower power bulb, check the Lumens on the package.

You can never have enough Volvos!

richms

28198 posts

Uber Geek

Trusted

Lifetime subscriber

#1375270 27-Aug-2015 15:44

The click par38's I put in have all failed except one of a pair that is under cover. The glue holding the front on fails and the front glass drops off them too.

Richard rich.ms

Niel

3267 posts

Uber Geek

Trusted

#1375339 27-Aug-2015 17:46

richms: The click par38's I put in have all failed except one of a pair that is under cover. The glue holding the front on fails and the front glass drops off them too.

I have 2 in a motion sensing fitting mounted under the eves on the corner of the house North side, so covered but still exposed to wind/sun. Been going fine for about 6 months, and just checked and found no assembly issues. I would not call them quality, but I do like the neutral white and the spread (of both par38 spots and GU10 wide angle).

You can never have enough Volvos!
