Insanekiwi

601 posts

Ultimate Geek
+1 received by user: 83


  #3080282 28-May-2023 11:21
Send private message



Red marked area needs to be cut.



SomeoneSomewhere
1882 posts

Uber Geek
+1 received by user: 1086

Lifetime subscriber

  #3080289 28-May-2023 11:54
Send private message

Yup, classic concrete placement failure.



Can you post a picture from the other side showing you much height you have to work with?


mkissin
402 posts

Ultimate Geek
+1 received by user: 391

ID Verified
Lifetime subscriber

  #3080290 28-May-2023 11:56
Send private message

Bung:
My sister-in-law has found that if the rubber seal isn't touching the ground your house will fill up with mice.



I have a small gap at one end of mine for a couple of extremely annoying reasons, and I get an absolute truckload of crickets coming in if I leave the garage light on after dark.




Jase2985
13734 posts

Uber Geek
+1 received by user: 6208

ID Verified
Lifetime subscriber

  #3080294 28-May-2023 12:11
Send private message

SomeoneSomewhere:



Yup, classic concrete placement failure.





not a failure, it worked as designed.



there was just no forethought put into how it would work with the garage door.


Insanekiwi

601 posts

Ultimate Geek
+1 received by user: 83


  #3080389 28-May-2023 16:11
Send private message

I wouldn’t call it a failure. I have lived with it for 4 years and it’s only when really heavy rain and wind blows against the door. It seeps little from two points.

It’s probably about 2-2.5cm high.


Bung
6733 posts

Uber Geek
+1 received by user: 2926

Subscriber

  #3080394 28-May-2023 16:47
Send private message

That view is better, it shows the garage floor being higher than the drive. The Code requirement is 50mm min.The usual method shown in the Building Code examples is for the ~20mm step currently at the front edge of the door to be behind the door then sloping down to the drive level.






Shop now for Dyson appliances (affiliate link).
eracode
Smpl Mnmlst
9333 posts

Uber Geek
+1 received by user: 6203

ID Verified
Trusted
Lifetime subscriber

  #3080481 28-May-2023 20:53
Send private message

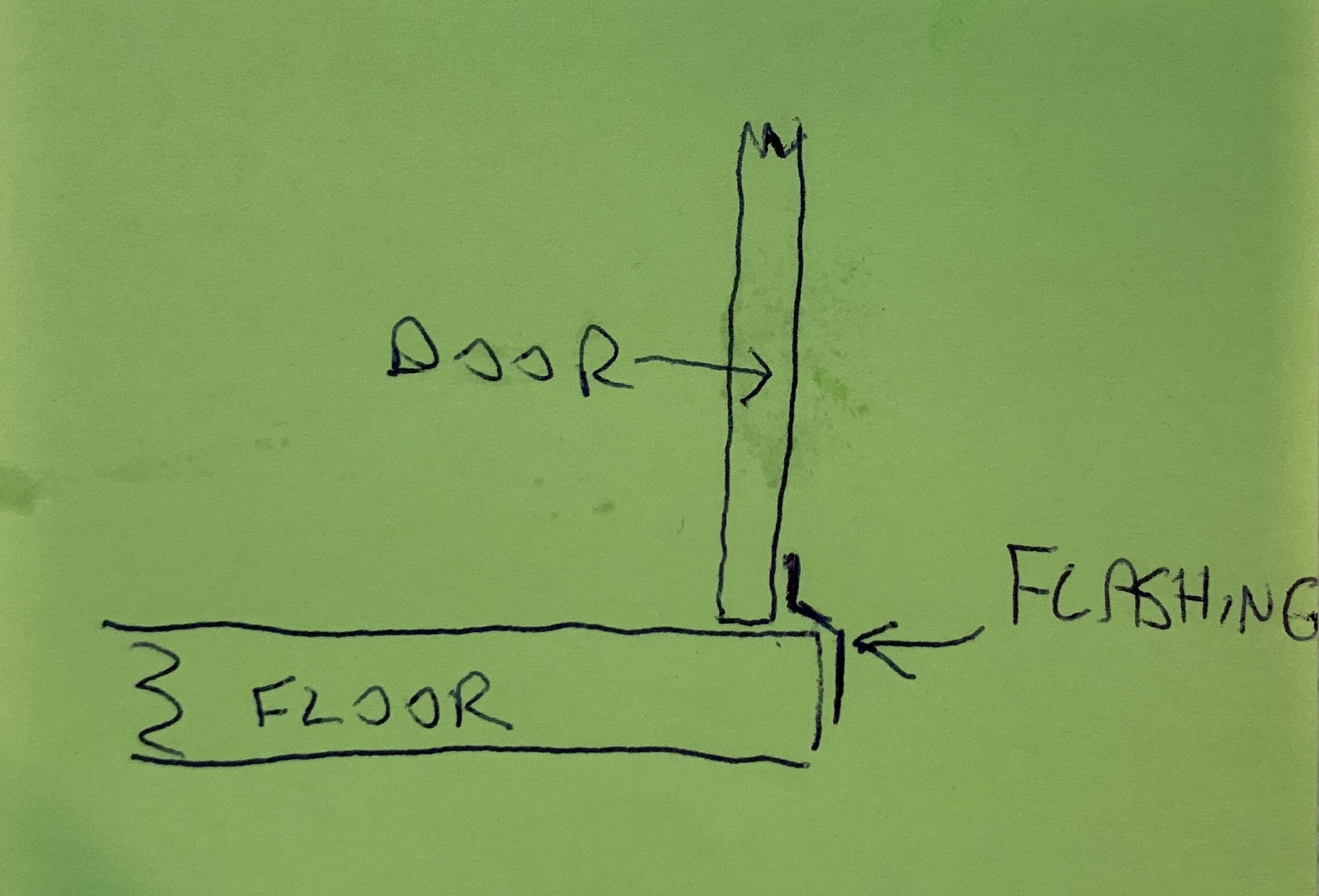

How about trying to buy - or probably get it made - a small 5m Z-shaped flashing that could be fitted (and sealed) to the outside of the bottom edge of the door, reach over the horizontal lip of the concrete floor then go down the outside of the lip. Water would hit the door, run down the flashing and be directed outside, below the floor level.







Helluva lot easier - and probably a lot cheaper - than having a pro remove concrete.





Sometimes I just sit and think. Other times I just sit.


SomeoneSomewhere
1882 posts

Uber Geek
+1 received by user: 1086

Lifetime subscriber

  #3080483 28-May-2023 20:56
Send private message

Possibly feasible, but colour-matching the door and actually sealing it against the door is probably going to be a pain.



The existing lip looks tall enough that taking an angle grinder to it for a horizontal cut should be pretty easy - you get a double step, with a new cut about halfway between the 'outdoor' and 'indoor' levels.


eracode
Smpl Mnmlst
9333 posts

Uber Geek
+1 received by user: 6203

ID Verified
Trusted
Lifetime subscriber

  #3080489 28-May-2023 21:15
Send private message

Here’s a simpler and easier idea. It’s easy to buy aluminium extrusion from Bunnings, M10 etc. Something like a 30x20x1 mm unequal angle - attach to the bottom of the door with pop rivets or whatever. I wouldn’t have thought colour-matching would be an issue here - there would be only a narrow strip of aluminium showing - and it’s basically grey like the door.



It would be dead easy to seal - just run a small bead of silicon or similar sealant along the step in the angle where the extrusion juts out below the door.



This DIY job could be done in less than hour and materials would be less than $50.









Sometimes I just sit and think. Other times I just sit.


Wheelbarrow01
1784 posts

Uber Geek
+1 received by user: 2638

Trusted
Chorus

  #3080508 28-May-2023 23:41
Send private message

Who did you buy the garage off? And did they arrange the entire construction of it?



I bought a Versatile garage 3 years ago and contracted them to build it. They cut in the rebated section of slab for the doorway before the concrete cured, so that water can't track in. My sectional door also has a rubber strip at the bottom which forms a tight seal to keep wind-blown debris and dust out. It's a very neat and tidy job. I can take a photo and post it here tomorrow if you like. They also rebated the pedestrian doorway on an angle so that rainwater dripping off the bottom of the door tracks out and away from the garage.



I would have thought that any concrete placer/garage builder worth their salt would know to do these things as standard.


Insanekiwi

601 posts

Ultimate Geek
+1 received by user: 83


  #3080510 28-May-2023 23:46
Send private message

@eracode - thank you for the great idea. I think this could potentially work with good quality double side tape if I can get something similar. Maybe worthwhile looking at Aliexpress too!







Shop now for Dyson appliances (affiliate link).
Jase2985
13734 posts

Uber Geek
+1 received by user: 6208

ID Verified
Lifetime subscriber

  #3080521 29-May-2023 05:39
Send private message

does your door not have a rubber seal on the bottom of it? why not just put one of those on?



http://www.ravenseals.co.nz/domino/raven/ravenweb.nsf/html-v/catalogue2







They do a couple others which may also suit










Ge0rge
2114 posts

Uber Geek
+1 received by user: 2060

Trusted
Lifetime subscriber

  #3080524 29-May-2023 06:36
Send private message

Jase2985:

does your door not have a rubber seal on the bottom of it? why not just put one of those on?


http://www.ravenseals.co.nz/domino/raven/ravenweb.nsf/html-v/catalogue2





They do a couple others which may also suit









Mine does, but capillary action still allows water to track under it. Plus, it's a garage - the floor is never perfectly clean, this g's such as sawdust etc also interrupt the seal.

Bung
6733 posts

Uber Geek
+1 received by user: 2926

Subscriber

  #3080526 29-May-2023 07:03
Send private message

Wheelbarrow01:

I would have thought that any concrete placer/garage builder worth their salt would know to do these things as standard.



It is an internal garage on a complete house build. You'd have to go back to the drawing for the slab. Maybe at planning stage a tilt door was assumed.

SomeoneSomewhere
1882 posts

Uber Geek
+1 received by user: 1086

Lifetime subscriber

  #3080558 29-May-2023 08:27
Send private message

Yeah, it heavily depends on the type and brand of door. We cut the nib back when we replaced the doors because the new door had a wider bottom section.

The rubber seal is an air seal; it's not going to be very effective against water.
