Remove 2 screws left by a broken window lock

Forums › Home Workshop DIY › Remove 2 screws left by a broken window lock

1 | 2

Gordy7

gordy7
2001 posts

Uber Geek
+1 received by user: 505

ID Verified

Lifetime subscriber

#3233962 23-May-2024 21:59

After the penetrating lube, reverse cutting or left hand drills can be useful for removing stubborn screws.

https://tradetools.co.nz/shop/drilling/jobber-length/left-hand

I have reverse sharpened regular drills - with some difficulty.

Gordy

My first ever AM radio network connection was with a 1MHz AM crystal(OA91) radio receiver.

alisam

878 posts

Ultimate Geek
+1 received by user: 83

#3234018 24-May-2024 07:13

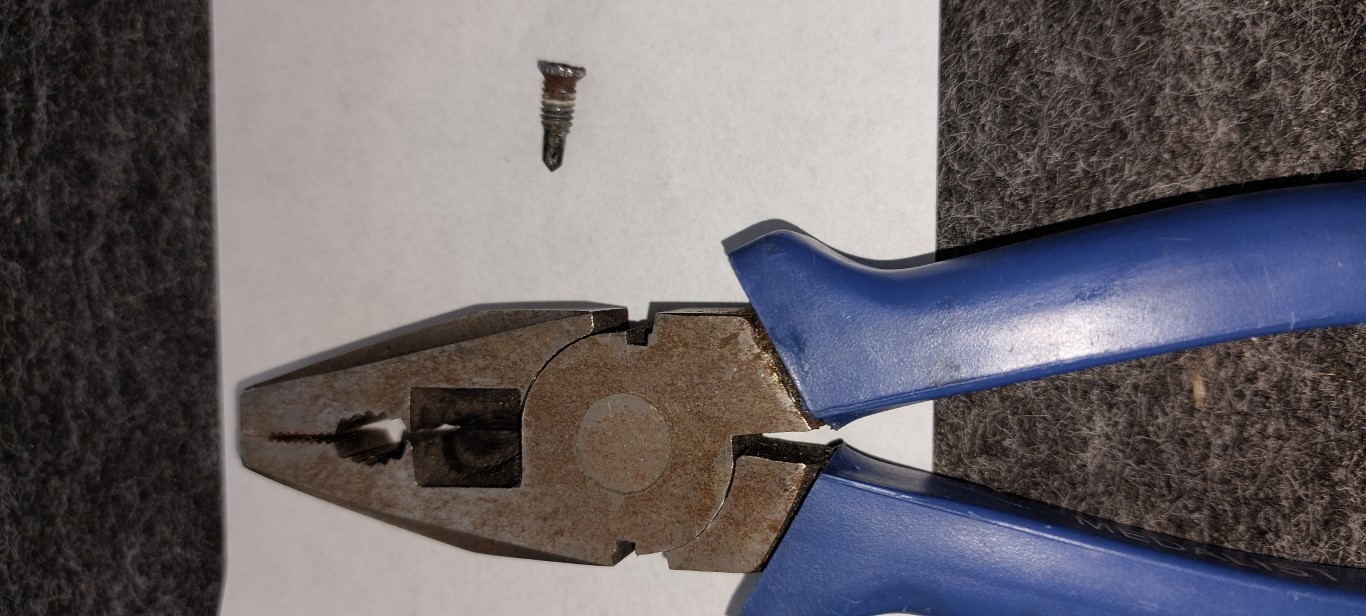

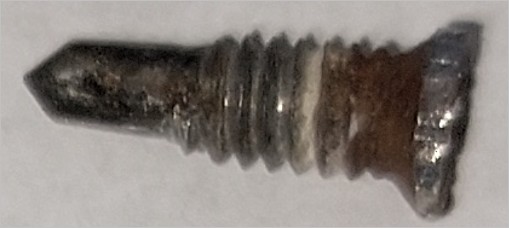

I have one of the two screws out. Will need to spend more time on the other.

I have a spare window lock (it's not brand new as I had first thought) but will need new screws.

PC: Dell Inspiron 16 5640 (Windows 11 Home), Dell Inspiron 7591 2n1 (Windows 11 Pro), HP ProBook 470G1 (Windows 10 Pro), Intel NUC7I5BNH (Zorin)
Net: Grandstream 1 x GWN7062 Router, 1 x GWN7665 Access Point
Storage: Synology DS216play NAS, 2 x 6TB
Media: 3 x Amazon FireTV. Echo, Dot, Spot
TV: 2 x Samsung H6400 55" LED TV, Panasonic TH-P50G10Z 50" Plasma TV
Mobile: Samsung Galaxy A52 5G
Wearable: Gear S3 Frontier

alisam

878 posts

Ultimate Geek
+1 received by user: 83

#3234510 25-May-2024 09:30

The spare window lock is a non-starter as it is 'left hand' and I need 'right hand'. Also the Fixing Centre is approx 47 mm and current fasteners I have seen on-line are 32mm.

Found this site with secondhand window locks (Double Catch Aluminum Fasteners – rummages.co.nz). This may be the only site in NZ having secondhand fasteners the same as mine.

I am not bothered whether the fastener is lockable (all our window locks are keyed alike and I don't really want a separate key).

The window wedges are riveted.

So, I'll remove the other screw and either investigate to see if a new fastener can use one of the two holes and then drill a new hole (and use the existing wedge) or just fit a brand new fastener.

eracode

Smpl Mnmlst
9333 posts

Uber Geek
+1 received by user: 6203

ID Verified

Trusted

Lifetime subscriber

#3234513 25-May-2024 09:43

Gordy7:

I have reverse sharpened regular drills - with some difficulty.

I would have thought that wouldn't really work - because wouldn't the twist/spiral need to run up the drill in the other direction? Unless you use it running the drill in reverse.

Sometimes I just sit and think. Other times I just sit.

Gordy7

gordy7
2001 posts

Uber Geek
+1 received by user: 505

ID Verified

Lifetime subscriber

#3234517 25-May-2024 10:08

eracode:

Gordy7:

I have reverse sharpened regular drills - with some difficulty.

I would have thought that wouldn't really work - because wouldn't the twist/spiral need to run up the drill in the other direction? Unless you use it running the drill in reverse.

Yep... reverse sharpened are the key words and of course running the drill in reverse.

The idea is that you are drilling out the screw and also maybe driving out the screw in the process.

It is the reverse sharpened cutting edge that does the work for drilling out screws.

There is not much waste the requires the flutes to clear cuttings.

I can tell you that after many years of sharpening drills with the correct cutting edge and then getting your head around reverse sharpening a regular drill takes some visual feat. It does work.

Gordy

My first ever AM radio network connection was with a 1MHz AM crystal(OA91) radio receiver.
