Topic # 170877 29-Mar-2015 15:15
Send private message

Hi I'm planning a bathroom renovation and would like to know the rules around where electrical items can be installed. Things like light switches, electrical plugs, heated towel rails, vanity lights etc and how close they can be installed to the basin and shower etc.

Thanks in advance.

Create new topic
14360 posts

Uber Geek
+1 received by user: 2608

Trusted
Subscriber

  Reply # 1272930 29-Mar-2015 15:49
Send private message

Surely the electrician doing the work can advise you about this? You do know exactly what you can and can't do yourself right, certificates you need, to make sure if your house burns down because of dodgy wiring you're still covered?




AWS Certified Solution Architect Professional, Sysop Administrator Associate, and Developer Associate
TOGAF certified enterprise architect
Professional photographer


18887 posts

Uber Geek
+1 received by user: 5437

Trusted
Lifetime subscriber

  Reply # 1272936 29-Mar-2015 15:55
7 people support this post
Send private message

I wouldn't accept information about this topic unless it was paid advice by a registered electrician. I certainly wouldn't risk accepting information about this from someone you have never met and can't verify the credentials from, in an online forum. At best I'd consider any advice gained here to be guidance whilst you find yourself a suitable electrical contractor.









7976 posts

Uber Geek
+1 received by user: 2638

Subscriber

  Reply # 1272943 29-Mar-2015 16:12
Send private message

http://goo.gl/C8dGtz

Section 6 are the rules around what and where you can put things.

Again as mentioned your electrician should be doing all this for you



10 posts

Wannabe Geek


  Reply # 1272951 29-Mar-2015 16:18
Send private message

I just want to get an idea of the rules so I can plan a bathroom layout. Yes I'm just after guidance obviously and would get an electrician in when I get to that stage.

7976 posts

Uber Geek
+1 received by user: 2638

Subscriber

  Reply # 1272956 29-Mar-2015 16:26
Send private message

read the link above then as it gives dimensions and specifications of electrical fittings and where they can go

i did the same thing when we renovated our bathroom

Stu

Hammered
5116 posts

Uber Geek
+1 received by user: 1088

Moderator
Trusted
Lifetime subscriber

  Reply # 1272957 29-Mar-2015 16:29
Send private message

The electrician will need to be involved right from the beginning for what you're looking at doing.

They'll need to see what's going on to quote you anyway and they'll advise where things can and cannot be placed.




Keep calm, and carry on posting.







Click to see full size Click to see full size


7976 posts

Uber Geek
+1 received by user: 2638

Subscriber

  Reply # 1272961 29-Mar-2015 16:41
Send private message

Stu: The electrician will need to be involved right from the beginning for what you're looking at doing.

They'll need to see what's going on to quote you anyway and they'll advise where things can and cannot be placed.


yes but its just not that easy every time though. our bathroom is quiet small and we wanted a lot fitted in there and there was only a few places things could go so we had to have an idea if they could work or not while designing it.

with our bathroom there was no point in involving them from the start as you need to get the layout of things like shower/bath and sink, before you can consider getting the electrician to sort out where things go

if you have a basic understanding of the rules. then you can design the bathroom while keeping things like powerpoints in their required zones. then you can get the electrician to mack sure its all acceptable IAW the regs.



Stu

Hammered
5116 posts

Uber Geek
+1 received by user: 1088

Moderator
Trusted
Lifetime subscriber

Reply # 1272975 29-Mar-2015 16:58
Send private message

Beginning as in before anything goes on the walls, as opposed to after you've started the build. Also reminding the OP that pre-wiring is required for additional equipment not already in the existing bathroom.

Not saying there's anything wrong with planning the layout yourself. That's part of the fun of DIY.

The sparky would also confirm whether or not you've understood the regs correctly.




Keep calm, and carry on posting.







Click to see full size Click to see full size




10 posts

Wannabe Geek


  Reply # 1273001 29-Mar-2015 17:44
Send private message

Thanks Jase2985

3267 posts

Uber Geek
+1 received by user: 77

Trusted

  Reply # 1273087 29-Mar-2015 22:08
3 people support this post
Send private message

Most of the people that reeplied do not seem to "get" the question.  This is not about what the home owner is allowed, but rather a home owner that wants to know what is allowed so that he can design the bathroom the way they want it instead of whatever the electrician recommends which in some cases is whatever is easy/feasible with the stud locations.  But a smart home owner will move studs in order to get fittings where he wants it, and for that reason needs to know what is allowed.

To answer the question, it is in the wiring rules which costs about $130 or so.  It is copyrighted with restrictions you accept when you purchase it, so no one can (legally) post the relevant diagrams from the standard.  Essentially there are areas like above showers/baths where you can't have any electrical devices unless it is extra low voltage (which is below 60V DC I think, note that 240V AC is called low voltage so don't confuse it).  But there are "reach areas" around that so you do need a diagram to understand it.

You can have a fan/light inside a shower, it just needs to be an in-line fan and a 12V (e.g.) light for safety.  I would consider do this as it removes steam from the source rather than pulling it across the cooler bathroom.




You can never have enough Volvos!


1801 posts

Uber Geek
+1 received by user: 125


  Reply # 1273165 30-Mar-2015 08:33
Send private message

Here's some relevant information on IP ratings of lights in a bathroom situation for what it's worth.


1985 posts

Uber Geek
+1 received by user: 265

Subscriber

  Reply # 1274230 31-Mar-2015 12:24
Send private message

Niel: Most of the people that reeplied do not seem to "get" the question.


People love to pounce... :-(

Hmm, what to write...
1000 posts

Ultimate Geek
+1 received by user: 511

Trusted
Subscriber

  Reply # 1274269 31-Mar-2015 12:40
One person supports this post
Send private message

Some Basics to help you...

You can put anything you like above 2.25m.
So as long as you have a normal sort of room with at least a  2.4m ceiling you can have any lighting/fans you like even directly above the shower.
If you have a fan heater you can have it anywhere you like above 2.25. (don't put it above the bath or in the shower (Duh)

Socket outlets that are RCD protected must not be within 150mm of the sink or 500mm if it is a large sink or bath

you can put a socket outlet under the sink in the cupboard if you like (for a toothbrush or something)


As long as you get an IP rated towel rail (and connection) you can have it next to the bath etc. but no electrical stuff should be within 300mm of the floor.

These things should at least get you started, yes obviously you need to get your sparky to do it and of course check your plan but like I say you should at least get close with these rules

Matthew
(Yes I am registered)





Matthew


199 posts

Master Geek
+1 received by user: 53


  Reply # 1275321 1-Apr-2015 14:18
One person supports this post
Send private message

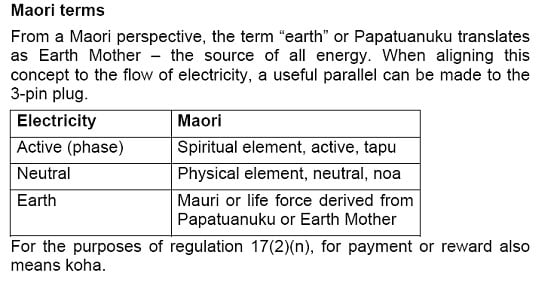

Just make sure the Electrician has a clear commitment to the principles of the Treaty of Waitangi and that he's familiar with the Maori electricity terms:




1700 posts

Uber Geek
+1 received by user: 442


  Reply # 1281583 12-Apr-2015 19:11
Send private message

pro tip: electrian won't put that power point that you want directly above the basin so you can kill yourself? have him install it in a cupboard, then swap the basin and cupboard around. this actually (unintentionally) happens.

oh, and for the lols:








-- "crap electrical" on facebook
