im wanting to mount a steel (heavy) basketball post to a concrete footing







the post mounts by way of a steel bottom plate with 4x m12 holes







it needs to be removable, so anything like a dynabolt / stud anchor wont work







it needs to be flush at ground level when the post is removed (nothing for kids to run into) so embedding the threaded end in the concrete wont work







ive looked at ramset drop anchors, only size that is close is m10 and it embed about 50mm into the footing, not big or deep enough to hold







any ideas? something like a m12 female threaded socket, 200mm or longer. ive googled hard and come up empty


Create new topic
506 posts

Ultimate Geek


  # 1689479 15-Dec-2016 15:11
Send private message

Get in touch with Anzor fastners (Spelling?!?)



They can source all sorts of weird and wonderfull


25 posts

Geek


  # 1689490 15-Dec-2016 15:30
One person supports this post
Send private message

Try flush head dynabolts







https://www.bunnings.co.nz/ramset-dynabolt-hex-316-stainless-steel-m12-x-60mm_p00194323







these are more removable than the standard dynabolt, as long as the hole is a fair bit deeper than the bolt for the end cone to drop off when unscrewing.












716 posts

Ultimate Geek

Subscriber

  # 1689494 15-Dec-2016 15:37
One person supports this post
Send private message

greenbone:

im wanting to mount a steel (heavy) basketball post to a concrete footing





the post mounts by way of a steel bottom plate with 4x m12 holes





it needs to be removable, so anything like a dynabolt / stud anchor wont work





it needs to be flush at ground level when the post is removed (nothing for kids to run into) so embedding the threaded end in the concrete wont work





ive looked at ramset drop anchors, only size that is close is m10 and it embed about 50mm into the footing, not big or deep enough to hold





any ideas? something like a m12 female threaded socket, 200mm or longer. ive googled hard and come up empty



What you want is a Ramset Dynabolt 12mm drop in anchor

1384 posts

Uber Geek

Subscriber

  # 1689537 15-Dec-2016 16:12
Send private message

greenbone:



im wanting to mount a steel (heavy) basketball post to a concrete footing







the post mounts by way of a steel bottom plate with 4x m12 holes







it needs to be removable, so anything like a dynabolt / stud anchor wont work







it needs to be flush at ground level when the post is removed (nothing for kids to run into) so embedding the threaded end in the concrete wont work







ive looked at ramset drop anchors, only size that is close is m10 and it embed about 50mm into the footing, not big or deep enough to hold







any ideas? something like a m12 female threaded socket, 200mm or longer. ive googled hard and come up empty









did the ramset idea work? Was it big enough?







alternatively, take a solid steel tube, get it cored out with a thread and concrete it into the ground. if it is too hard to get those deep enough, weld them on a plate, bury the entire plate. Make sure no crud gets in the thread when the post is removed.







This guy has a similar idea - but using sticking up bolts. Same adea but either thread nuts into the back of the plate or make a long female nut welded to the plate



https://www.youtube.com/watch?v=mrck-thMm8A













nunz

2213 posts

Uber Geek


1846 posts

Uber Geek


  # 1689639 15-Dec-2016 16:54
One person supports this post
Send private message

I can't recommend Coastal Fasteners highly enough. The guys down there know their stuff and i'm sure if you called, you could talk them through the situation and they'll know what you need to do.


883 posts

Ultimate Geek

Trusted

  # 1689679 15-Dec-2016 18:46
Send private message

Loxins







Overarching undertones
3840 posts

Uber Geek

Subscriber

  # 1690792 16-Dec-2016 02:19
Send private message

Brunzy: Loxins







Not particularly helpful. Couldn't you have at least have added a few more words to present a meaningful post?


883 posts

Ultimate Geek

Trusted

  # 1690810 16-Dec-2016 07:40
Send private message

https://www.blackwoods.com.au/part/03754609/anchor-masonry-loxin-rlm10-10mm

There you go, sits flush when removed.

Don't you have google ? ;-))

716 posts

Ultimate Geek

Subscriber

  # 1690866 16-Dec-2016 09:02
Send private message

eracode:



Brunzy: Loxins







Not particularly helpful. Couldn't you have at least have added a few more words to present a meaningful post?





Brunzy's one word post pretty much covers it!.. Loxin anchors are a - maybe better - option for OP.



Another flush, threaded anchor, but pressure from threading the bolt in does the seating.



For non structural (stock yard rails) we just use the cheap drop-in anchors:
- because they come in big boxes (really cheap)
- they're not super long (drilling holes in concrete is a slow job)
- can set them without stuffing around and threading each one in - theoretically requires a 'special tool' to set (we use a sledgie and a steel drive)
- they're strong (rated medium duty when correctly set)



If OP correctly uses ANY of the anchors pointed to in this thread the basketball hoop will NEVER come out.

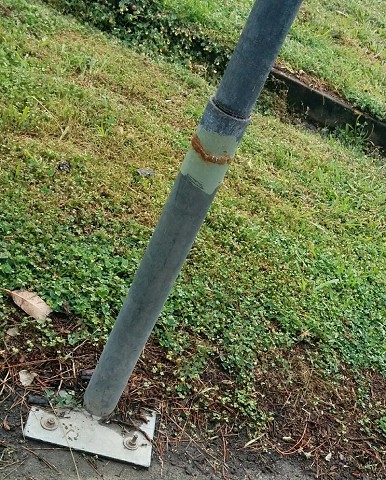

I mounted a Netball hoop for my kids 5 years ago, with what I had at hand - some 5mm plate, M8 drop in anchors and threaded rod with nuts.
The pole's galv pipe & I welded in a threaded sleeve to allow different heights and netball/basketball hoops (turns out there's official kids & adult heights)



It's stood up to 3 boys climbing & swinging on the top, neighbour backing into it, endless kids swinging around it at high speed.






175 posts

Master Geek


  # 1691063 16-Dec-2016 13:13
Send private message

appreciate all the knowledgeable answers, thanks. ill post a few pics


4204 posts

Uber Geek


  # 1691207 16-Dec-2016 19:22
Send private message

Weighing in late.... Ramset Tru-Bolts. Bloody awesome and hold the same as a dynabolt. But they are removable, unlike a dynabolt.

2129 posts

Uber Geek


  # 1691258 16-Dec-2016 20:56
Send private message

A drop in anchor might be the go, a Chemset one might be better than a standard one.
The major issue will be crap getting into it when there's nothing there.
