#290755 2-Dec-2021 10:32
Send private message

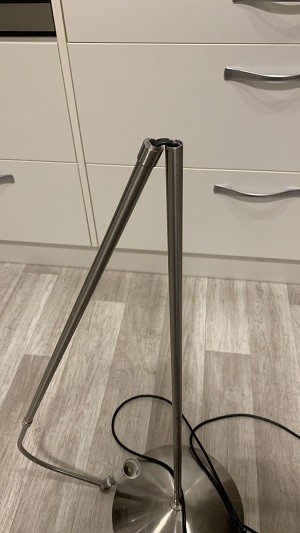

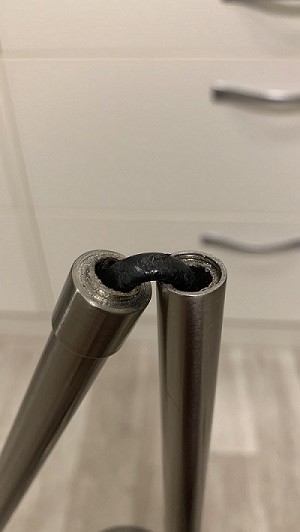

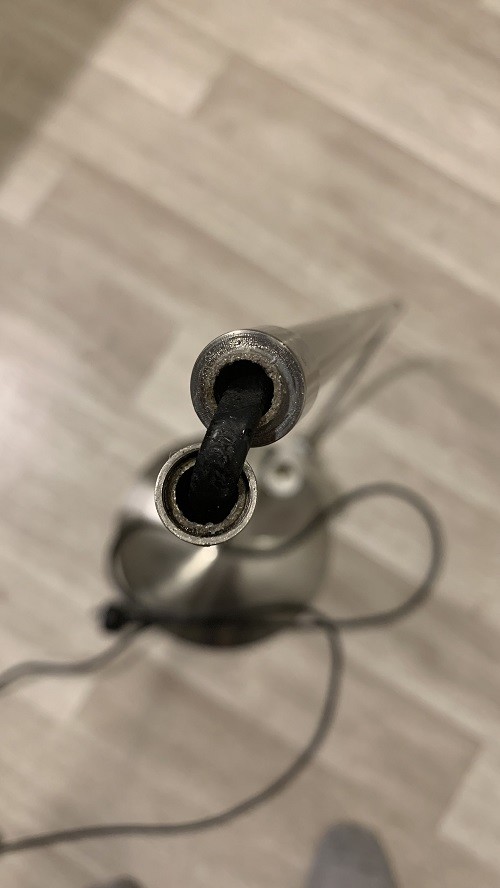

Moved house recently and clumsily held (and carried sideways) the floor lamp at the point where it snapped, rather than holding it at the base. Is this cheap to fix you reckon?








Create new topic
chevrolux
4962 posts

Uber Geek
Inactive user


  #2823074 2-Dec-2021 10:48
Send private message

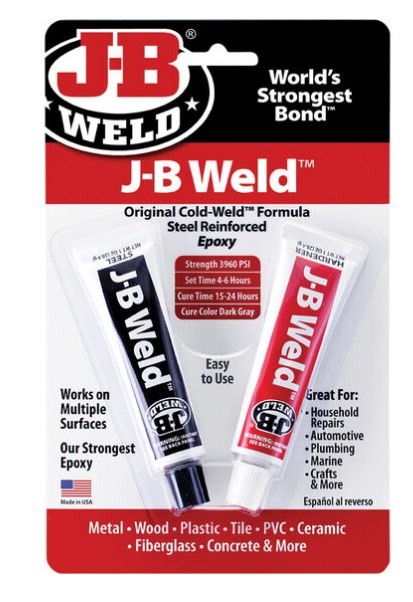

I'd just use JB Weld, or some other similar epoxy. Should be more than strong enough, and because it still has that little rebate, it should locate itself back together without much stress.




dimsim
848 posts

Ultimate Geek

Trusted
Lifetime subscriber

  #2823081 2-Dec-2021 10:54
Send private message

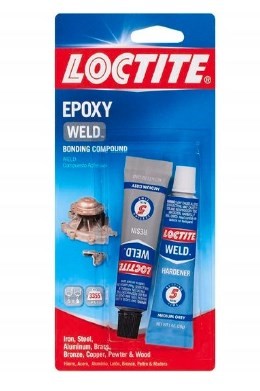

with the cable through the middle, any repair requiring heat is out of the question. Maybe something like JB Weld or other Epoxy based metal bonding solution.



Supercheap Auto $20





Bunnings $18




  #2823097 2-Dec-2021 10:57
Send private message

Thanks for the feedback so far guys. What (clamping) tool do you recommend I use to hold it together while it sets?




neb

neb
11294 posts

Uber Geek

Trusted
Lifetime subscriber

  #2823442 2-Dec-2021 22:50
Send private message

Not sure if you'd need to clamp it, just hold it firmly in place, e.g by putting a clamp across the top part down by the join and then hanging weights off the clamp, e.g. some bricks on strings, to push it down into the base.





Also scrape out as much of the existing epoxy(?) as possible and rough the surfaces to be joined up a bit to give the glue something to attach to.

Bung
6496 posts

Uber Geek

Subscriber

  #2823449 3-Dec-2021 00:36
Send private message

I don't fancy the chances of just epoxy being strong enough. I had a similar lamp where the join was a short threaded tube that screwed into both upper and lower tubes. When that broke I didn't have a replacement but was able to shove a length of alloy tubing salvaged from an old tv aerial into both sides. I would try to find some tubing that would fit inside the stand while allowing the cable to fit to reinforce the join.

neb

neb
11294 posts

Uber Geek

Trusted
Lifetime subscriber

  #2823451 3-Dec-2021 00:42
Send private message

Not sure if you can get tubing in there since it's mostly filled up with cable, but what about a steel rod or bar pushed in next to the cable and epoxied to the side walls?





Mind you at some point it's going to be cheaper and easier to just get a new lamp...

eracode
Smpl Mnmlst
8874 posts

Uber Geek

ID Verified
Trusted
Subscriber

  #2823457 3-Dec-2021 04:52
Send private message

Bung: I don't fancy the chances of just epoxy being strong enough. I had a similar lamp where the join was a short threaded tube that screwed into both upper and lower tubes. When that broke I didn't have a replacement but was able to shove a length of alloy tubing salvaged from an old tv aerial into both sides. I would try to find some tubing that would fit inside the stand while allowing the cable to fit to reinforce the join.



i agree with the epoxy probably not being strong enough on its own. An insert would be good but if using a tube, you’d need to remove the cable, glue the insert in, then re-thread the cable. If you can remove the power plug and pull the cable up out of the lower half of the stand tube, this method may be not too much of a fiddle. Use the ‘5+5 cm aluminium tube’ idea below.



However if removing the cable is not possible, maybe you could find some aluminium tube at Bunnings or M10 - with external diameter the same as (or even very slightly smaller than) the internal diameter of the lamp tube. Cut a length of say 10 cm then cut that in half lengthwise.



The idea is to make two internal splints. Glue each half into the lower part of the lamp tube to depth of 5 cm (i.e.5 cm remaining exposed) with the cable remaining in place in the centre of two aluminium halves, and let the epoxy cure overnight. Then glue the top part of the tube down over the exposed splints.



You probably wouldn’t need to clamp this at all - if it’s a snug fit it should be self-supporting while second lot of epoxy cures.



This version depends on whether you can get enough slack in the cable exposed at the break to get the two parts of the lamp tube far enough apart to get the insert pieces in place. You might be able to release the cable at base of the lamp.





Sometimes I just sit and think. Other times I just sit.






Trade NZ and US shares and funds with Sharesies (affiliate link).
eracode
Smpl Mnmlst
8874 posts

Uber Geek

ID Verified
Trusted
Subscriber

  #2823460 3-Dec-2021 06:27
Send private message

Thought of a possibly much easier way. Epoxy the two halves back together. Get aluminium tube with internal diameter same as the external diameter of lamp tube.



Cut a 10 cm length and cut lengthwise into two splints and epoxy them on the outside of the join to reinforce the join. Temporarily hold the splints in place with hose clamps while the epoxy cures.



It looks like there’s two different external diameters at the join. Work with the larger one - and where it’s narrower, let epoxy fill the gap.



Mask tape and spray paint the splints black to match - or buy a black test pot from Resene and paint by hand.





Sometimes I just sit and think. Other times I just sit.


  #2823859 3-Dec-2021 15:47
Send private message

Thank you all for the advice so far. I'll see what I can do this weekend and post the results. Though, most likely won't be done until next week. There's definitely enough cable slack to insert something into the pipe.
