3D scan or clone object for 3D printing

Forums › Home Workshop DIY › 3D scan or clone object for 3D printing

01EG

612 posts

Ultimate Geek
+1 received by user: 36

#310783 21-Nov-2023 14:31

Hi, is anyone in Wellington can do 3D scan/clone object into a file that it can be 3D printed? Or might be know a service? object size is 110mm x 110mm x 45mm

Thanks

frankv

5705 posts

Uber Geek
+1 received by user: 3666

Lifetime subscriber

#3162375 22-Nov-2023 12:08

There are photogrammetry apps that can do this kind of stuff

https://www.3dsourced.com/3d-software/best-photogrammetry-software/

01EG

612 posts

Ultimate Geek
+1 received by user: 36

#3162378 22-Nov-2023 12:14

frankv:

There are photogrammetry apps that can do this kind of stuff

https://www.3dsourced.com/3d-software/best-photogrammetry-software/

Ok, thanks, will have a look, do I need any hardware tool/s?

frankv

5705 posts

Uber Geek
+1 received by user: 3666

Lifetime subscriber

#3162388 22-Nov-2023 13:08

I haven't played with photogrammetry for a while.

I've just tried the Kiri app (free from Google App Store, contains in-app purchases). You take up to 70 photos of your object from many different angles and positions. Then you upload the photos to their Cloud server, which crunches the numbers and after a few minutes, and you can review it and send a link to your email account. You can then download the results in a zip file. You would then almost certainly need to load it into a mesh editor (e.g. Meshmixer -- free, Windows platform), clean it up (which may take some time), and save it as a .STL for slicing and 3d printing.

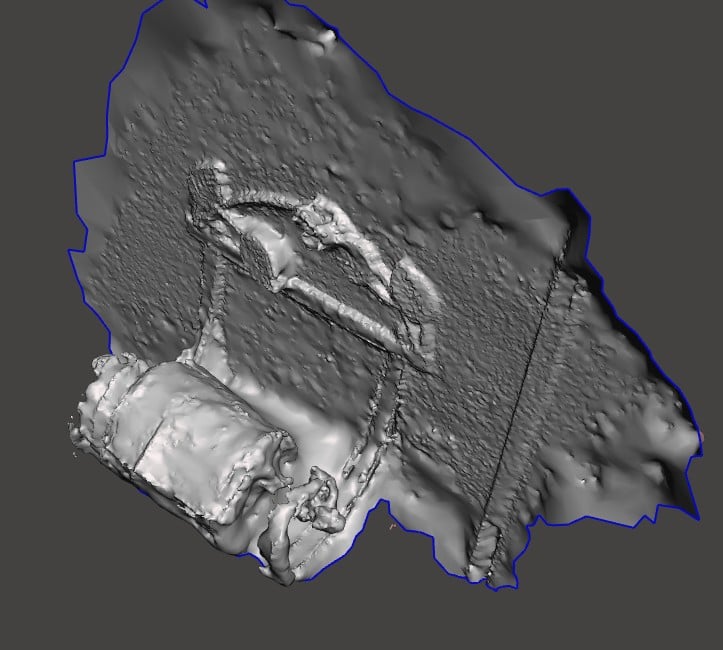

Screenshot from Meshmixer...
