My wife and I live in a retirement village, so space is limited. The picture below is our Christmas tree which is about 900mm tall.
It is lit by 4 sets of seed lights, each powered by 3x AA batteries - a total of 12 batteries. Each string has it's own switch.

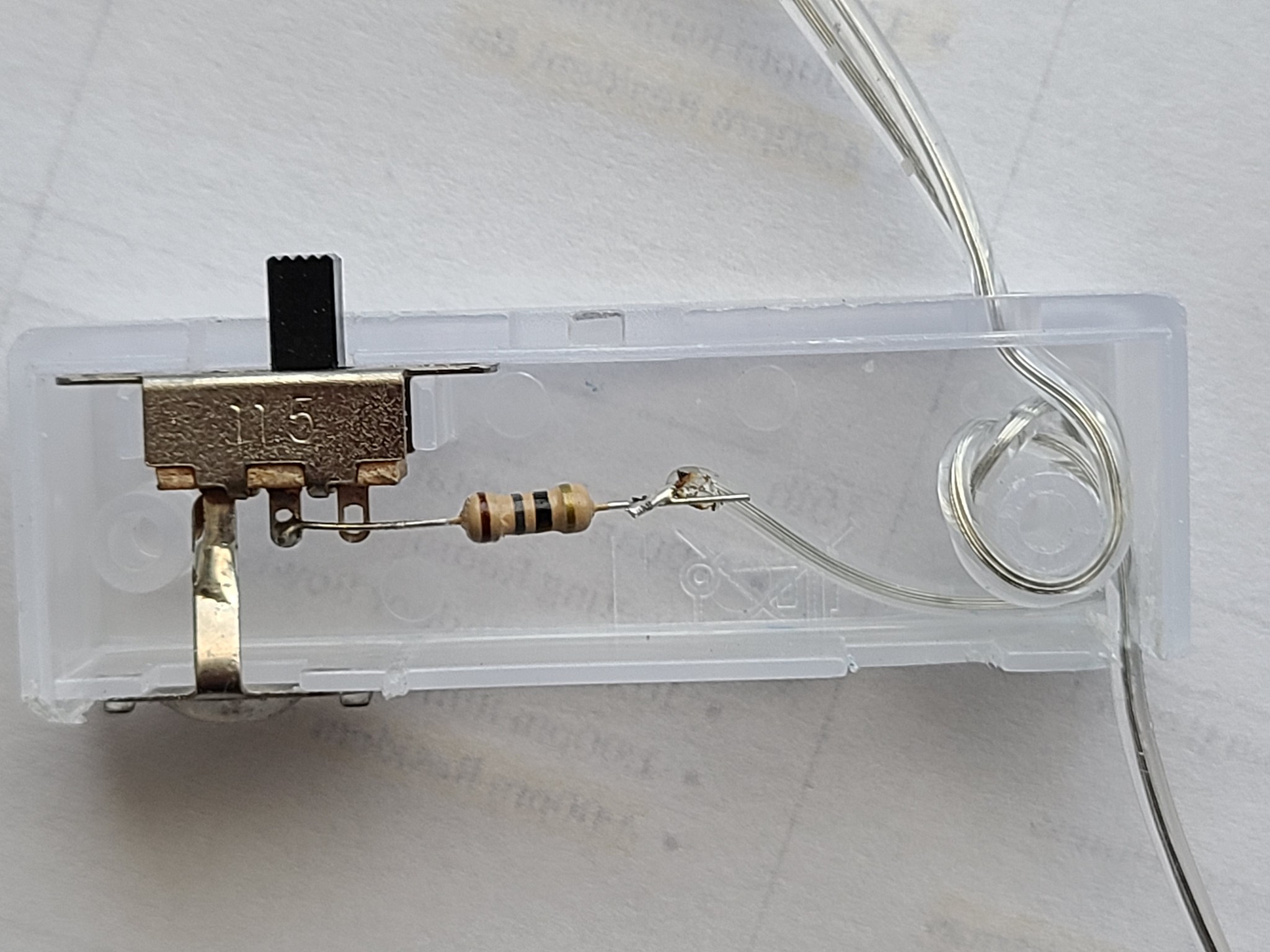

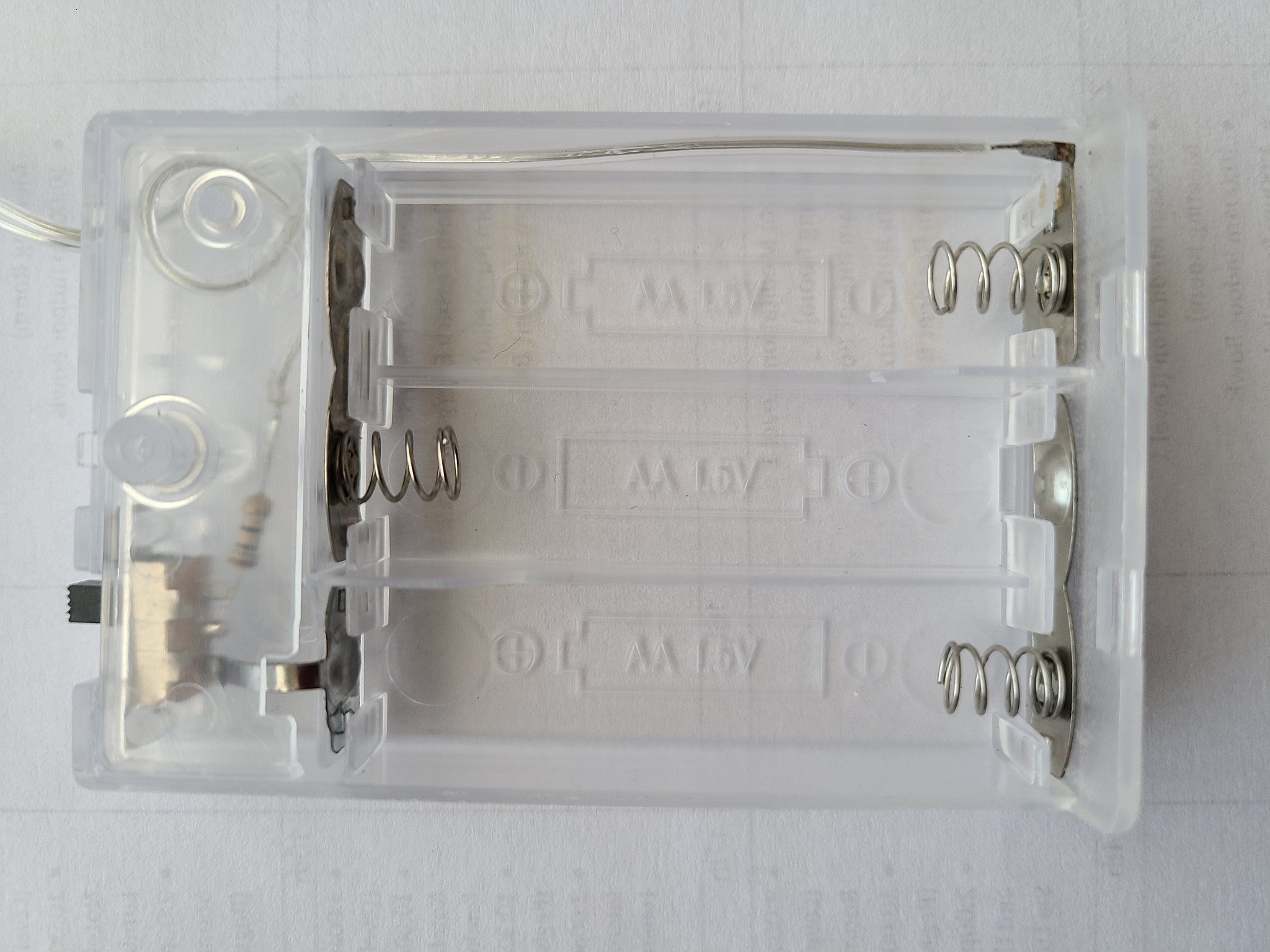

Pictured is an original battery holder and the holder cut smaller.

I would like to replace these with a low voltage power supply and I have one that is 4.5V / 500mA.
I have basic understanding of circuit diagrams and if it was just one string, I am quite capable of connecting it.

My question is can I connect the 4 strings in parallel?
The current drawn by each set is very minimal, so a power supply at 500mA would appear to be almost overkill.
If it is doable, what would the wiring look like. i.e. do I wire the 4 cut down battery holders in parallel or do I just use one holder and wire the seed lights in parallel to that holder.

I hope that makes sense.

Thanks in advance

Graeme








Create new topic
mkissin
389 posts

Ultimate Geek

ID Verified

  #3179045 8-Jan-2024 14:57
Send private message

Yeah, by the looks of that you can just put the 4 strings in parallel with a 4.5V power supply. Just make sure that each parallel string has its own ballast resistor as it currently does.



You may get some brightness differences, but they should be small.




FieldMouse

94 posts

Master Geek


  #3179185 8-Jan-2024 21:42
Send private message

Thanks heaps






trig42
5811 posts

Uber Geek

ID Verified

  #3179217 9-Jan-2024 06:54
Send private message

I'd look at running it off USB - 5V won't kill those lights.



Though, if you already have a 4.5V power supply, go for it.




SATTV
1648 posts

Uber Geek

ID Verified

  #3179224 9-Jan-2024 07:57
Send private message

trig42:



I'd look at running it off USB - 5V won't kill those lights.



Though, if you already have a 4.5V power supply, go for it.





Convert to USB and use a cheap rechargeable power bank.









I know enough to be dangerous


frankv
5680 posts

Uber Geek

Lifetime subscriber

  #3179291 9-Jan-2024 10:04
Send private message

You can also buy battery eliminators from AliExpress e.g. https://www.aliexpress.com/item/1005005860055016.html You can get USB-powered or with a mains adapter. No soldering or other wiring.



Regarding the wiring...



Use red for +4.5V, black for ground.



If you're connecting to battery packs, Red goes to the + terminal of each battery pack (top left in the photo), black goes to - terminal of battery pack (bottom right)



If you're connecting to a cut-down battery pack, Red goes to the switch terminal, black goes to the loose wire that goes to the LEDs







You can set up a "star" configuration... run one pair of red and black wires from the power supply to each battery pack. Connect all reds together to the +4.5V supply. Connect all blacks together to the ground of the supply.



Or "daisy chain"... run one red and black pair from the power supply to the first battery pack, connected red-red, black-black to another pair of wires from this battery pack to the next, and so on.



Or any combination of star & daisy chain. So long as each battery pack is connected via one or more red wires to the +4.5V supply and via one or more black wires to the ground of the supply, you're good to go.



Daisy chain is probably easier, because you don't end up with a bundle of 5 wires (power supply plus each LED string) to connect together.






FieldMouse

94 posts

Master Geek


  #3179543 10-Jan-2024 09:25
Send private message

To Trig42
Thanks. I didn't think about using USB.

To Sattv
Power bank is a good thought



To Frankv
I am trying to eliminate the bulk of battery cases and just use the switch portion, which would be left permanently on.
One of the strings is a flashing light, so need to keep the electronics for that bit.
Your setup description helps.

Thanks to you all
