I have looked online but have confused myself as to what the numbers mean on the packaging label for screws.



For example (obviously I understand the 'mm' information).:



A) 10-8 x 100mm           <-- Presumably 10 signifies 10G. What does the 8 signify?



B) 10G x 50mm



C) 10G x 65mm TPI 10   <-- I understand TPI means 'Threads per Inch'



What does 10G mean?







One overseas web site (What size is a 10g screw?) says:



A 10 gauge screw is approximately 4.17 mm thick. This is a bit thicker than ⅛ inches, which is 3.175 mm. One of the most common sizes of screws, 10 gauge screws are used in a variety of applications, from light construction to home repair projects.



10 gauge screws are often used for fastening drywall, framing, and plywood, as well as for anchoring outdoor fixtures such as mailboxes and swings. The head of the screw measures at 4.93 mm and the thread diameter can range from 4.5 mm to 4.7 mm.

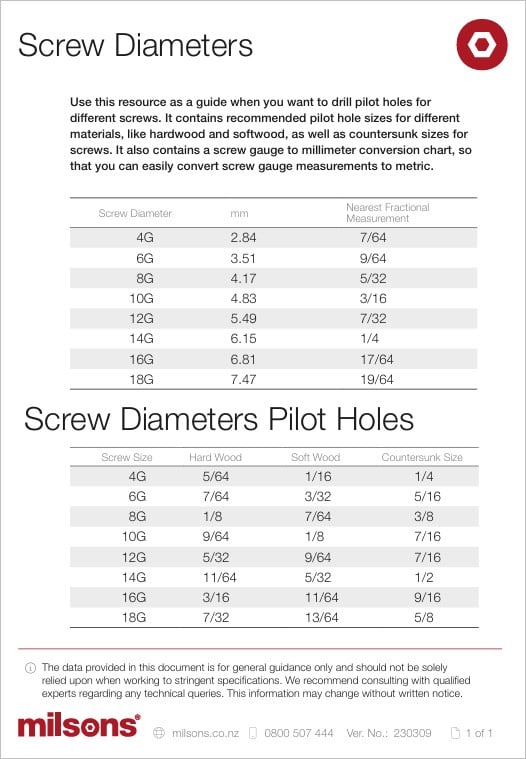

But this NZ site (Screw-Diameters-Pilot-Holes-230309.pdf) says:





If anyone knows of a good screw chart for New Zealand, a link would be useful.





PC: Dell Inspiron 16 5640 (Windows 11 Home), Dell Inspiron 7591 2n1 (Windows 11 Pro), HP ProBook 470G1 (Windows 10 Pro), Intel NUC7I5BNH (Zorin)
Net: Grandstream 1 x GWN7062 Router, 1 x GWN7665 Access Point
Storage: Synology DS216play NAS, 2 x 6TB
Media: 3 x Amazon FireTV. Echo, Dot, Spot
TV: 2 x Samsung H6400 55" LED TV, Panasonic TH-P50G10Z 50" Plasma TV
Mobile: Samsung Galaxy A52 5G
Wearable: Gear S3 Frontier


Create new topic
eracode
Smpl Mnmlst
9455 posts

Uber Geek
+1 received by user: 6338

ID Verified
Trusted
Lifetime subscriber

  #3313769 28-Nov-2024 11:51
Send private message

10G = 10 gauge, which refs the diameter of the screw.



Just found this Bunnings page. Haven’t read it right through yet but looks very good.



Googled and found this which indicates that 10-8 means 10 gauge with 8 threads per inch. I’ve used those screws without realising what the 8 meant.





Sometimes I just sit and think. Other times I just sit.




richms
29251 posts

Uber Geek
+1 received by user: 10361

Trusted
Lifetime subscriber

  #3313775 28-Nov-2024 12:07
Send private message

Wood screw gauges are the stupidest thing ever and I have no idea why local fastener companies persist with them. Almost as stupid as selling stainless outdoor rated "chipboard" screws.



The numbering goes the wrong way to be a gauge measurement and there isn't the usual change in area that gauge represents in them.



The wonderful thing with anything that uses gauge is the wide range of tables that you can choose from and still be wrong. Particularly wire diameters where many people will apply the AWG measurements to any metal and then act surprised when plate gauges are different numbers to them.





Richard rich.ms

mdf

mdf
mdf
3569 posts

Uber Geek
+1 received by user: 1527

Trusted
Lifetime subscriber

  #3313780 28-Nov-2024 12:18
Send private message

richms:



Wood screw gauges are the stupidest thing ever...





I agree, but just want to give an honourable mention to nail gauges in the stupid contest.




alisam

916 posts

Ultimate Geek
+1 received by user: 89


  #3313785 28-Nov-2024 12:43
Send private message

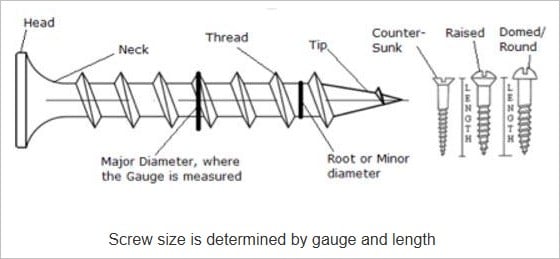

Came across this diagram.



So when 4G = Diameter = 2.9mm [Bunnings] (or 2.84mm in the NZ chart above). Then the 'Diameter' is also referred to as the 'Major Diameter'. Do we all agree?







PC: Dell Inspiron 16 5640 (Windows 11 Home), Dell Inspiron 7591 2n1 (Windows 11 Pro), HP ProBook 470G1 (Windows 10 Pro), Intel NUC7I5BNH (Zorin)
Net: Grandstream 1 x GWN7062 Router, 1 x GWN7665 Access Point
Storage: Synology DS216play NAS, 2 x 6TB
Media: 3 x Amazon FireTV. Echo, Dot, Spot
TV: 2 x Samsung H6400 55" LED TV, Panasonic TH-P50G10Z 50" Plasma TV
Mobile: Samsung Galaxy A52 5G
Wearable: Gear S3 Frontier


neb

neb
11294 posts

Uber Geek
+1 received by user: 10018

Trusted
Lifetime subscriber

  #3313868 28-Nov-2024 17:23
Send private message

Does it matter much though?  For bolts where you need to get the right diameter and thread pitch it's important, but for wood screws the only two things I've ever needed to check are "about the right length" and "SS/not SS".
